Application:
This multi-lane packaging machine is suitable for all kinds of paste, and viscous liquid packaging, such as soy sauce, ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, shampoo, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Included Date Printer: Integrated for printing dates on packages.

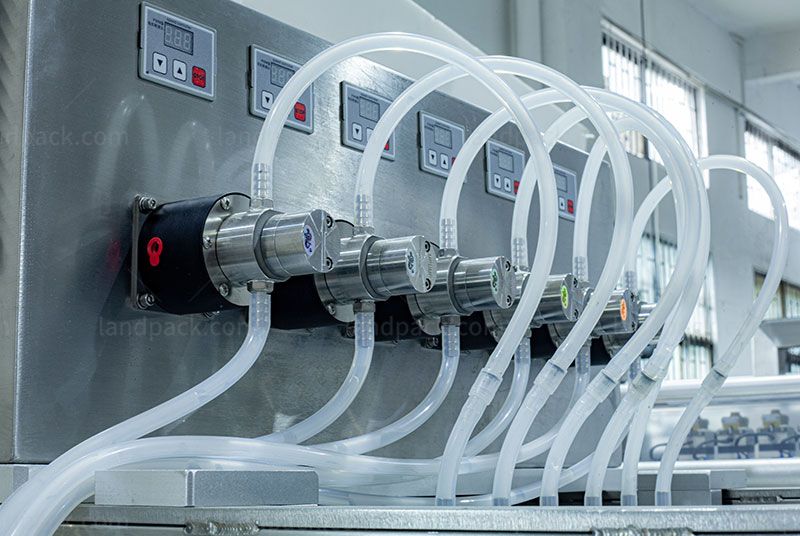

2. Magnetic Pump: Ideal for low-viscous corrosive liquids and slightly foamy liquids.

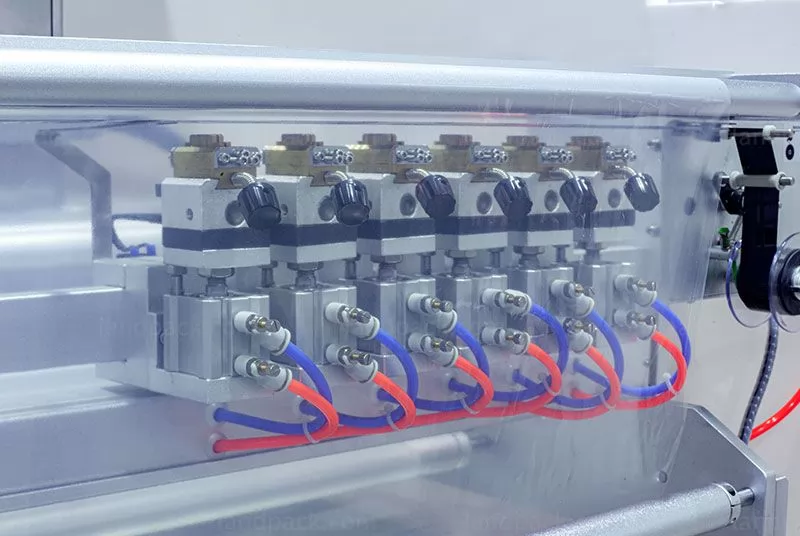

3. Servo Motor Control: Ensures precise sealing and accurate bag making.
4. High Production Capacity: Capable of producing multiple bags simultaneously.
Workflow:
1. Film feeding and bag making.
2. Magnetic pump feeding and metering.
3. Coding machine printing date.
4. Stable pulling film to cut exact position.
5. Finished product output
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-10 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
