Application:

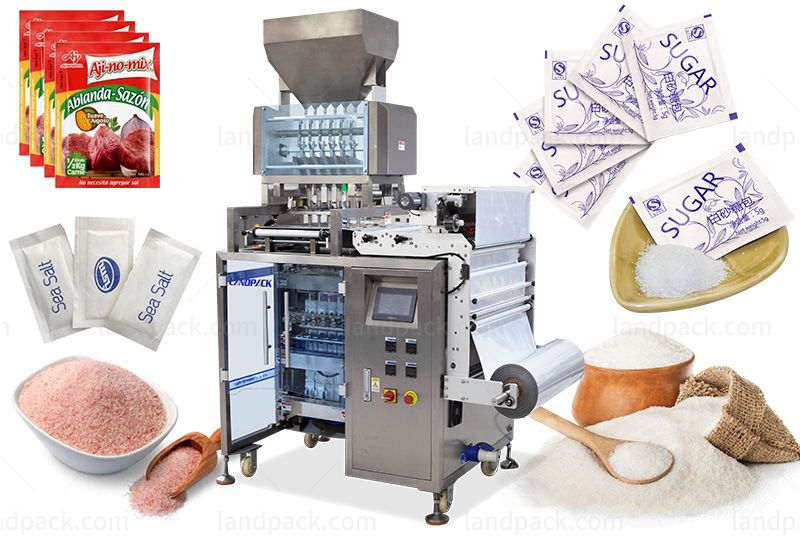

Automatic multi track fine granule 3/4 sided sealing sachet filling machine is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee, seeds, spice, seasoning, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Advanced performance, high power, low noise, compact structure, operates steadily, easy to maintain, and has a long life span.
2. With a high degree of automation, the machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, dotted line cutting, and transverse cutting to outputting finished sachets.

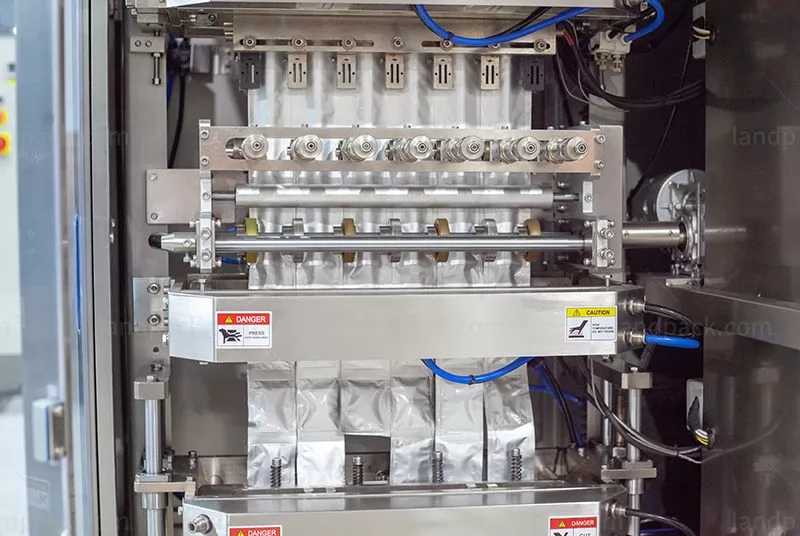

3. High precision whole rolling type heat sealing rollers are adopted as sealing mold, 4 side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.
4. The photoelectric tracking system is adopted to ensure correct printing and with an automatic counting function.
5. Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE, etc.
| Model | LD480K | LD720K | LD960K |
| Track Number | 4-6Track | 4-10Track | 4-12Track |
| Filling Method | 1. Volumetric cup; 2. Weigher | ||
| Capacity | Max.35 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
