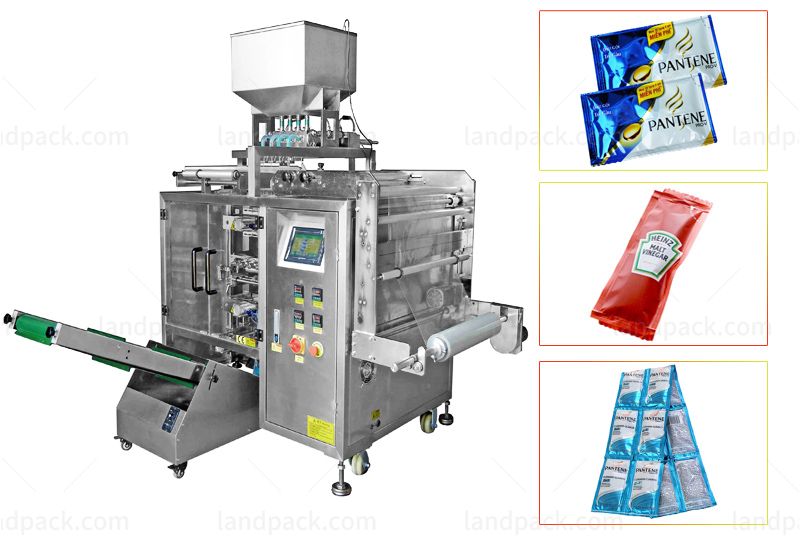

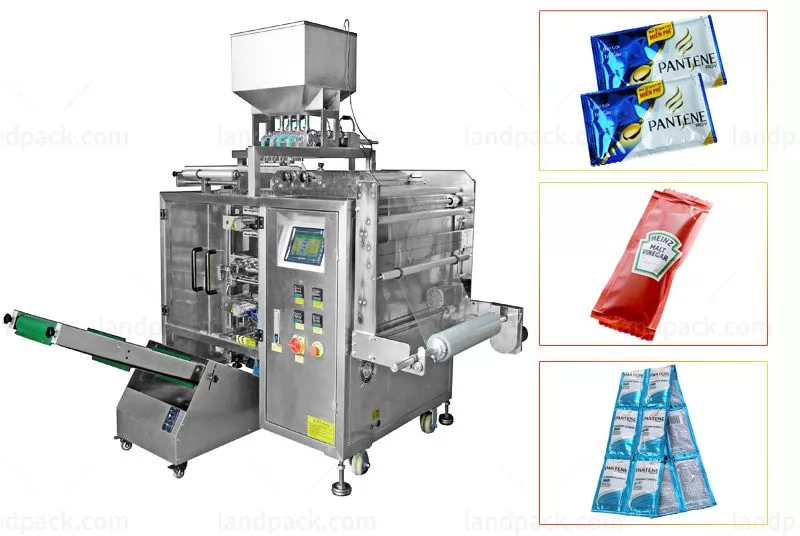

Multi Track Side Sealing Bag Liquid Sachet Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for many kinds of liquid products, such as shampoo, ketchup, honey, sauce, oil, paste, ice candy, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi Track Side Sealing Bag Liquid Sachet Packing Machine

Multi lanes machine can produce multi lanes bags at same time.

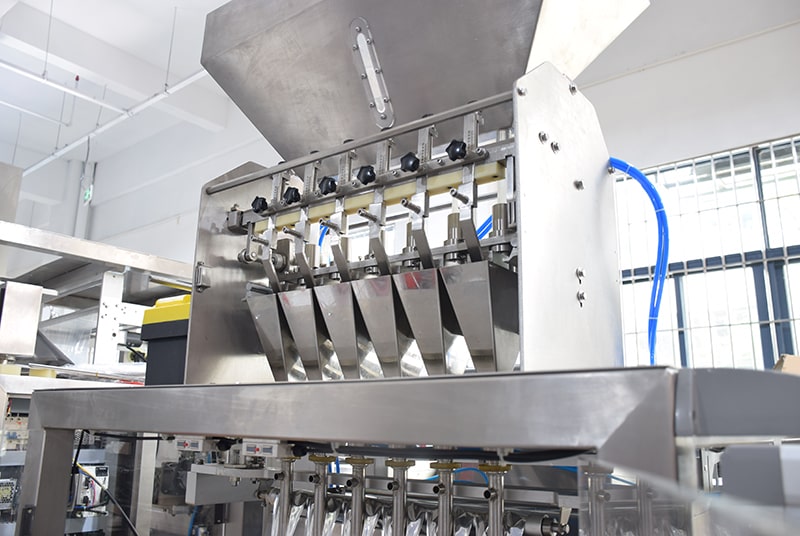

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

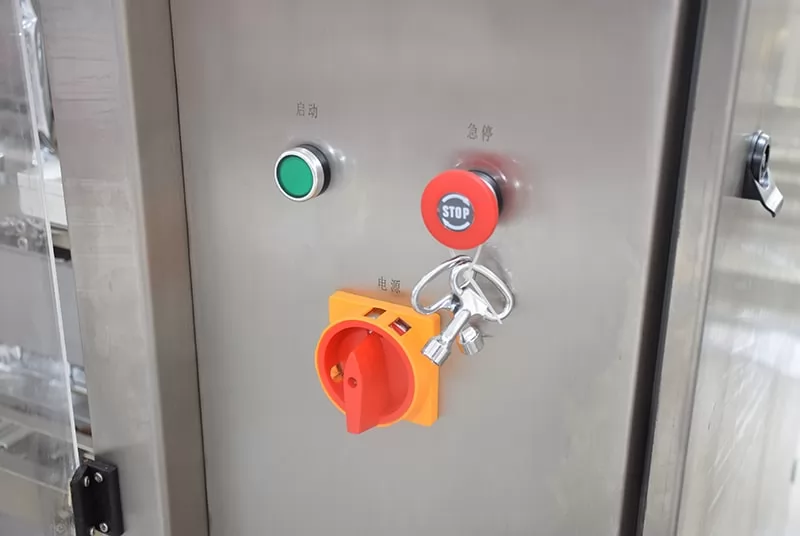

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

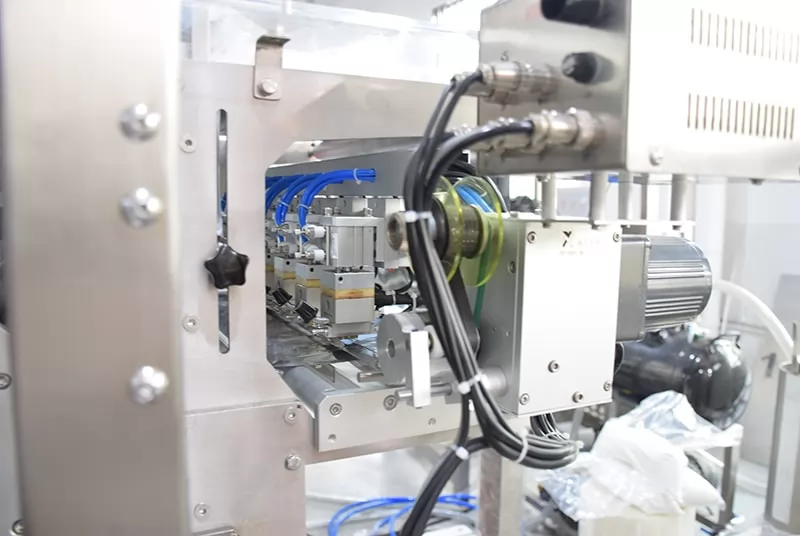

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

Model

LD-480YLD-720YLD-960Y
Track Number4~6 Track4~10 Track4~12 Track
Filling Method1.Piston pump;   2.Peristaltic Pump
CapacityMax.40 cycle/min
Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm;0.07-0.1mmMax.720mm;0.07-0.1mmMax.960mm;0.07-0.1mm
Sealing Type4 sides sealing4 sides sealing4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg


After receiving your inquiry,We will send you the quotation as soon as possible.
