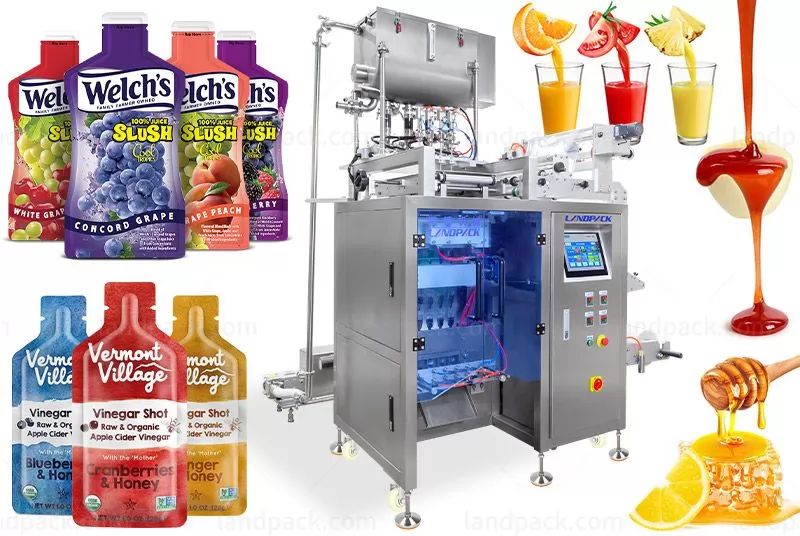

Multi Lanes Shaped Pouch Sachet Liquid Filling Packing Machine With Heating Stiring Device

  • Application
  • Description
  • Parameter
  • Video

Application:
Widely applicable for food, pharmaceutical, and chemical liquid products, this machine is ideal for packaging honey, ketchup, sauces, flavorings, pastes, shampoo, creams, body wash, and more. It ensures efficient and precise packaging for various liquid and semi-liquid items.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: liquid sachet packing machine

1. Fully Automatic Operation: Streamlines feeding, dosing, and filling of liquid into irregular sachets, ensuring efficiency and consistency.

2. Rotor Pump Feeding: Capable of automatically handling sticky liquids, making it suitable for diverse liquid materials.

3. Ceramic Pump Filling: Provides precise measurement with high accuracy, ideal for maintaining product quality standards.

4. Customizable Design: Tailored to meet customers' personalized requirements, offering flexibility for unique packaging needs.

5. Efficient Production: Combines advanced technology to maximize productivity and minimize material waste.

6. User-Friendly Features: Simplifies operation and maintenance for seamless integration into production lines.

Workflow:

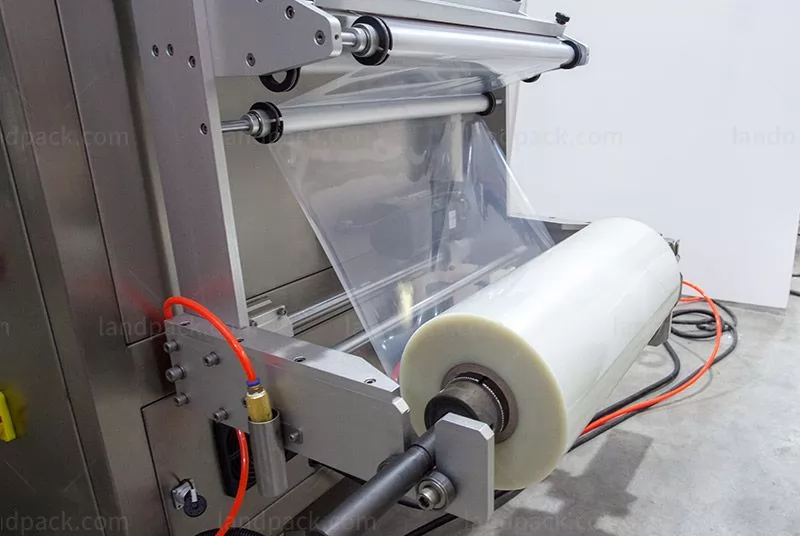

1. Automatic Film Pulling
2. Automatic Ribbon Code Printer
3. Stirring and Thermal Device

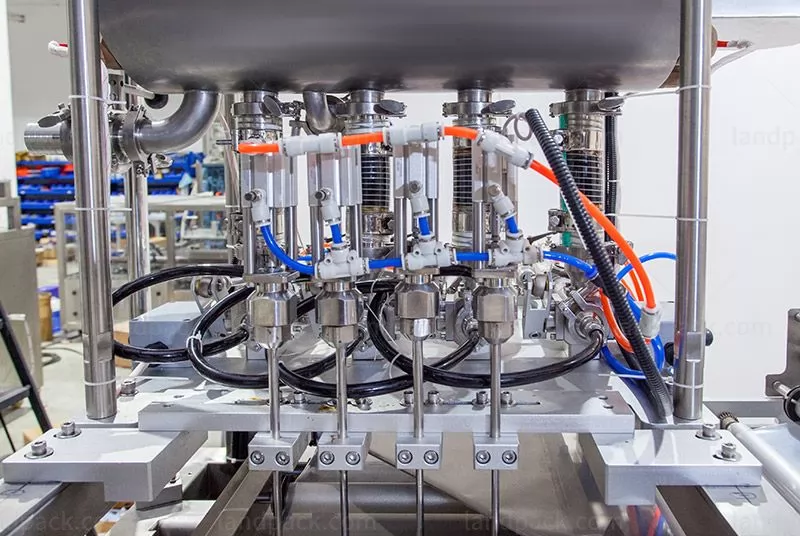

4. Ceramic Pump filling

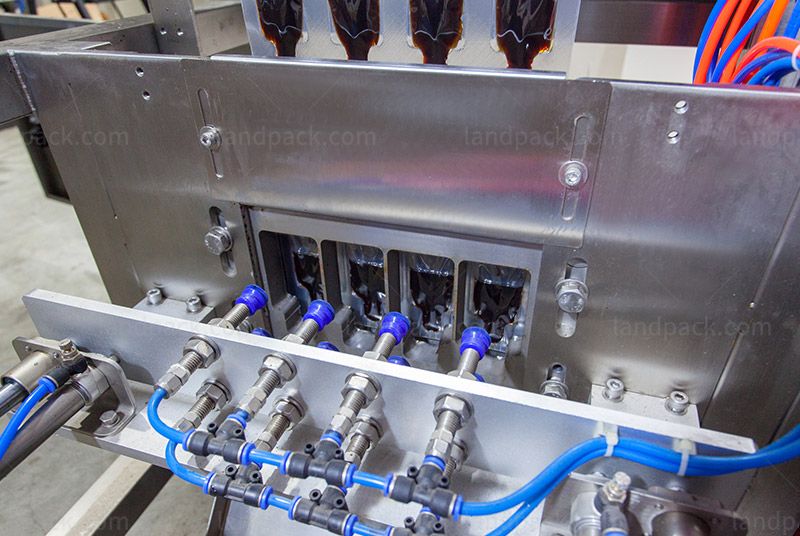

5. Mode Forming Shape
6. Automatic Sealing And Cutting
7. Waste Film Recycling Device

Model
LD-480Y
LD-720YLD-960Y
Track Number4-6 Track4-10 Track4-12 Track
Filling Method1. Piston pump; 2. Peristaltic Pump
Production capacityMax. 240 bags/minMax. 400 bags/minMax. 480 bags/min
Sachet SizeL: 45-120mm; W:  35-60mmL: 45-120mm; W:  35-90mmL: 45-120mm; W:  35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type
3/4 sides sealing
Cutting Type
1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power
0.8 mpa, 0.8 m³/min, 2.8kw
0.8 mpa, 0.8 m³/min, 4.1kw0.8 mpa, 0.8 m³/min, 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg
