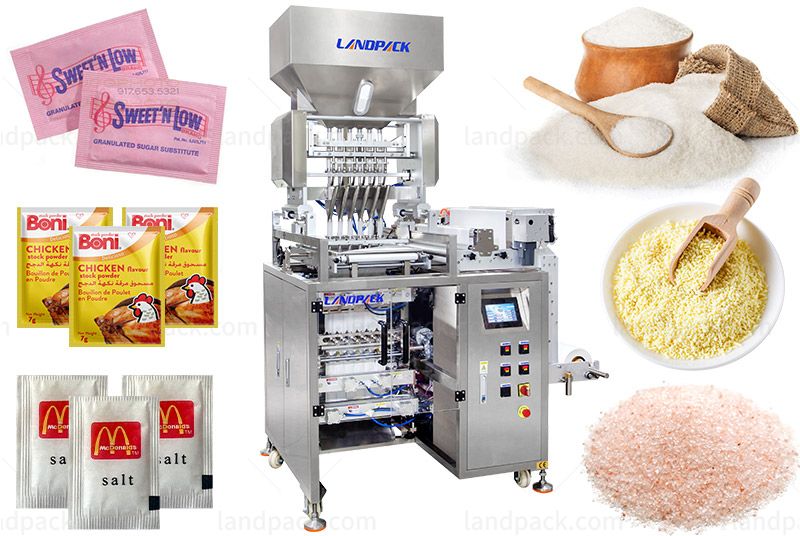

Multi Track Fine Granule 3/4-Side Sealed Sachet Bag Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
The automatic 3/4-Side Sealed Sachet Packing Machine is ideal for packing various fine granule products. Suitable for sugar, salt, small grains, coffee, seeds, spices, and more. Ensures precision and high efficiency.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:multi track packaging machines

1. High performance, low noise, compact structure, and long service life.

2. 90° rotatable film feeding mechanism for easy film replacement.

3. Fully automatic integration, completing sealing to finished product in one step.

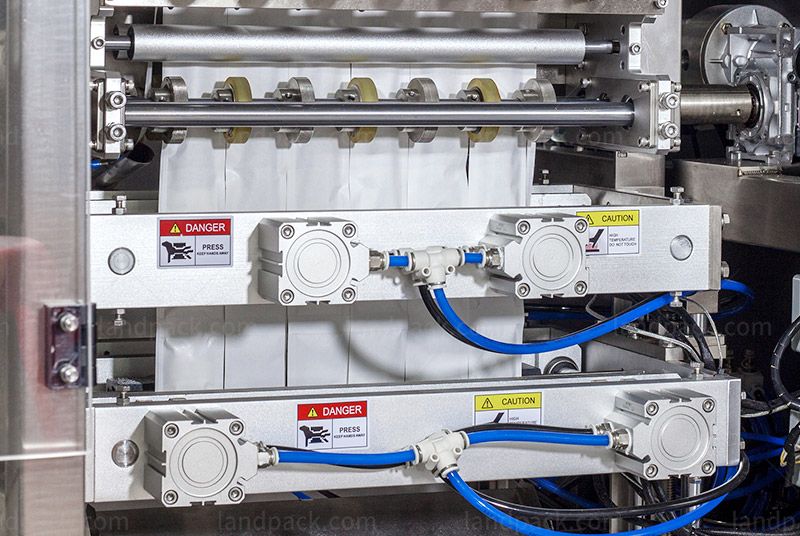

4. Four-sided sealing design with multiple production lanes for high efficiency.

5. Stepless pouch length adjustment without changing molds, easy operation.

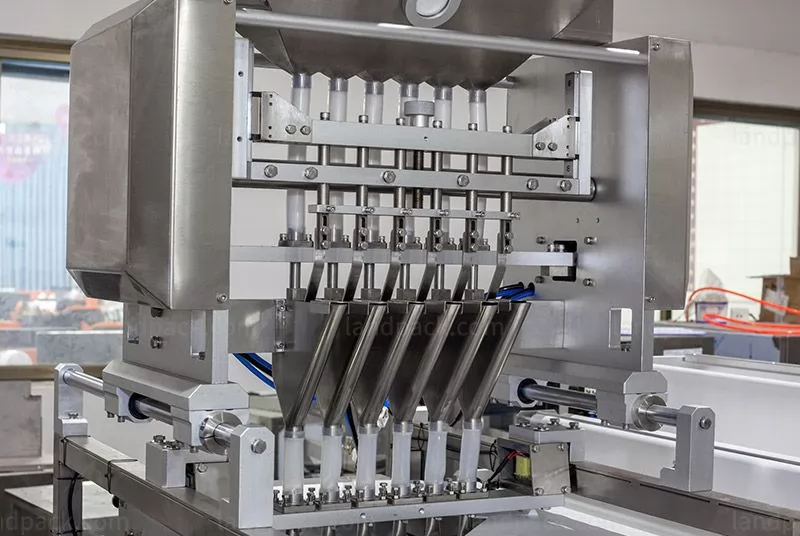

6. Accurate measurement, suitable for different granular materials.

7. Photoelectric tracking ensures accurate printing with an automatic counting function.

8. Automatic film correction for smooth and beautiful pouch shapes.

9. Compatible with various composite packaging films, precise temperature control (±1°C).

10. Customizable cutting styles and alarm functions to meet diverse requirements.

ModelLD480G
LD720GLD960G
Track Number4-6Track4-10Track4-12Track
Filling Method1. Volumetric cup; 2. Weigher
CapacityMax.35 cycles/min
Sachet SizeL: 45-120mm; W: 35-60mmL: 45-120mm; W: 35-90mmL: 45-120mm; W: 35-120mm
Film Width & ThicknessMax.480mm; 0.07-0.1mmMax.720mm; 0.07-0.1mmMax.960mm; 0.07-0.1mm
Sealing Type3/ 4 sides sealing3/ 4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power0.8 mpa, 0.8m³/min; 2.8kw0.8 mpa, 0.8m³/min; 4.1kw0.8 mpa, 0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg
