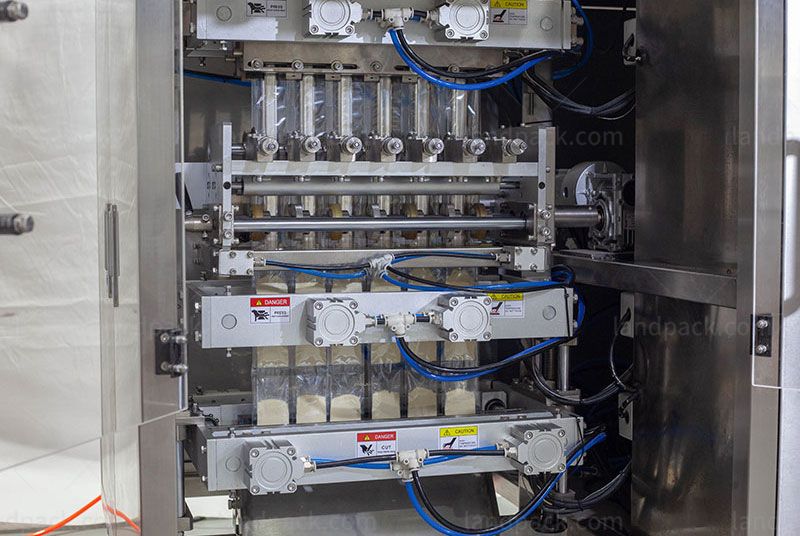

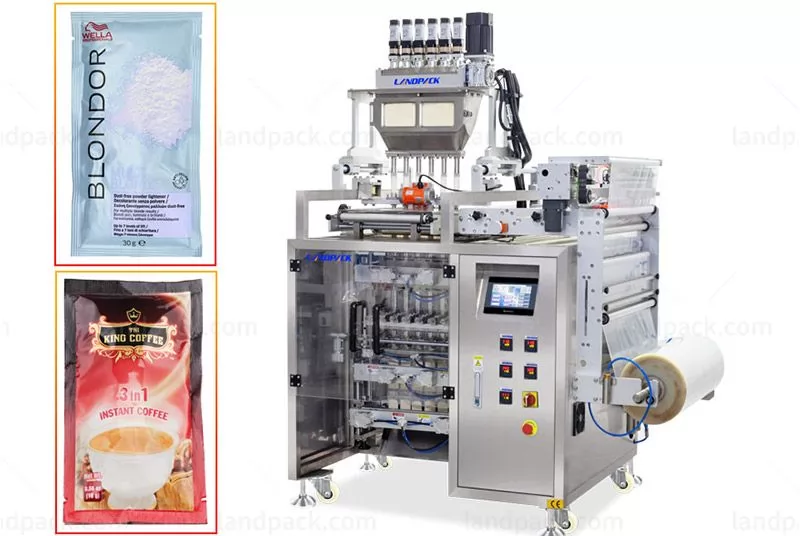

Multi Track Powder 4 Side Sealing Sachet Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Multi Track Powder 4 Side Sealing Sachet Packing Machine, it is suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as coffee powder, milk powder, soymilk powder, starch, drug, pulveres, and so on.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi Track Powder 4 Side Sealing Sachet Packing Machine

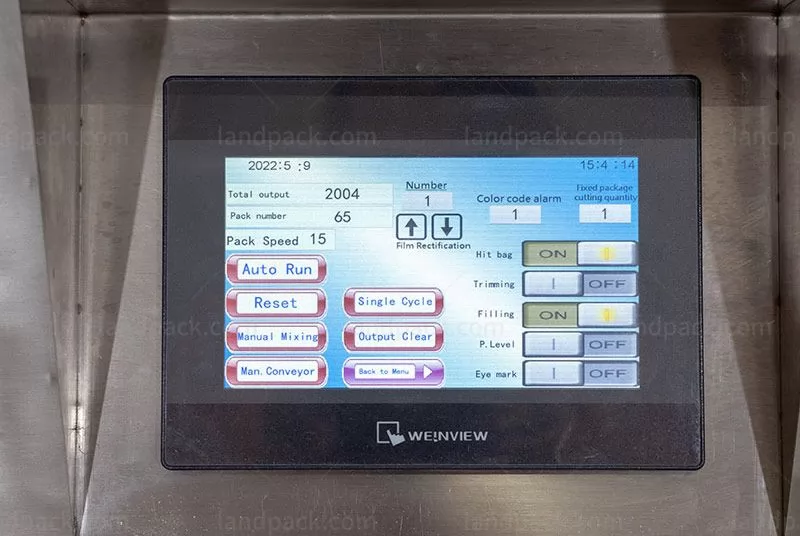

1. PLC control system, wide vision touch screen with English/Chinese interface;

2. State-of-art but simple design, easy to operate and maintain;

3. Automatically measuring, bags making, filling ,sealing, cutting, printing lot number and cutting easy tearing notches;

4. Continuous bag/bag across, easy cutting, hole ponching (if needed);

5. Suitable for film like Paper/ polyethylene, cellophane/ polyethylene, plated aluminum/ polyethylene, BOPP/ polyethylene, nylon/ polyethylene.

Model
LD-480F
LD-720F
LD-960F
GLD-1200F
Track Number
4-6 Track
4-8 Track
4-10 Track
4-12 Track
Filling Method

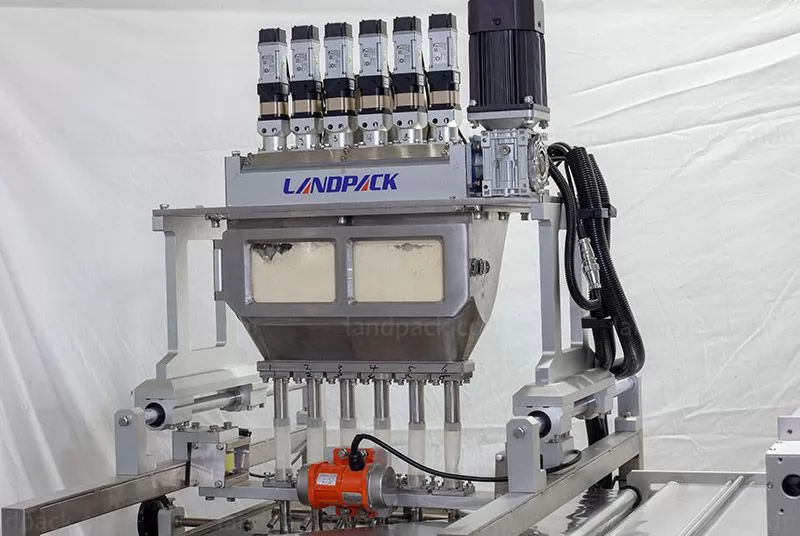

Auger  filling by servo motor
Capacity
20-40 bags/cut
Sachet Size
L:45--120mm;W:50-60mm
L:45--120mm;W:50-90mm
L:45--120mm;W:50-120mm
L:45--120mm;W:50-150mm
Film Width&Thinckness
Max.480mm;0.07-0.1mm
Max.720mm;0.07-0.1mm
Max.960mm;0.07-0.1mm
Max.1200mm;0.07-0.1mm
Sealing Ttype
4side sealing
Cutting Type
1.Straight cutting 2.Zig zag cutting  3.Continous cutting
Air&Power
0.8MPA 0.8m³/min;2.8kw
0.8MPA 0.8m³/min
4.1kw
0.8MPA 0.8m³/min
5.5kw
0.8MPA 0.8m³/min
6.5kw
DIM&WT
950*1470*1750mm
300kg
1153*1654*1750mm
400kg
1415*1686*2130mm
500kg
2220*2210*2600mm
800kg

After receiving your inquiry,We will send you the quotation as soon as possible.
