Application:

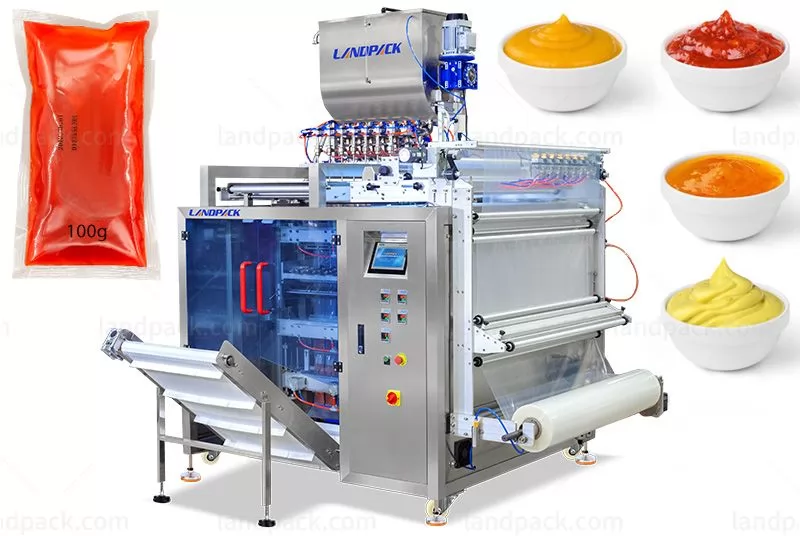

This multi track sachet liquid packaging machine is suitable for all kinds of paste, and viscous liquid packaging, such as ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, shampoo, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. The biggest multi lane packing machine which can run max roll film width 1200mm.
2. Multi heads Ribbon date printer to print date info on each lane.
3. Double layer material tank has the function of stirring and heating to ensure the sauce has better fluidity.

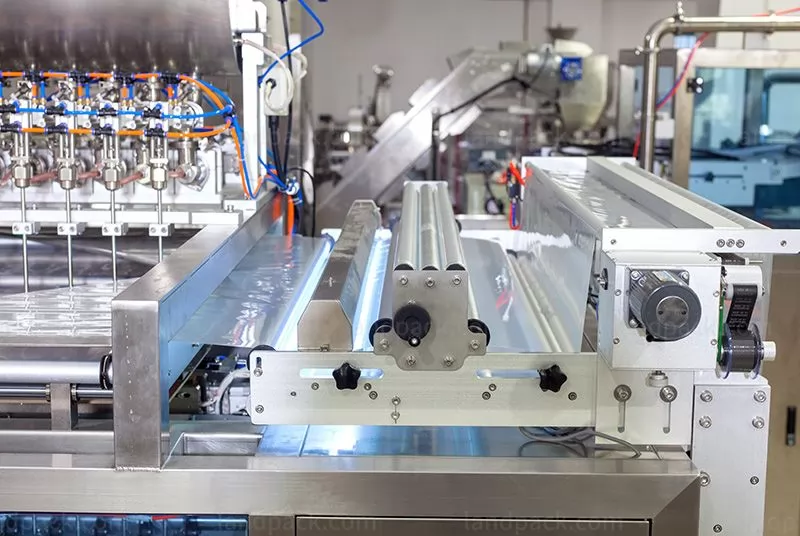

4. Stable pulling film to cut exact position.

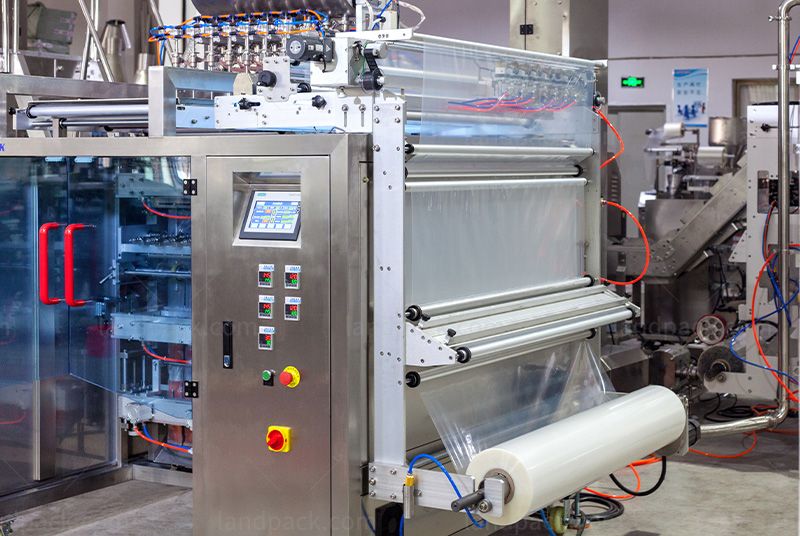

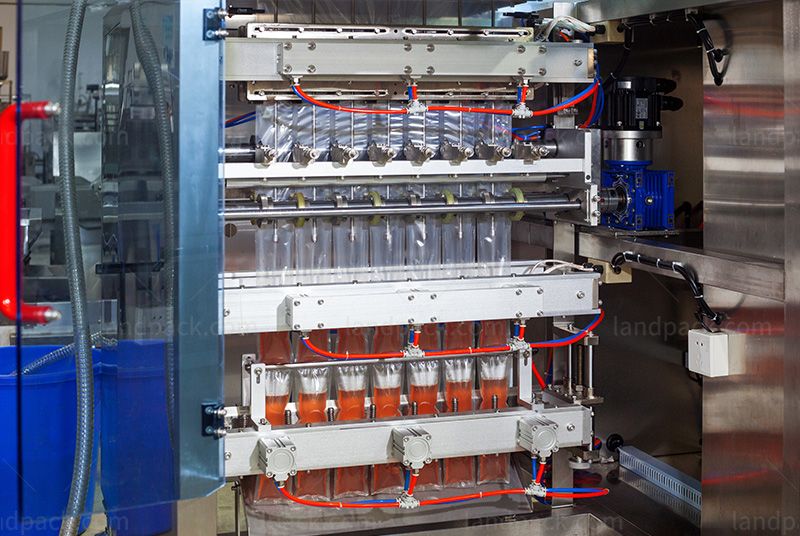

5. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.
6. The stainless steel contact part and the machine's outer shell, are high features for a liquid running environment.
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
