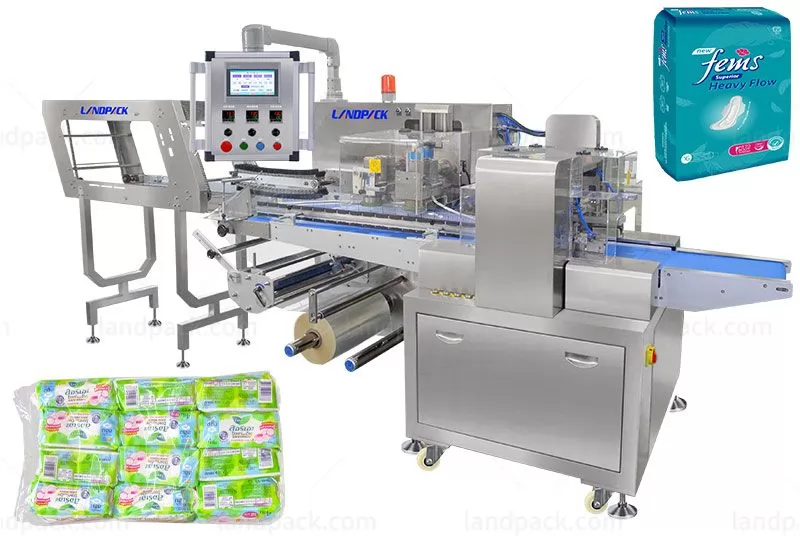

Application:
The automatic pillow bag wrapping flow pack machine is suitable for packing regular objects such as sanitary pads, bread, biscuits, pies, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Dual Frequency Conversion Control: Allows bag length to be set and cut in one step, saving time and film.
2. High-Quality Sealing: Ensures beautiful, wrinkle-free seals, ideal for high packaging standards.
3. Optional Features: It can be equipped with automatic coding, a pinhole exhaust device, an automatic marking system, and automatic punching.
| Type | LP-450X | LP-600X | LP-700X |
| Film width | Max.450mm | Max.600mm | Max.700mm |
| Bag length | 150-450mm | 160-500mm | 180-600mm |
| Bag width | 50-180mm | 100-280mm | 100-330mm |
| Product height | Max.80mm | Max.110mm | Max.110mm |
| Film roll diameter | Max.320mm | ||
| Packaging rate | 40-150 bags/min | 20-150 bags/min | 20-130 bags/min |
| Power | 220V, 50/60Hz, 2.8kw | 220V, 50/60Hz, 2.8kw | 220V, 50/60Hz, 2.8kw |
| Machine size | (L)4150*(W)820*(H)1450mm | (L)4300*(W)920*(H)1460mm | (L)4380*(W)980*(H)1480mm |
| Machine quality | About 650kg | About 680kg | About 720kg |
| Remarks | optional air-filling device / optional angle folding | ||
| Film material | OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
