Application:

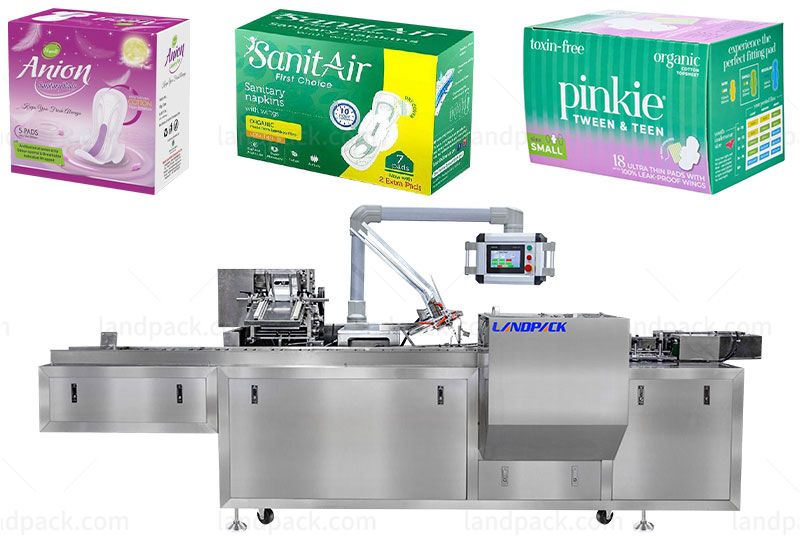

Suitable for carton packaging of sanitary napkins, cardboard napkins, sanitary towels, pads, napkins, face masks, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. High-Speed Packing: Efficiently handles single box packaging.
2. CAM Driven System: Ensures stable machine operation with pneumatic drive auxiliary.
3. Wheel-Controlled Film Feed: Provides precise and easy film handling.
4. Stainless Steel 304 Body and Organic Glass Cover: Durable and easy to clean.
5. GMP Standard Alumina Working Plate: Ensures a flat and smooth working surface.
6. Flexible Size Ranges and Quick Mold Changeover: Accommodates different sizes with fast mold adjustments.
7. Optional Features: Includes tear tape, ink printer, and sensor options.
Speed | 20-50 boxes/min |
Min box size | 70mm*40mm*15mm (L*W*H) |
Max box size | 350mm*320mm*100mm (L*W*H) |
Available paper | 300-350 g/㎡ |
Air Pressure | 0.6-0.8 MPa |
Air consumption | 200-260 L/min |
| Power supply | 220V/50HZ |
| Max power | 4000KW |
| Overall dimension | 4000mm*1580mm*1850mm |
| Weight | 1500kg |
| Sealing box form | Viscose |
| Whether it can be customized | Customizable |
After receiving your inquiry,We will send you the quotation as soon as possible.
