Application:

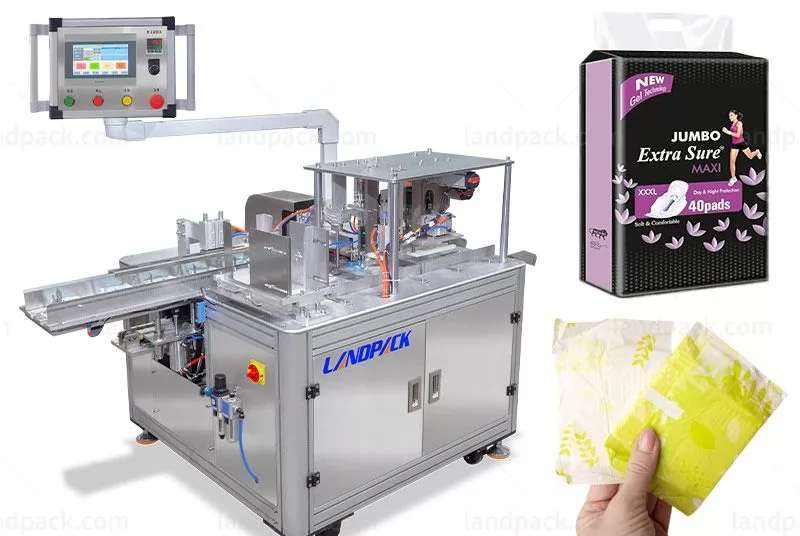

The automatic wrapping flow pack machine is suitable for packing sanitary pads, sanitary napkins, cardboard napkins, sanitary towels, pads, napkins, face masks. etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Adjustable Stroke and Mold Positioning: Input plate length via the human-machine interface for easy mold replacement and accurate photoelectric alignment; encoder controls bubble forming.
2. Human-Machine Interface and PLC Control: Features programmable control and variable frequency step-less speed regulation.
3. Automatic Unloading: Customizable molds and unloaders based on user requirements.
4. Optional Features: Includes tangent indentation, batch numbering, and waste recycling devices.
5. Servo Motor Traction: Provides stable operation for blister sealing and packaging.
6. Heat Seal Protection: Automatic separation of heat seal mold prevents packaging burn and extends machine lifespan.
| Speed | 1500-3000 bags/h |
| Material type | Sheet Product |
| Bag Size | L: 200-350, W: 200-250 |
| Pressure | ≥0.6MPa |
| Gas consumption | 20 m³/h |
| Supply | 220V-380V |
| Power | 4.5kw |
| Qualification rate | 99.9% |
| Machine Size | 3800*1500*1700mm (L*W*H) |
| Machine weight | 1500 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
