Application:

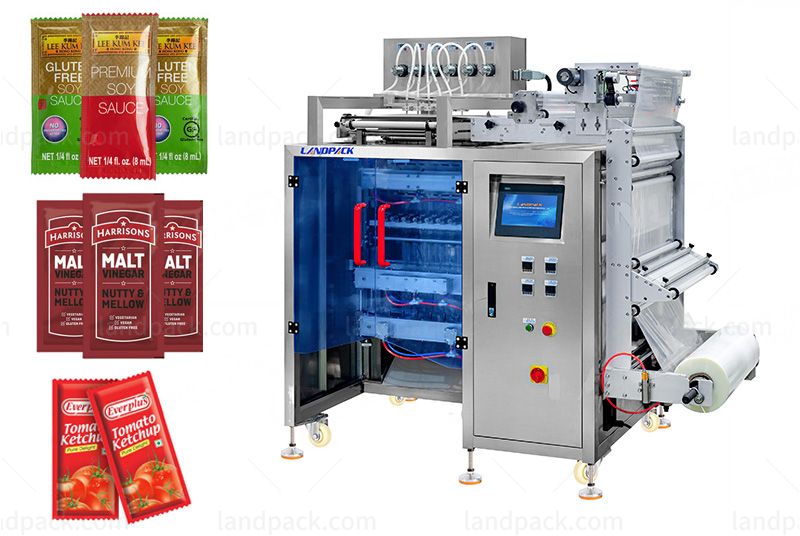

This multi-lane packaging machine is suitable for all kinds of paste, and viscous liquid packaging, such as soy sauce, ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, shampoo, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Equipped with a date printer for accurate labeling.
2. Ideal for low viscous and slightly foamy corrosive liquids, featuring a machine with a magnetic pump.
3. Utilizes servo motor control for precise sealing and bag making.
4. Capable of producing multiple bags simultaneously, ensuring high production capacity.
Workflow:
1. Film feeding and bag making.

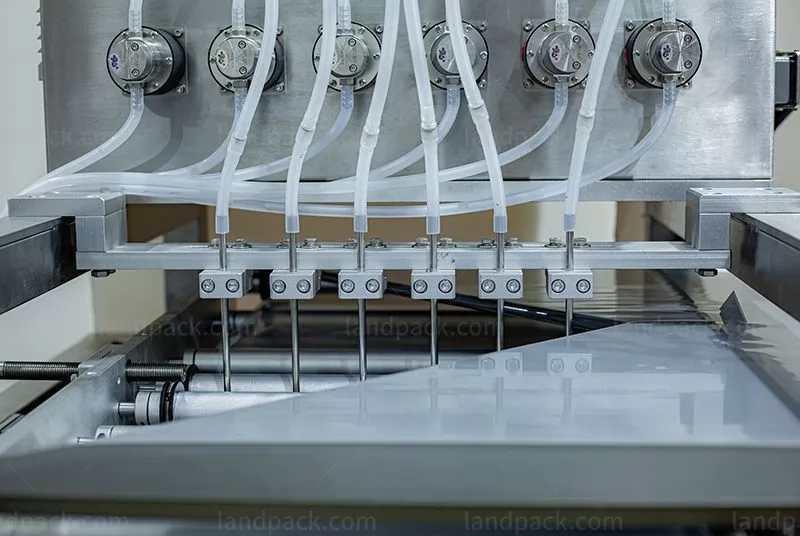

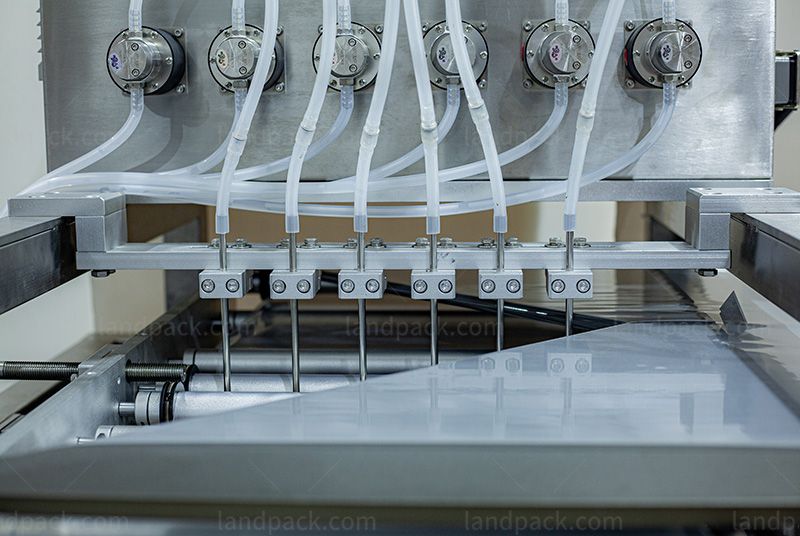

2. Magnetic pump feeding and metering.
3. Coding machine printing date.
4. Stable pulling film to cut exact position.
5. Finished product output
Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-10 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2.Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
