Application:
Suitable for automatic packing for liquid, such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Versatile Packaging: Suitable for packing various sauces, soups, and dipping sauces.
2. Double Sealing: Ensures tighter, more attractive packaging with no leakage.
3. Large Filling Tube: Accommodates both sticky and non-sticky sauces efficiently.
4. Premade Bag Packaging: Enhances product presentation and adds value.
Workflow:

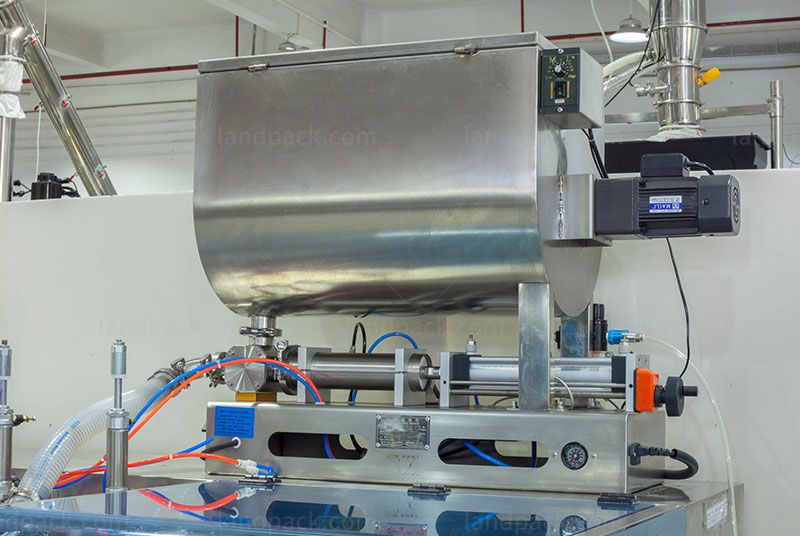

1. Horizontal storage tank

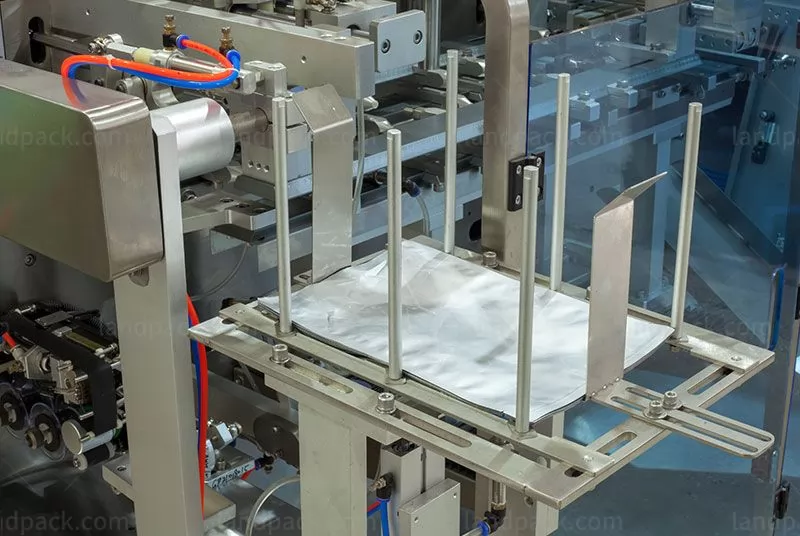

2. Vertical bag feeder

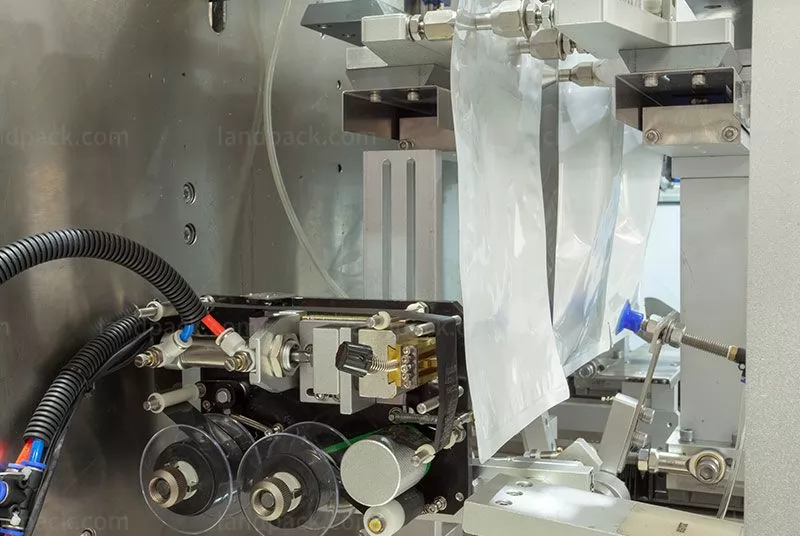

3. Ribbon code print
4. Open bag
5. Filling
6. Hot sealing
7. Output
| Model | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
| Bag Size | 110-230mm(L); 80-160mm(W) | 70-100mm(L); 110-230(W) | 100-210mm(L); 110-320mm(W) | 100-260mm(L); 110-320mm(W) |
| Filling range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Machine weight | 800 kg | 800 kg | 900 kg | 1000 kg |
| Total power | 2 KW | 2 KW | 2 KW | 2 KW |
| Workflow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366 *1360mm(L*W*H) | 2140*1366 *1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
