Application:

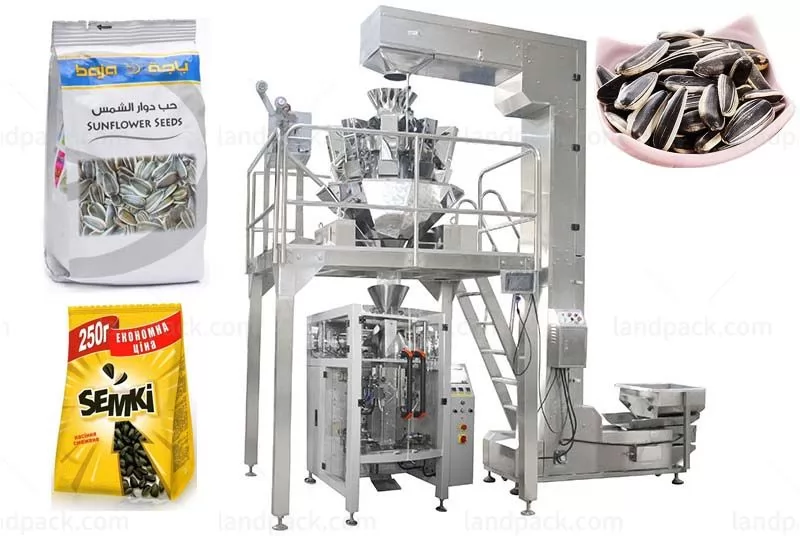

Quad Seal Bag / Block Bottom Pouch Packing Machine is Suitable for various kinds of Various Seeds, nuts, coffee beans, peanuts leavened food, candies, and such materials in grain or piece as well as powder like milk powder, washing powder, starch, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
New design with perfect fashion, more reasonable structure, more advanced technology.
Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shape stabilization.
Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.
Standard positioning with imported servo film tran sporting system and mark sensor,superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
With double transporting devices, angle fold devices and retainer devices, Function more perfect.

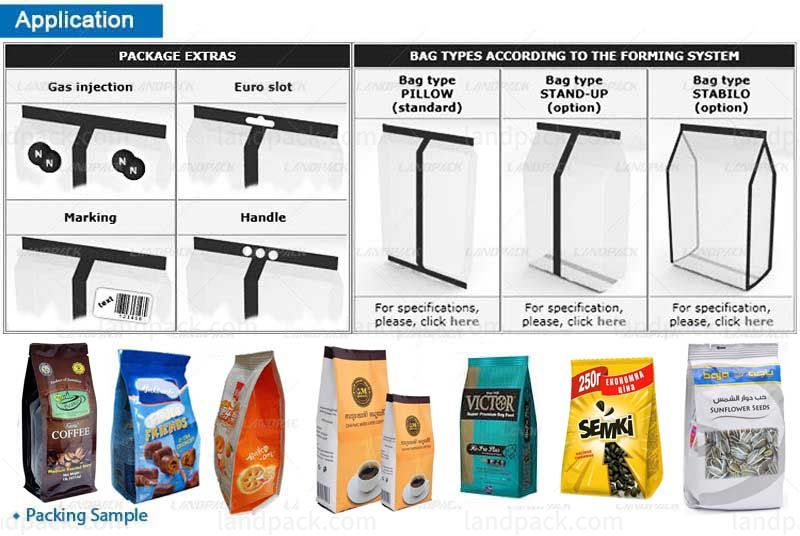

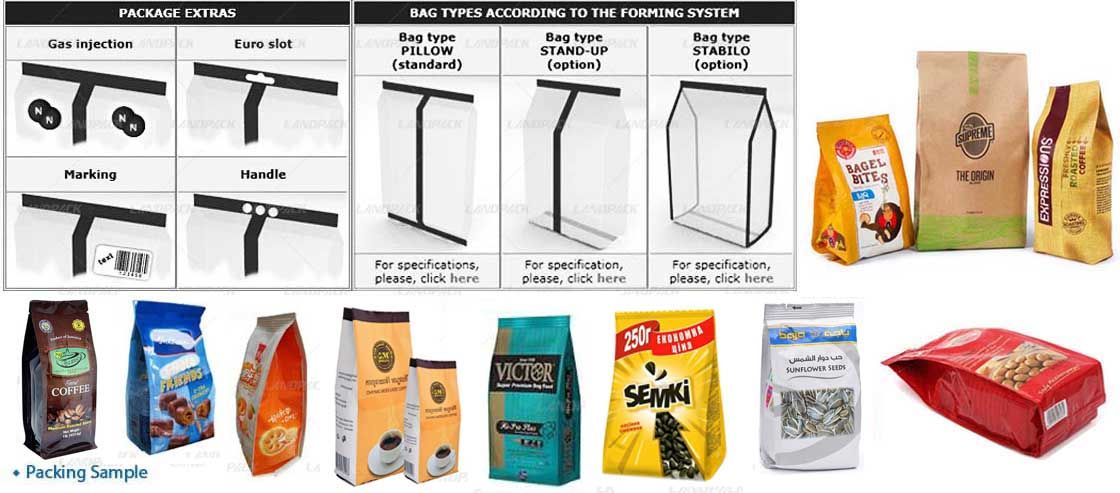

Various kinds of bag, it could provide the hang hole bag, link bag, etc.
Automatic correct function, save time, labor, and film,the operation more intelligent.
Adopt external film feeding mechanism. Film setting be more easy and quick.
| Model | LDB-420A | LDB-520A |
| Film Width | 150-Max.420mm | 250-Max.520mm |
| Bag Length | 80-280mm | 80-350mm |
| Bag for Front width | 80-132mm | 80-150mm |
| Bag for Side width | 20-66mm | 35-90mm |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm |
| Packaging Rate | 10-40bag/min | 10-40bag/min |
| Power | 220V 50/60Hz 2.8KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1390*1155*1800mm | 1492*1255*2184mm |
| Machine Quality | About 600kg | About 700kg |
| Option device | air filling device, hole-punching device. | |
After receiving your inquiry,We will send you the quotation as soon as possible.
