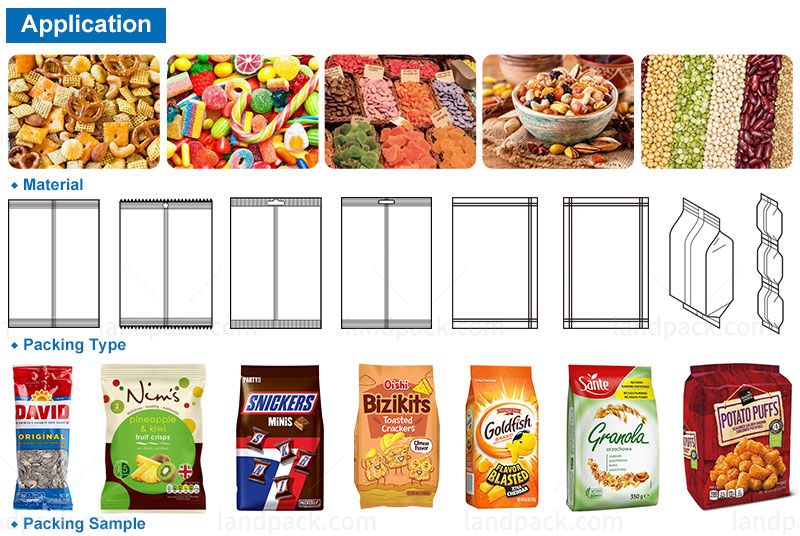

Application:
Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material such as all kinds of seeds, sunflower seeds, candy, peanuts, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shredded or slices vegetables, like iceberg lettuce, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

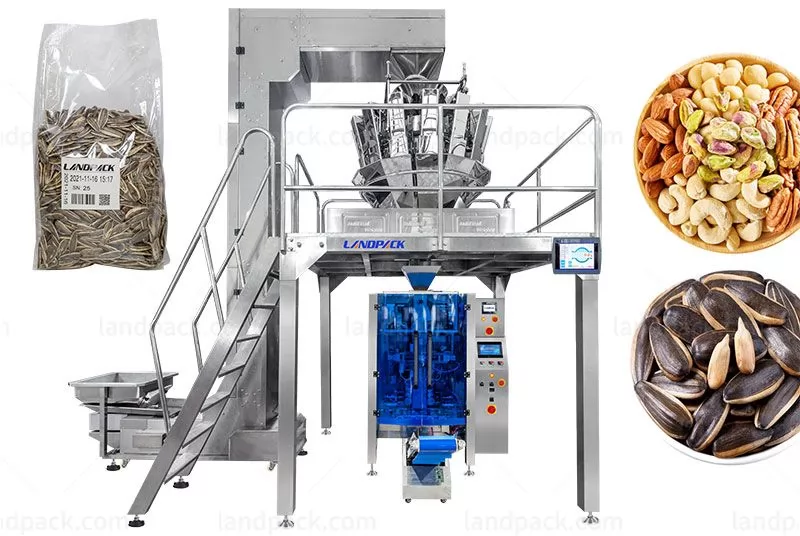

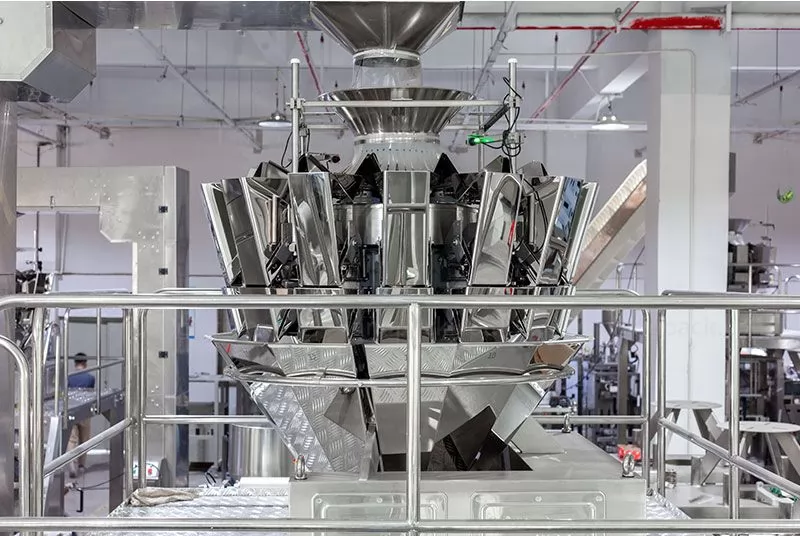

1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7inch touch screen, easy operation, and multiple languages for choice.
3. Imported PLC system, machine performance is stable and easy for parameters adjusting.
4. With a memory function for storage ten sets of parameters. Easy to change packing product.
5. Separate PID temperature controller, suitable for various packing materials.

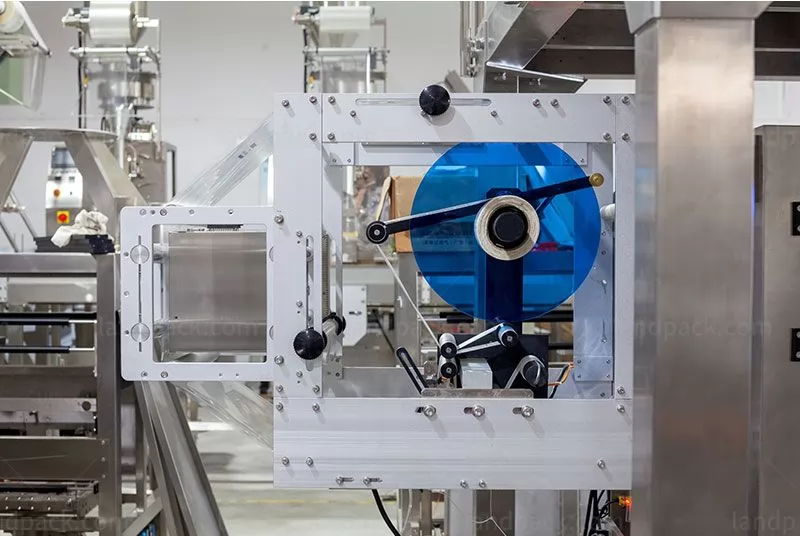

6. Multi-union roll film pulling system makes film running more smooth.
7. Adopt a double servo film-dragging structure, enabling stable bag forming for perfect bag shape.
8. Sophisticated sealing framework achieves the consistency of bag sealing and cutting.
9. Machine automatically finishes the process of filling, metering, bag forming, date printing, sealing, and packing.
10. Low loss, labor saving, easy for operation and maintenance.
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
