Application:

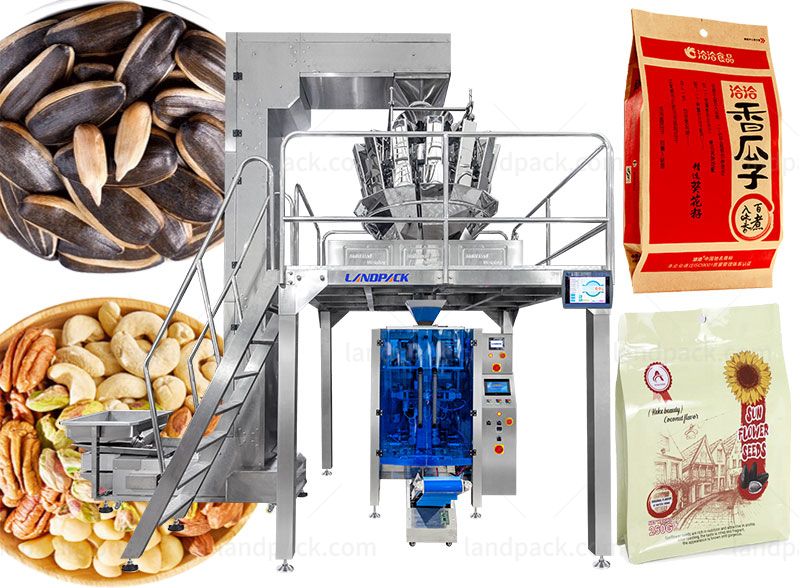

High Precision Sunflower Seeds Weighing And Packing Machine, It is suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as all kinds of Seeds, Sunflower seeds, candy, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

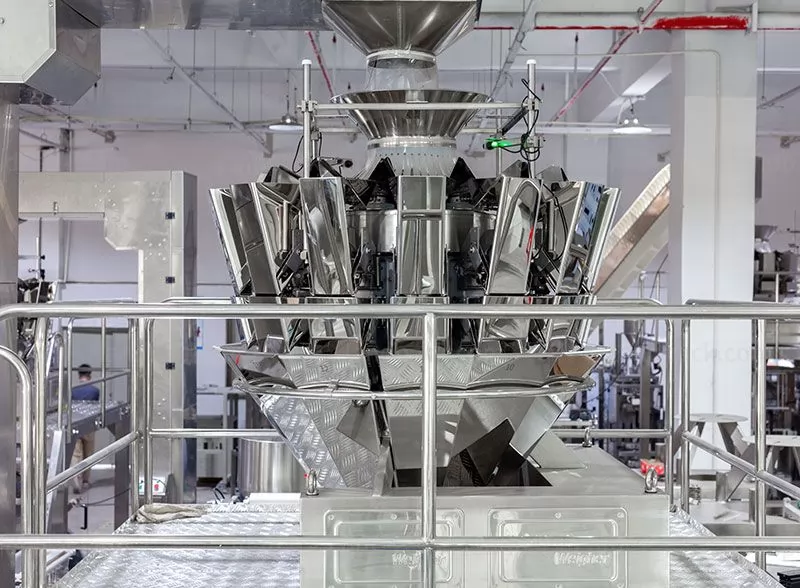

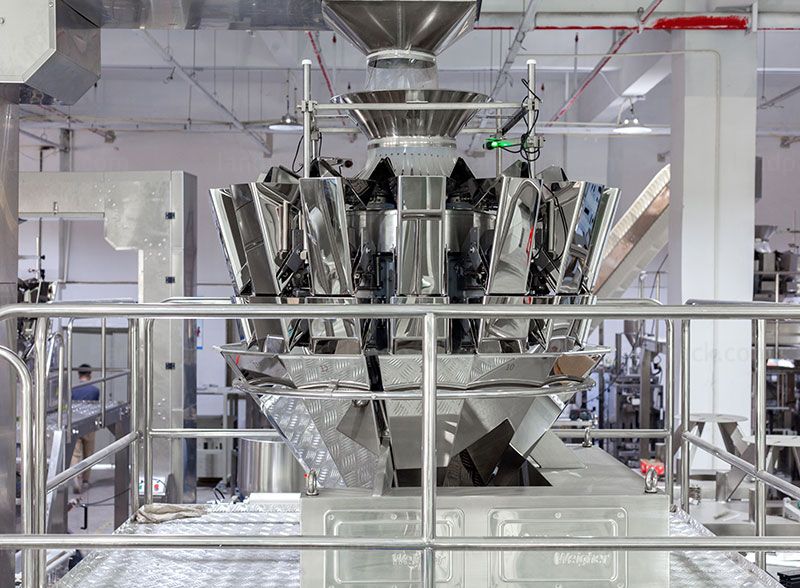

1. Multi-head combined weigher, improve metering speed and accuracy.
2. 7inch touch screen, easy operation and multiple language for choice.
3. Imported PLC system, machine performance is stable and easy for parameters adjusting.
4. With a memory function for storage ten sets of parameters. Easy to change packing product.
5. Separate PID temperature controller, suitable for various packing materials.
6. Multi-union roll film pulling system make film running more smooth.

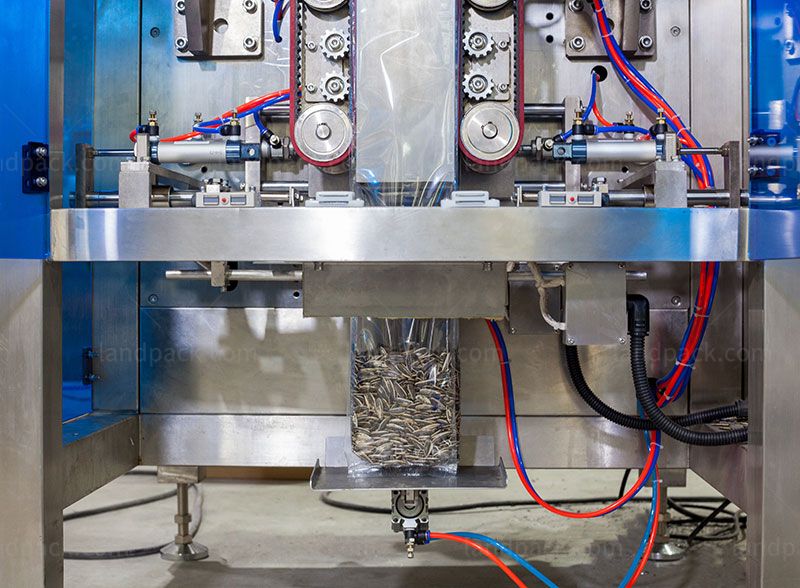

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.
8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.
9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.
10.Low loss, labor saving, easy for operation and maintenance.
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
