Application:
Suitable for 4 side sealing sachet of conventional liquids such as shampoo, sauces, seasoning, ketchup, honey, vitamin water, juice drinks, oil, water, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. High precision structure for simple and easy operation and repair.
2. PLC touch screen,step motor control,easy and accurate to set the bag length.
3. It's owns simple circuitry and outstanding function.
4. The machine completes the whole procedure of filling,bagging,date printing.charging(exhausting) automatic.

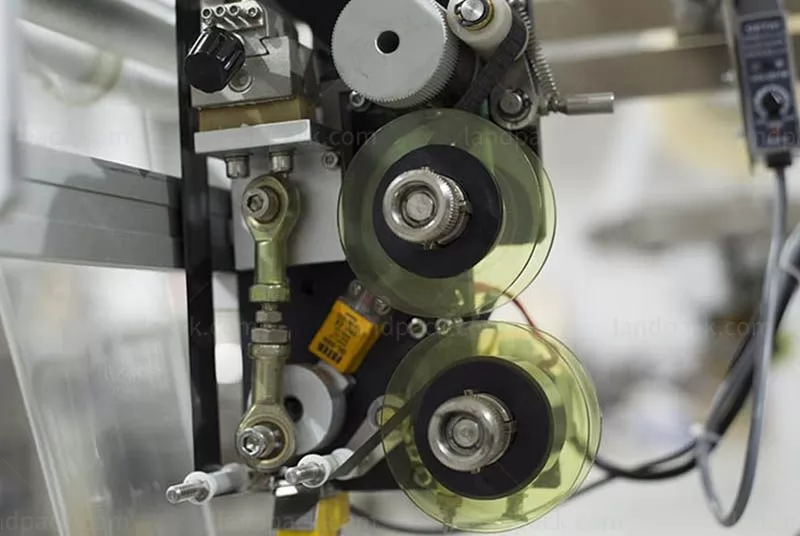

5. Optional Device: 1. Date Coder; 2. Hole Punching Device(Pinhole, Round hole, the butterfly hole); 3.Linking bag control device; 4. Air-filling Device; 5. Air Exhaust Device; 6.Tear Notch Device.
Model | LDS-320L-4 | LDS-380L-4 |
Film width | 120-320mm | 180-380mm |
Bag length | 50-200mm | 60-280mm |
Bag width | 50-150mm | 60-180mm |
Diameter of film roll | Max.300mm | Max.320mm |
Packing speed | 35-70bag/min | |
Measuring range | 50-500ml | 50-750ml |
Film thickness | 0.04-0.07mm | |
Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
Machine weight | About 300kg | About 450kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
