Application:
Widely applied for food, medicine, and chemical liquid products such as shampoo, juice, mouthwash, ketchup, flavoring, sauce, pasty, salad dressing, cream, body wash liquid, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Sample:
1. Automated Functions: This machine handles measuring, bag making, sealing, cutting, counting, and product conveyance automatically.
2. Safety and Concealment: Heat-generating and moving parts are discreetly hidden within a protective cover.
3. Hygienic Material Contact: The contact surfaces between the box and material are made of stainless steel, meeting the requirements for pharmaceutical and food production.
4. Mobility and Convenience: Equipped with casters, the machine is easy to handle and move.
5. Efficiency and Material Savings: Automatic alarms prevent material waste, ensuring efficient operation.

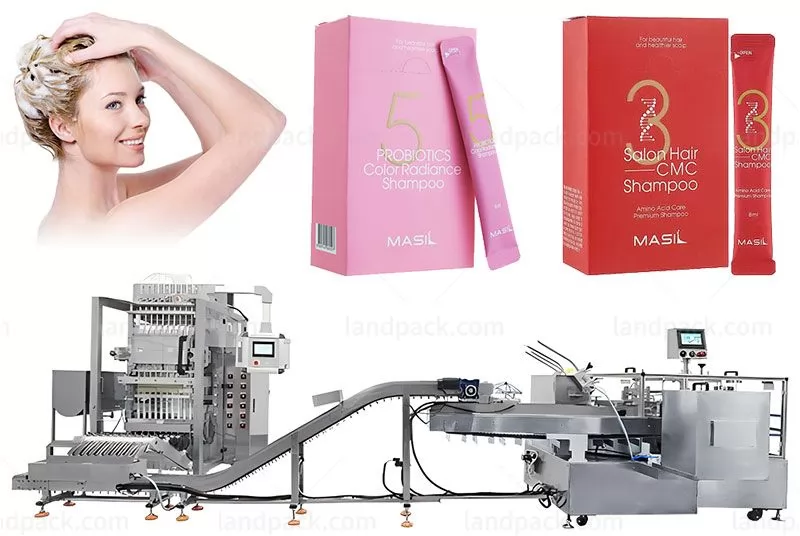

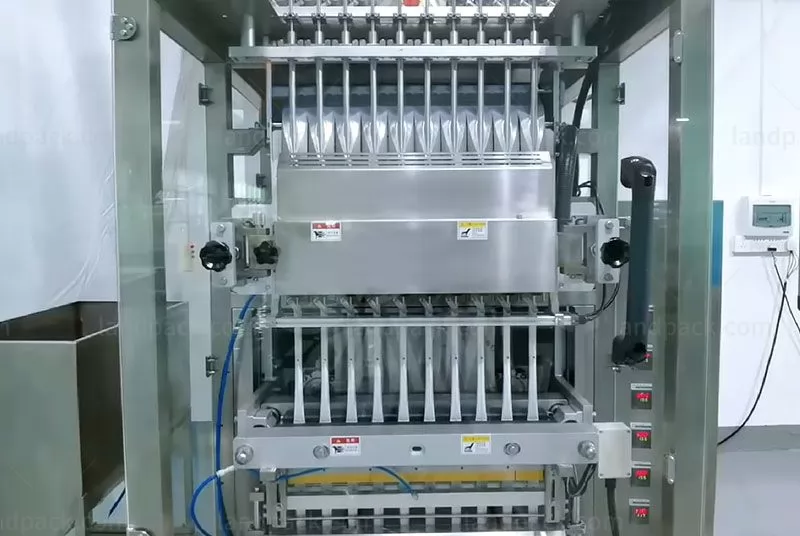

| MULTI-LANE STICK PACK SHAMPOO PACKAGING MACHINE | |
Model | LD560BY |
Lane number | 3-12 Lanes |
Filling Method | Piston pump; Peristaltic pump; Ceramic pump; Rotary pump |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min,3.5kw |
Dimension & weight | 1385*918*2005mm,350kg |

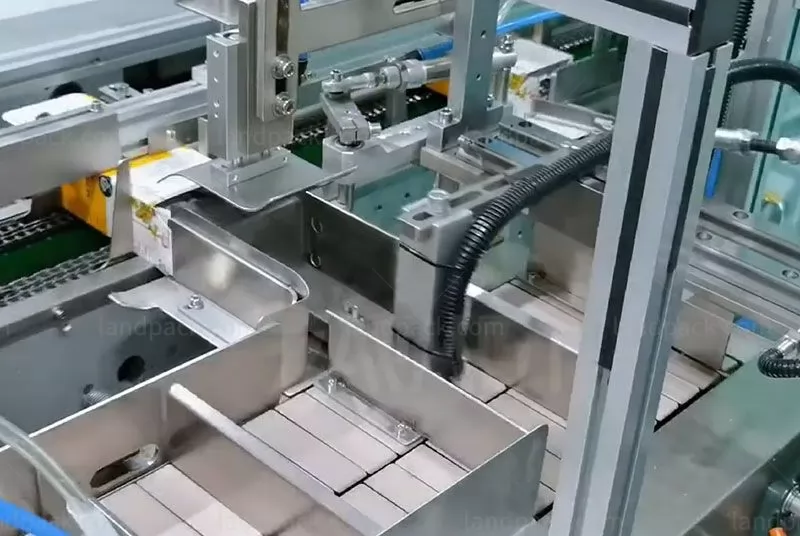

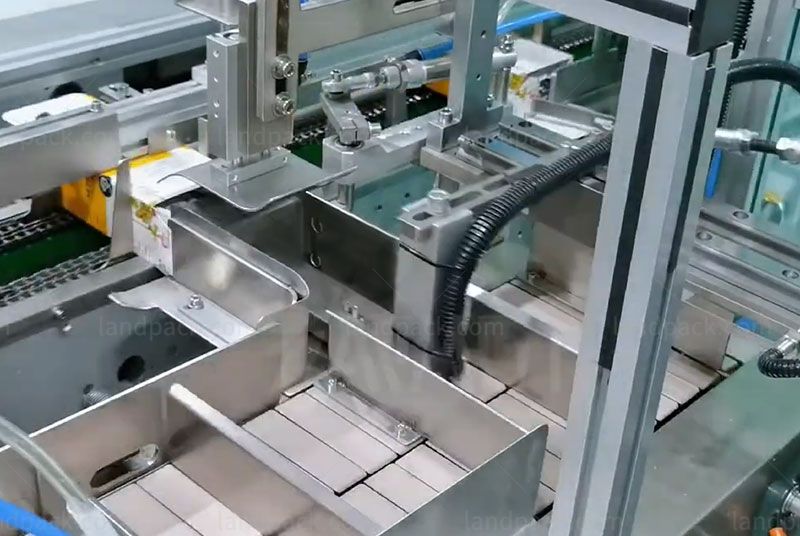

| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa 0.3m³/min;220V 50/60HZ 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
