Application:

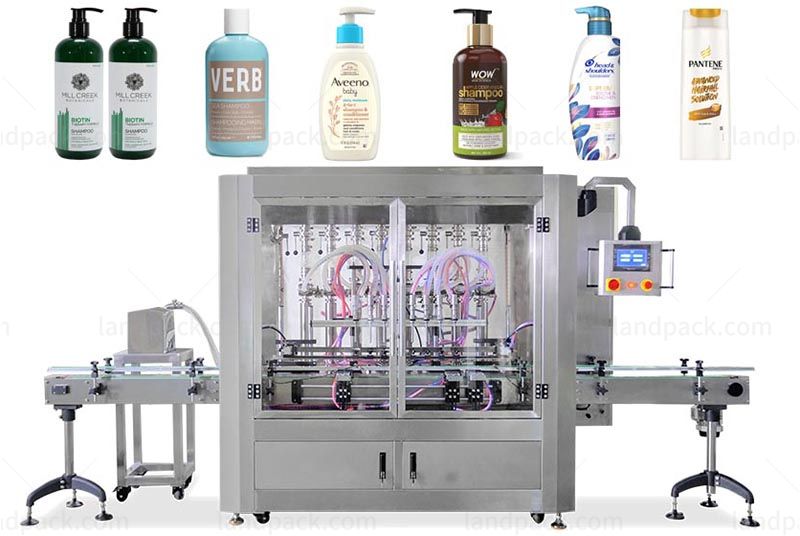

Automatic Liquid/ Shampoo Bottle Filling Machine For 500ml, 750ml, 1L, 2L, 4L, 5L volumes from Landpack can fill up to 16 containers at the same time with virtually any liquid product, from thin and foamy to thick and stringy. It is recommended for a wide variety of products including cosmetics, personal care, food and beverages, chemicals, pharmaceuticals and more.
Examples: Water, shampoo, solvents, alcohol, specialty chemicals, paint, inks, corrosive chemicals i.e. acids and bleach.
Packaging Type: Barrel, Bottles, Cans, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other。
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Bottle Filling machine is adjustable for many different types of bottles
2. Easy to maintain, no special tools are required.

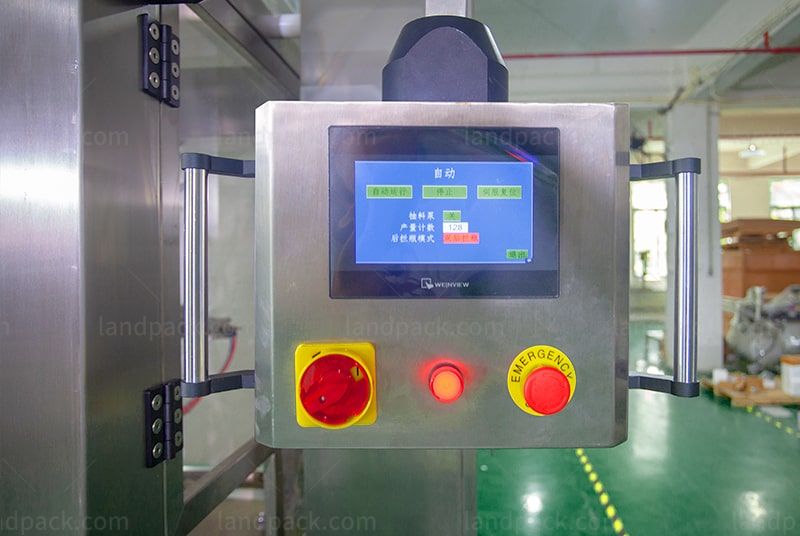

3. No bottle, no filling, automatic PLC control.

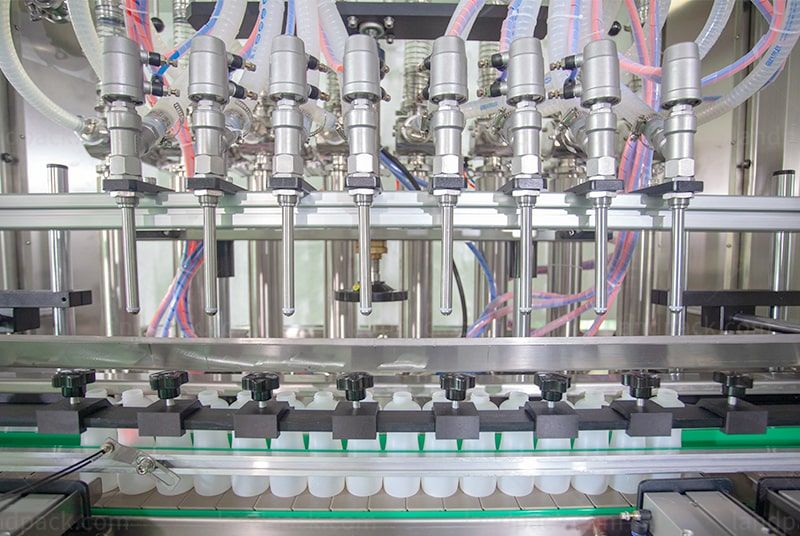

4. Filling nozzles are anti drops, silk, and auto cut viscous liquid.
5. Perfect filling precision: Less than 0.5%.
6. Special seals or hoses are adapted if the liquid are corrosive.
7. Diving nozzles for bottom up filling of foaming products if need.

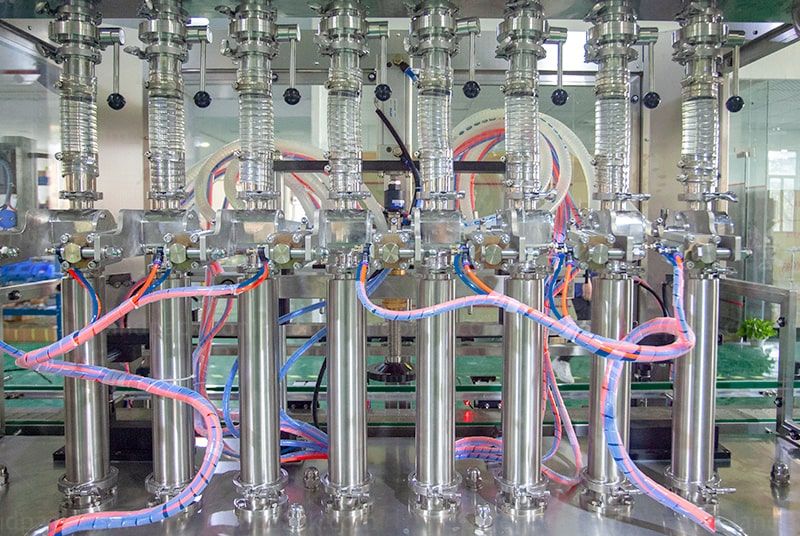

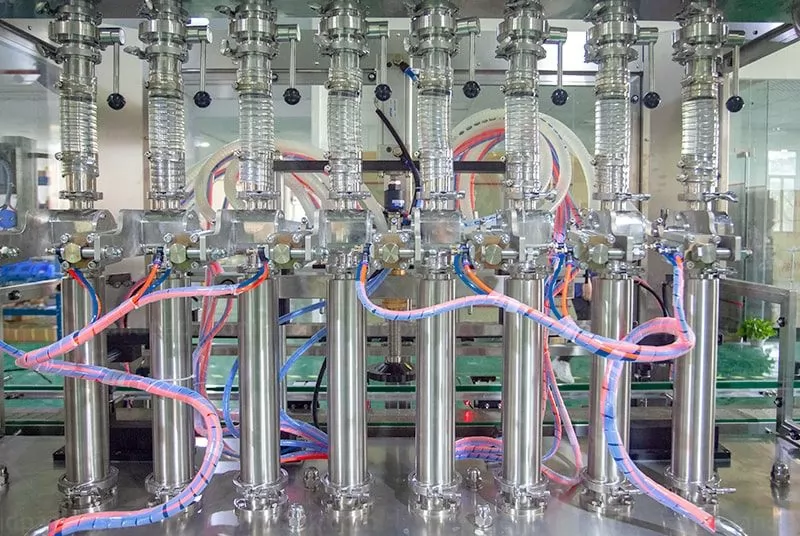

How It Works: The product bulk supply is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the filler’s master computer so that precise amounts of liquid will flow by gravity into the container. Gravity fillers built with bottom up fill capability can handle a wide range of flowable liquids including foamy products.Machine Parameters:
Parameter:
Filling Volume | 100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml | |||||
Filling Material | Shampoo,Lotion,Cooking oil,Lube oil, Degergent liquid,Hair oil, Honey, Sauce,and so on | |||||
Filling nozzle | 2 | 4 | 6 | 8 | 10 | 12 |
Capacity(B/H) | 800-1000 | 1500-1800 | 1800-2500 | 2500-3000 | 3000-3600 | 3600-4200 |
Filling Precision | Less Than 0.5% | |||||
Power supply | 220V Single phase 50HZ 380V Three phase 50HZ |
After receiving your inquiry,We will send you the quotation as soon as possible.
