Application:
This multilane packaging machine is suitable for shampoo, ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, chili sauce, cream, liquid butter, juice, shower gel, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

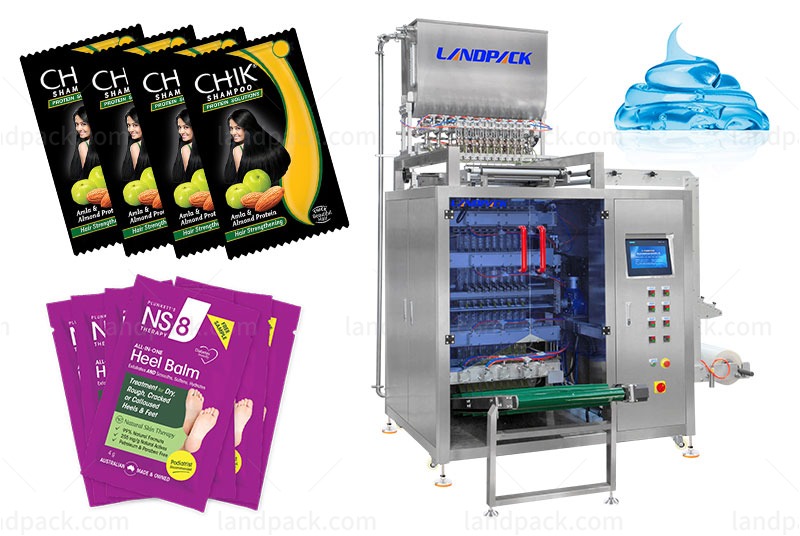

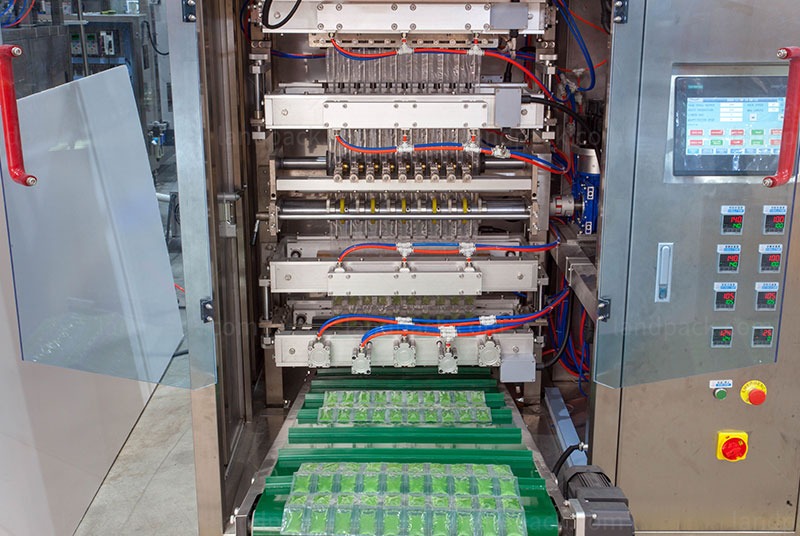

1. Our cutting-edge multi-lane packing machine boasts an impressive maximum roll film width of 1200mm, making it the largest in its class.
2. With its user-friendly air-shaft film roller system, changing to a new film roller has never been easier, ensuring minimal downtime and increased productivity.
3. Featuring a multi-head ribbon date printer, our machine enables precise and efficient printing of date information on each packaging lane, guaranteeing accurate and traceable product labeling.

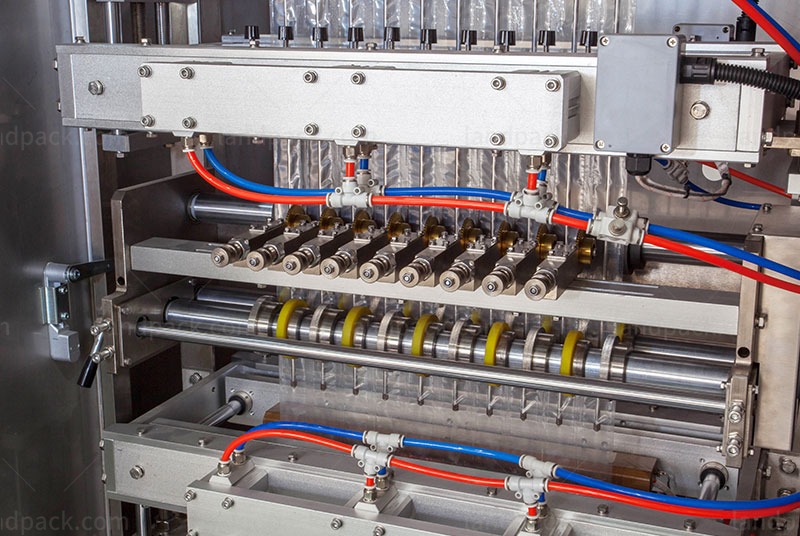

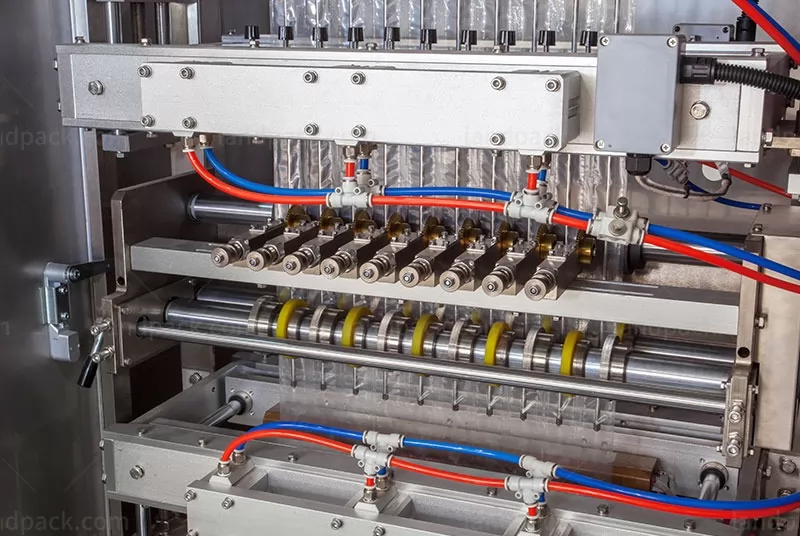

4. Our anti-leaking filling nozzles are designed with high metering accuracy, preventing any unwanted spills or wastage during the filling process, resulting in cost savings and improved product quality.

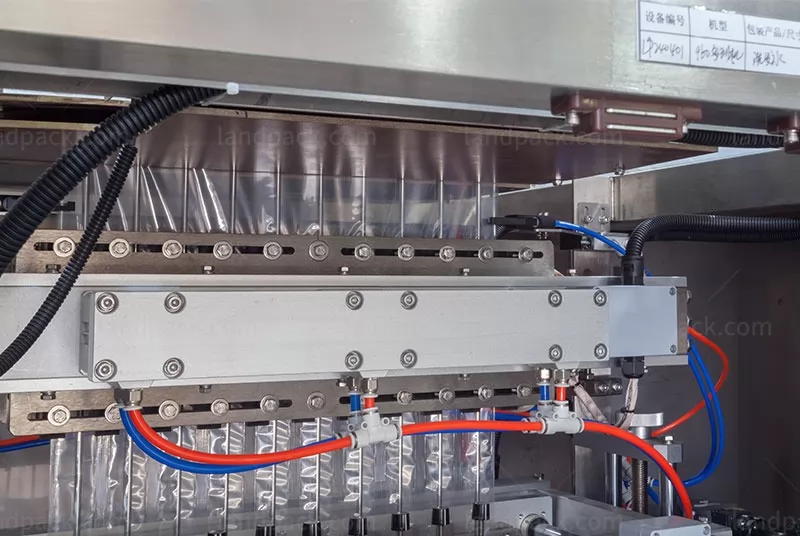

5. For optimal package integrity, our machine incorporates a twice-horizontal sealing mechanism, delivering a reliable and robust seal that ensures freshness and prevents leakage.
6. With a versatile 6*5 joint bag configuration, our machine provides flexible packaging options, accommodating various product sizes and quantities to meet diverse customer needs.
Model | LD-480Y | LD-720Y | LD-960Y |
Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
Filling Method | 1.Piston pump; 2.Peristaltic Pump | ||
Capacity | Max.40 cycle/min | ||
Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
