Appliacation:

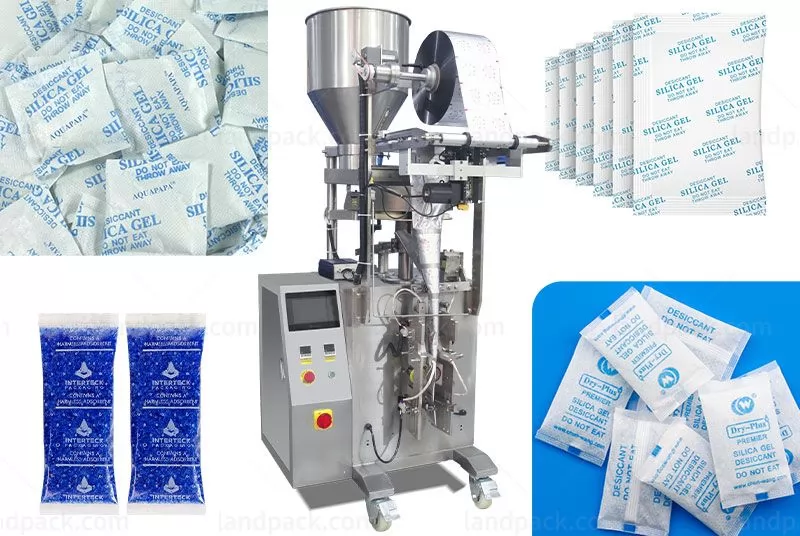

Suitable for small granule material,such as silica gel, desiccant, sugar, salt, crystal monosodium glutamate, seasoning, pesticides, chemicals, feed and other small granule material automatic packing.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
High precision structure for simple and easy operation and repair.
PLC touch screen, step motor control, easy and accurate to set the bag length
lt's owns simple circuitry and outstanding function.
The machine com pletes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
Selecte device: Linked bags device.
| Type | LD-320A3 | LD-380A3 |
| Film Width | 120-320mm | 180-380mm |
| Bag Length | 50-200mm | 60-280mm |
| Bag Width | 50-150mm | 60-180mm |
| Range of Measurement | 50-500ml | 50-570ml |
| Film Roll Diameter | Max.320mm | Max.380mm |
| Packaging Rate | 35-70bag/min | 35-70bag/min |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine Size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine Quality | 300KG | 450KG |
| Optional device | 1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device | |
After receiving your inquiry,We will send you the quotation as soon as possible.
