Application:

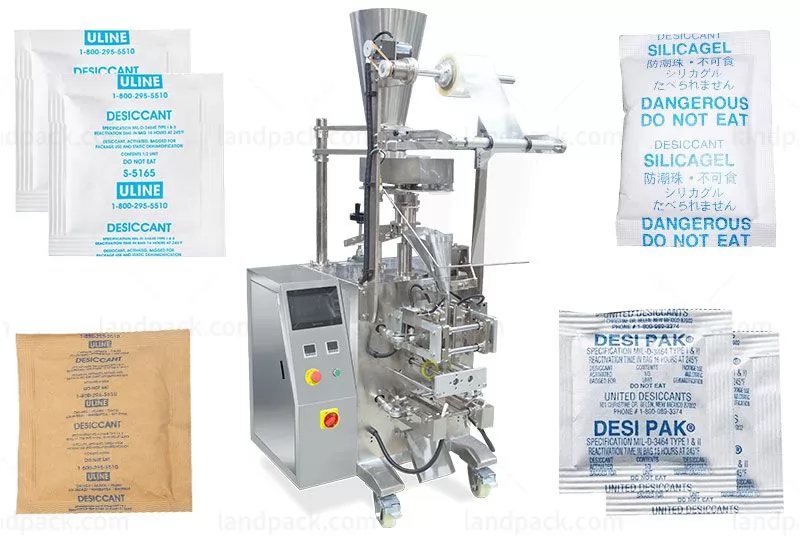

Suitable for small granule material, such as silica gel, desiccant, sugar, salt, crystal monosodium glutamate, seasoning, washing powder, pesticides, chemicals, feed and other small granule material automatic 4 Side Sealing Sachet packing.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Products dosing, Filling, Laminate heat sealable pouch making and sealing;
Stainless steel 304 structure and surface;
Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;
Simple changing of pouch former, to adapt different pouch size requirement;
Intelligent temperature controlling configuration, ensure the artistic and neat sealing;

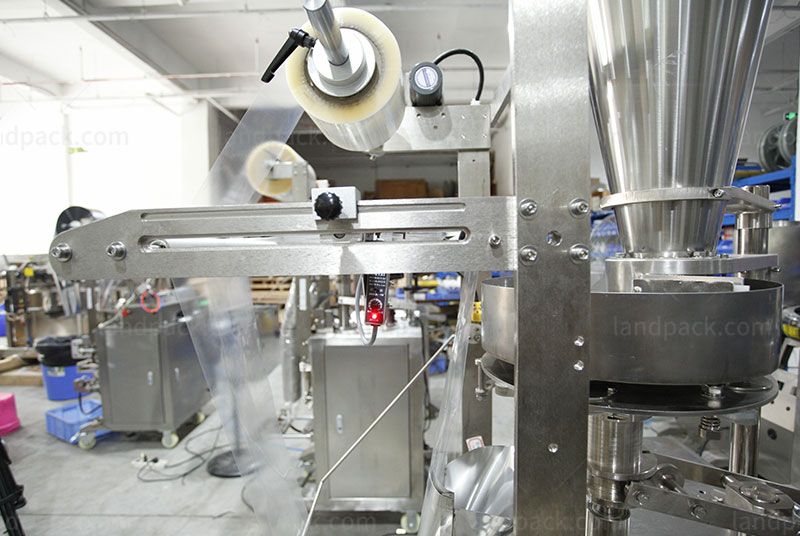

Configure with packaging film pre-pulling device, to enable stable pouch making;
Easy to change the packaging film.
| Type | LD-320A-4 | LD-380A-4 |
| Film Width | 120-320mm | 180-380mm |
| Bag Length | 50-200mm | 60-280mm |
| Bag Width | 50-150mm | 60-180mm |
| Range of Measurement | 50-500ml | 50-570ml |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Packaging Rate | 35-70bag/min | 35-70bag/min |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine Size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine Quality | 300KG | 450KG |
| Optional device | 1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device | |
After receiving your inquiry,We will send you the quotation as soon as possible.
