Application:
Suitable for counting packing a wide range of products, including nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, apple slices, frozen dumplings, coffee beans, pasta, cotton candy, french fries, rice, and small hardware. This versatile machine ensures efficient and precise packaging for diverse applications.
Suitable Pouch:
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Easy Operation: Features a 7-inch Siemens touch screen with a multi-language interface, simplifying parameter adjustments and making operation intuitive.

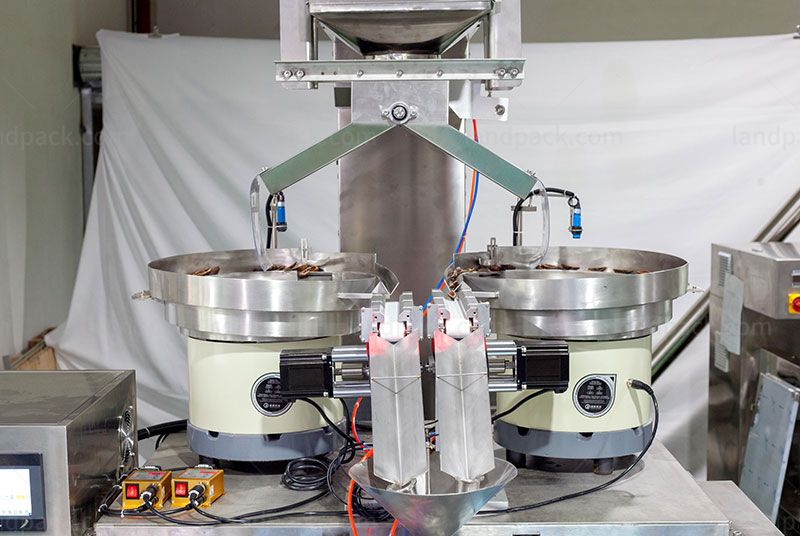

2. High Precision: Employs advanced Japanese technology in its multi-head weigher for precise and consistent dosing.
3. Fully Automatic Process: This process integrates feeding, dosing, bag input, and sealing, accommodating various bag styles, including stand-up bags, Euro hole bags, linked bags, and bags with manufacturing date printing.
4. Versatile Film Compatibility: It works with lamination pouches, PE, aluminum pouches, and paper pouches. It supports diverse bag designs, such as 3-side and 4-side seal bags, zipper bags, stand-up bags, pillow bags, and punched-hole handle bags.
5. Wide Application: Suitable for food and non-food industries, offering efficient and versatile packaging solutions tailored to various product types.
Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
Machine weight | 800KG | 800KG | 900KG | 1000KG |
Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | |
Collocation | Screw metering, screw elevator |
After receiving your inquiry,We will send you the quotation as soon as possible.
