Application:

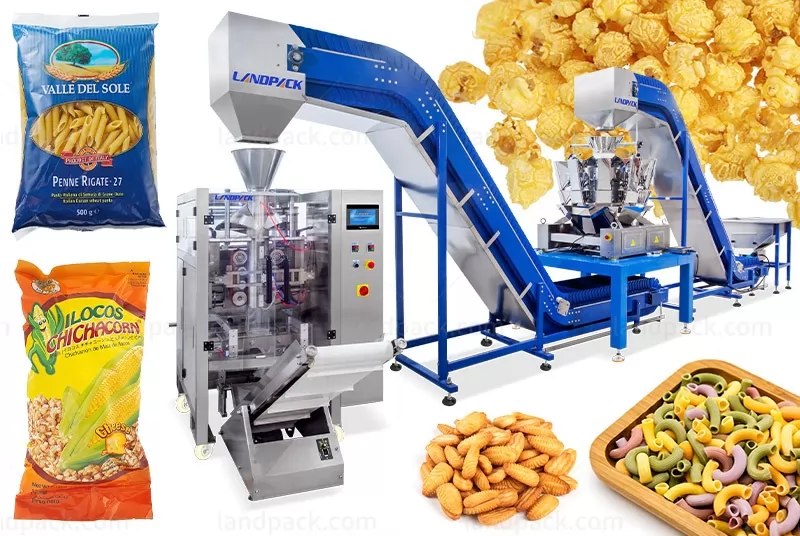

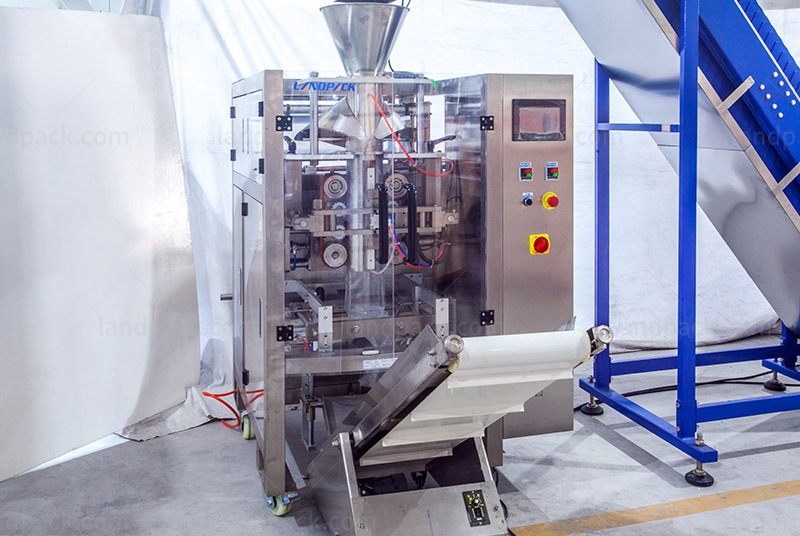

Automatic Snacks Puff Vertical Packing Machine With Secondary lifting feeding + weighing. It suitable for packaging in food, agriculture, pharmaceutical, cosmetics, chemical and other industries. such as puff, snacks, beef jerky, biltong, chicken nuggets, pet foods, frozen foods, vegetables, fruits, candies, chemicals and other particles.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Big bucket elevator food grade material, easy clean

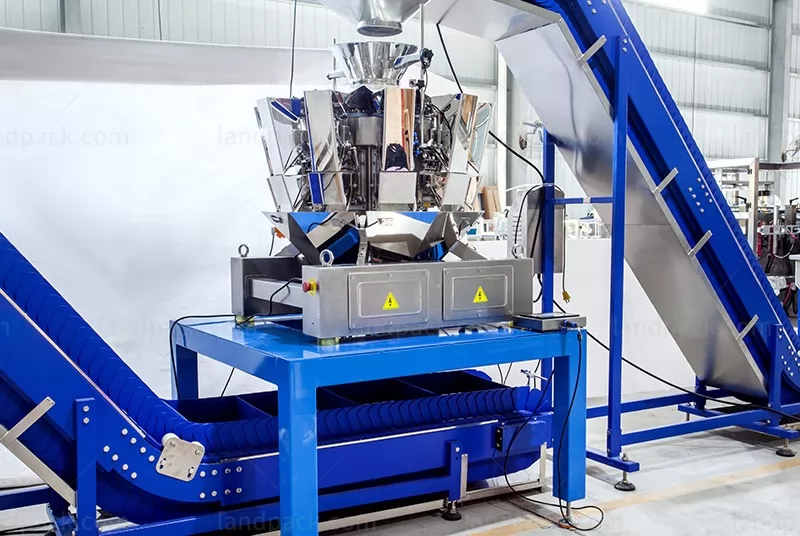

Combination weigher ensures more accurate measurement
Adopting secondary lifting method, suitable for factories with height restrictions
Imported PLC control system, colorful touch screen, easy operation, intuitionistic and efficient.

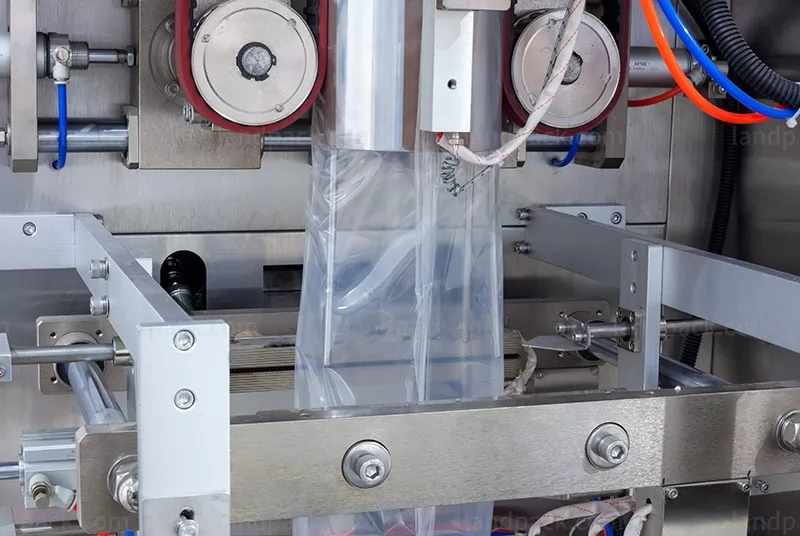

Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for complete machine, perfect packaging.
With auto warning protection function to minimize loss.
Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
| Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
| Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
