Application :

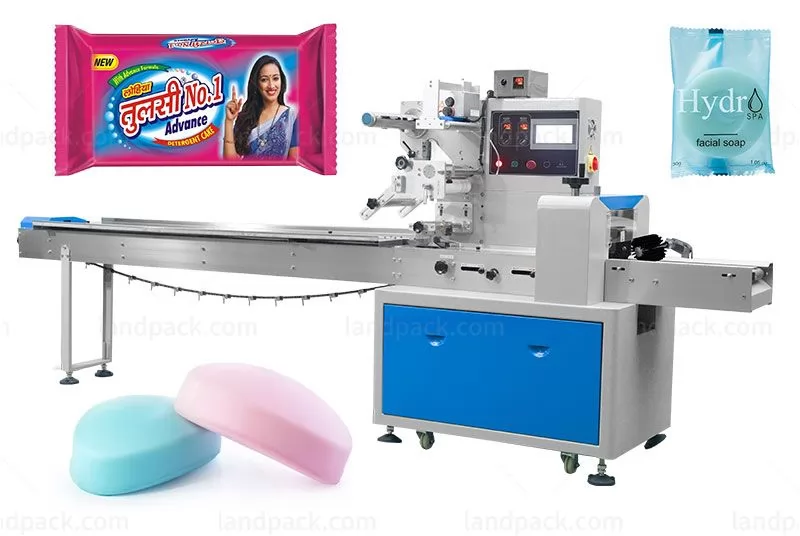

This flow packing machine has good performance at solid product packaging solutions such as soap, cake,chocolate, energy bar,tortillas,ice-lolly, vegetables,face mask, and so on.
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :
Servo motor control;Accurate bag length setting
7inch touch screen, easy operation and multiple language for choice.
PID Temperature control, making the seal at low temperature to raise the packing speed and reduce film burning;suitable for various packing films such as aluminium film, paper film, PE film, and composite film.
High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
10 kinds of product packing data memories for easy data setting and record
| Model | LP-250 | LP-350 | LP-450 | LP-600 | LP-700 | LP-800 | LP-900 |
| Film width | Max250mm | Max350mm | Max450mm | Max600mm | Max700mm | Max.800 mm | Max.900mm |
| Bag length | 65-190mm or120-280mm | 65-190mm or120-280mm | 150-450mm | 160-500mm | 180-600 mm | 210-650mm | 240-700mm |
| Bag width | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330 mm | 120-350mm | 150-400mm |
| Product height | Max.40mm | Max.40mm | Max.75mm | Max.110mm | Max.110 mm | Max.130 mm | Max.150mm |
| Film roll diameter | Max.320mm | ||||||
| Packaging rate | 40-230 bags/min | 40-180bags/min | 30-150Bags/min | 20-150 bags/min | 20-130 bags/min | 20-120bag/min | 20-100 bags/min |
| Power | 220V,50/60Hz,2.4kw | 220V,50/60Hz,2.6kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,2.8kw | 220V,50/60Hz,4.5kw | 220V,50/60Hz,4.5kw |
| Machine size | （L）3770*（W）720*（H）1420mm | （L）4030*（W）770*（H）1420mm | (L)4030*(W)820*(H)1420mm | (L)4030*(W)970*(H)1500mm | (L)4030*(W)980*(L)1500mm | (L)4100*(W)1170*(H)1550mm | (L)4300*(W)1270*(H)1550mm |
| Machine quality | About 500kg | About 580kg | About650kg | About680kg | About720kg | About800kg | About 850kg |
| Remarks | optional air filling device）/optional angle folding） | ||||||
| Film material） | OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film | ||||||
After receiving your inquiry,We will send you the quotation as soon as possible.
