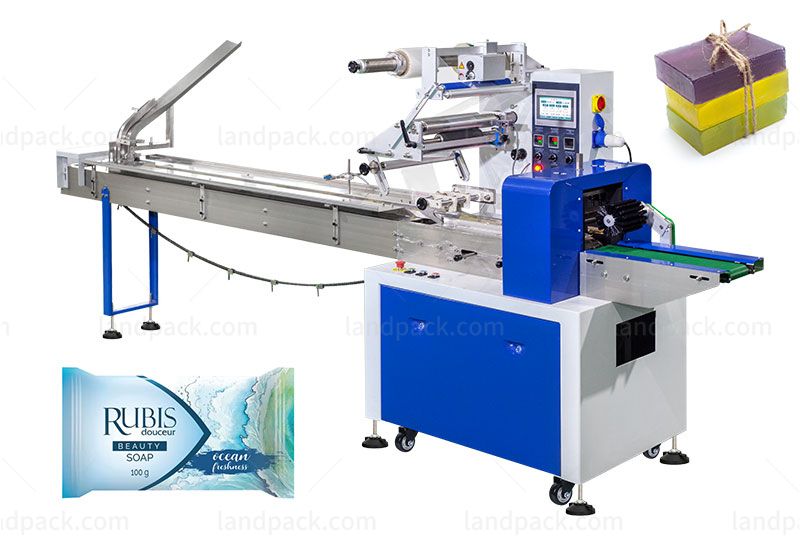

Automatic Horizontal Pillow Bag Soap Flow Wrapping Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application :

Suitable for packaging various kinds of regular objects like soap, dishwashing tables, biscuits, pies , chocolates, bread, instant, noodles, moon-cakes, drugs, daily applications, industrial parts, paper boxes, tray etc.

Kindly Reminder :

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers :Automatic Horizontal Pillow Bag Soap Flow Wrapping Packing Machine

1. Fully automatic feeding the soap and wrapping the soap into bag without worker operate.

2. No product No sealing, The electrical eyes identify the position of the soap and cut the product in the right place.

3.The whole set of machine is controlled by the touch screen and PLC controlling system, it is very easy for you to operate the machine.

ModelLP-250LP-350LP-450LP-600LP-700LP-800LP-900
Film widthMax250mmMax350mmMax450mmMax600mmMax700mmMax.800 mmMax.900mm
Bag length65-190mm or120-280mm65-190mm or120-280mm150-450mm160-500mm180-600 mm210-650mm240-700mm
Bag width 30-110mm 50-160mm50-180mm100-280mm100-330 mm120-350mm150-400mm
Product heightMax.40mmMax.40mmMax.75mmMax.110mmMax.110 mmMax.130 mmMax.150mm
Film roll diameter Max.320mm
Packaging rate40-230 bags/min40-180bags/min30-150Bags/min20-150 bags/min20-130 bags/min20-120bag/min20-100 bags/min
Power220V,50/60Hz,2.4kw220V,50/60Hz,2.6kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw220V,50/60Hz,4.5kw220V,50/60Hz,4.5kw
Machine size(L)3770*(W)720*(H)1420mm(L)4030*(W)770*(H)1420mm(L)4030*(W)820*(H)1420mm(L)4030*(W)970*(H)1500mm(L)4030*(W)980*(L)1500mm(L)4100*(W)1170*(H)1550mm(L)4300*(W)1270*(H)1550mm
Machine qualityAbout 500kgAbout 580kgAbout650kgAbout680kgAbout720kgAbout800kgAbout 850kg
Remarksoptional air filling device)/optional angle folding)
Film material)OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

After receiving your inquiry,We will send you the quotation as soon as possible.
