Application:
It's suitable for automatic packing spice powder, detergent powder, washing powder, bleaching powder, coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

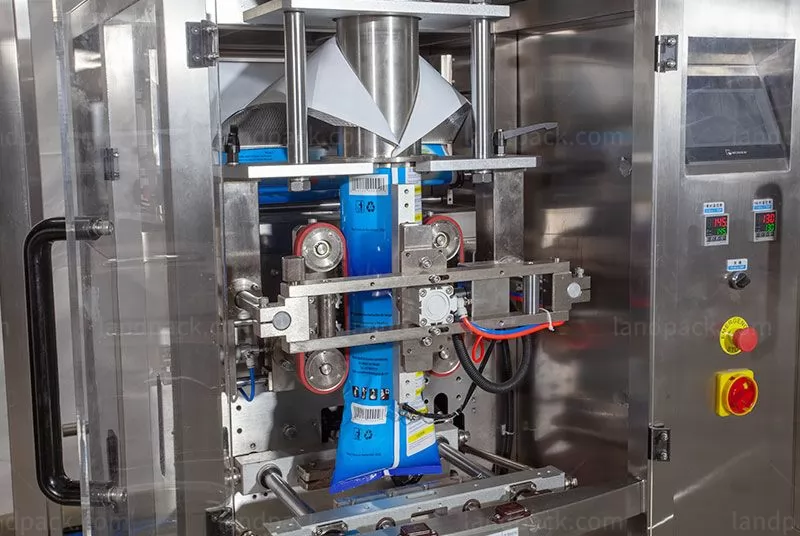

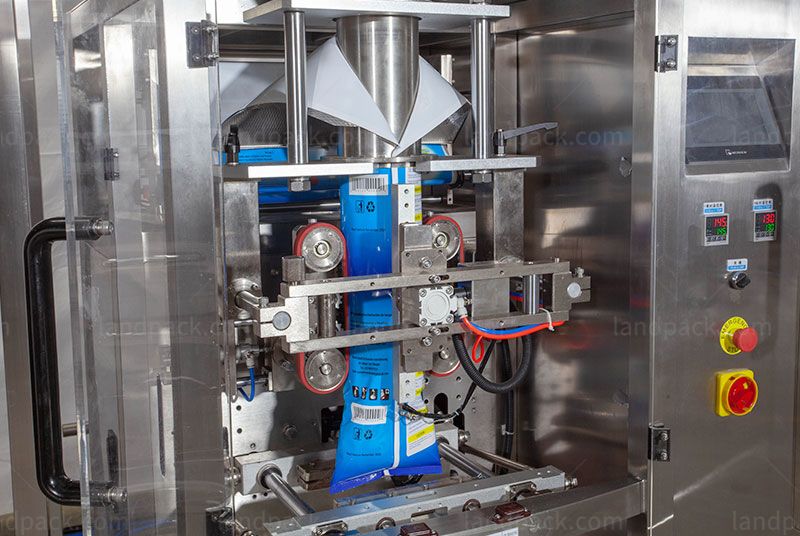

1. The machine can automatically complete the product measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing, and cutting.
2. The machine features easy operation, simple cleaning, and maintenance.
3. High-sensitive fiber optic photo sensors can automatically trace color marks accurately.
4. PLC control system combined with a touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.

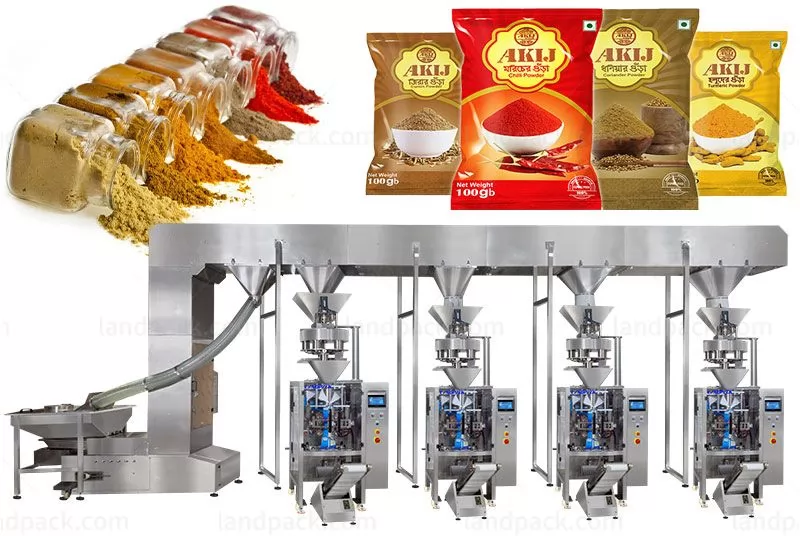

Workflow:
1. Vacuum feeding detergent powder.

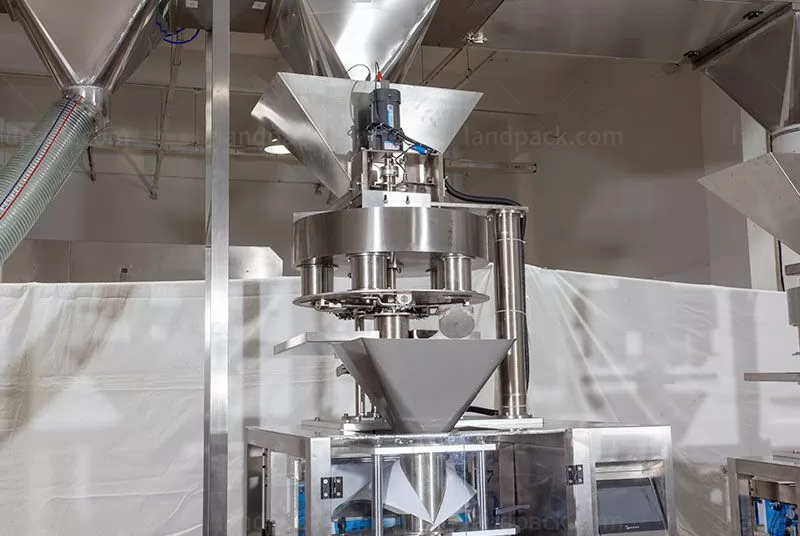

2. Automatic weighing and filling by the electrical weigher.

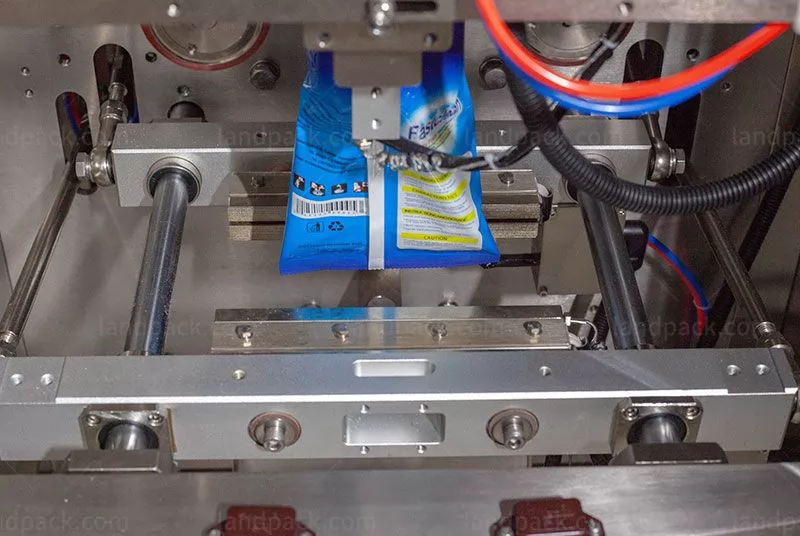

3. Making the pillow bag, heat sealing and output.
| Model | LD-420 | LD-520 | LD-720 | LD-900 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
| Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L |
After receiving your inquiry,We will send you the quotation as soon as possible.
