Application:
High Speed Continuous Spout Pouch Filling Machine(LDH-850L), it is suitable for liquid or semi-liquid, such as packing puree, soy milk, jelly, juice, ice cream, paste, honey, ketchup, yoghourt, laundry detergent, mineral water, edible oil, seasoning, scour etc;
Applicable Pouches: Spout Pouch, Stand-Up Pouch, Doypack, Bags, Pouch, Etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

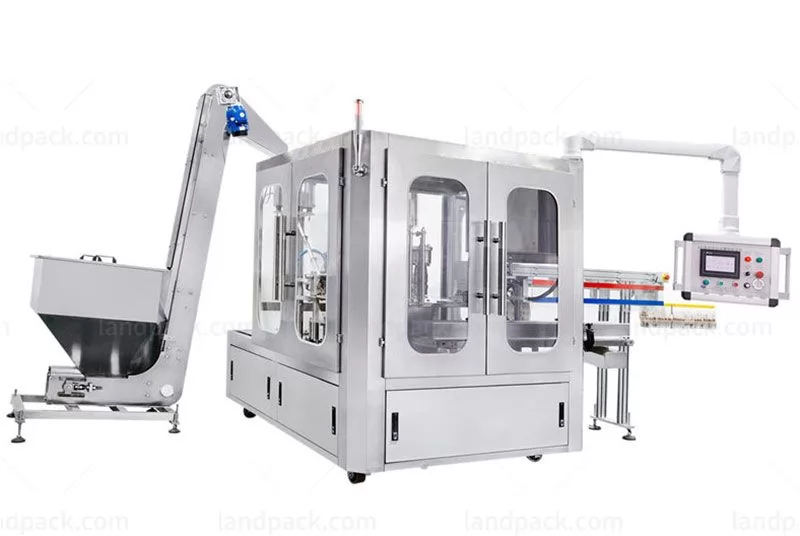

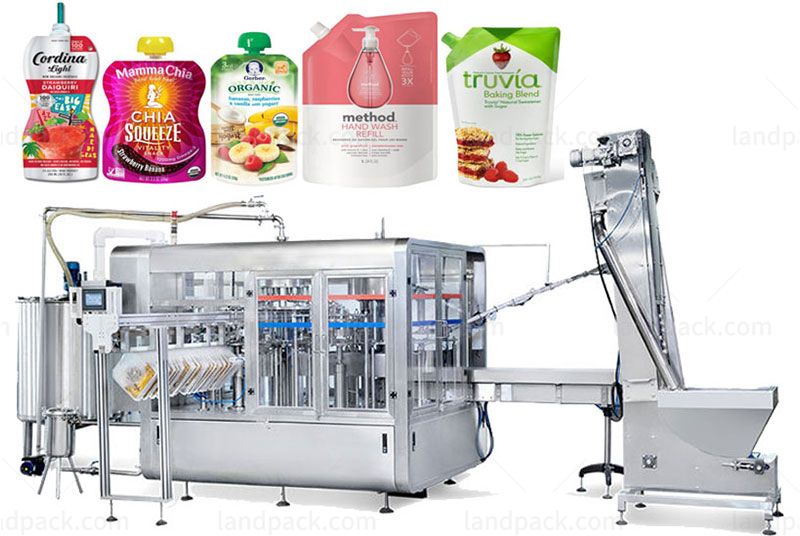

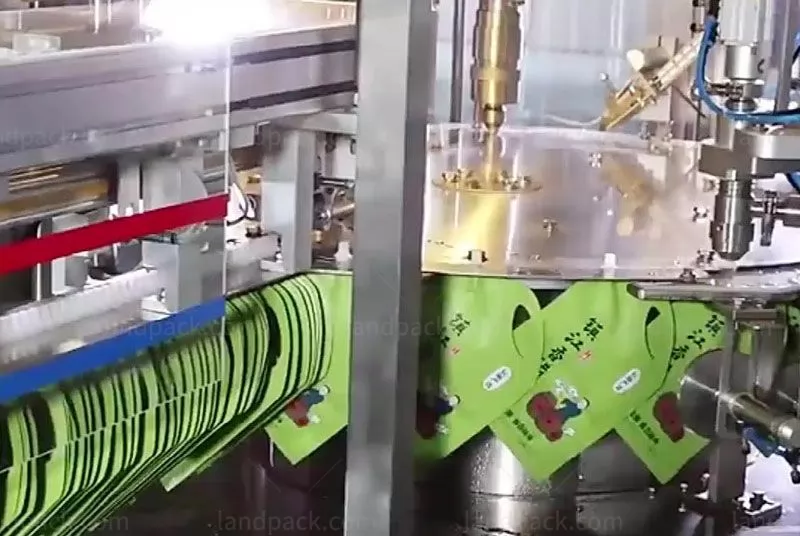

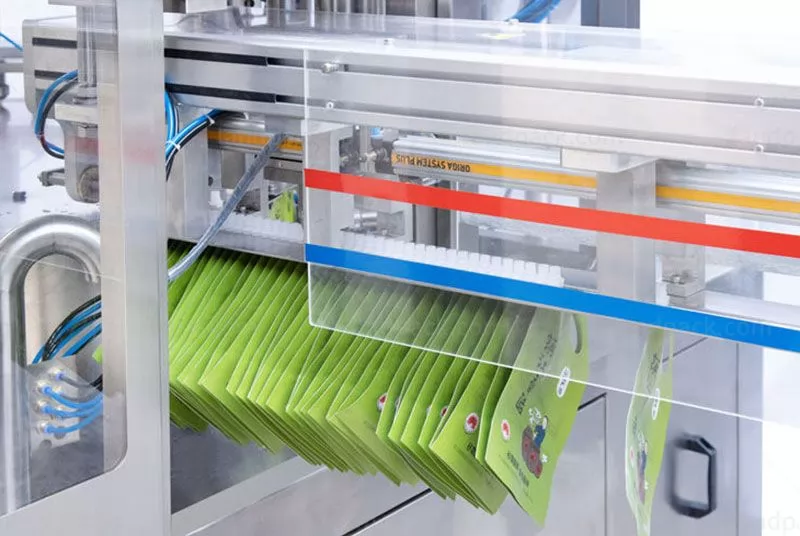

1)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
2)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.
| Model | LDH-850L | Filling range | 30-7500ML |
| packing speed | 5000-7500 bag/H | Rated air pressure | 0.65-0.95(MPa) |
| using electric | AC380V/50Hz | Air consumption | 0.9(m3/min) |
| rated power | 6.0(Kw/H) | Total Weight | 2400(Kg) |
| Pocket diameter | customizable | Dimensions | L2900xW2200xH2200mm |
| Filling accuracy | 1% |
After receiving your inquiry,We will send you the quotation as soon as possible.
