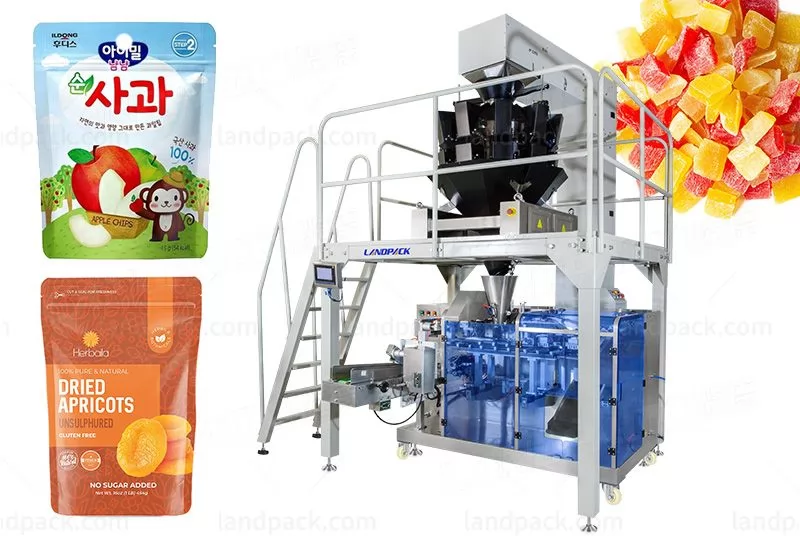

Automatic Horizontal Stand Up Pouch Doypack Packing Machine With Multihead Weigher

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable to use in packing high accuracy and easily fragile material. Such as dried fruit, apple slices, nuts, pet food, puffy food, chips, jelly, candy, pistachio nuts, frozen dumplings, coffee beans, pasta, cotton candy, french fries, rice, small hardware, etc.

Sutable Pouch:  Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: Automatic Horizontal Stand Up Pouch Doypack Packing Machine With Multihead Weigher

1. Automatic feeding product, Speed adjustable.

2. High speed and precision multi heads weigher dosing system.

3. Famous electric parts oversea, Top quality.

4. Customized station can adjust for flat bottom bag and doypack bag.

5. Twice sealing, make the bag more beautiful.

Workflow:

1. Z type elevator

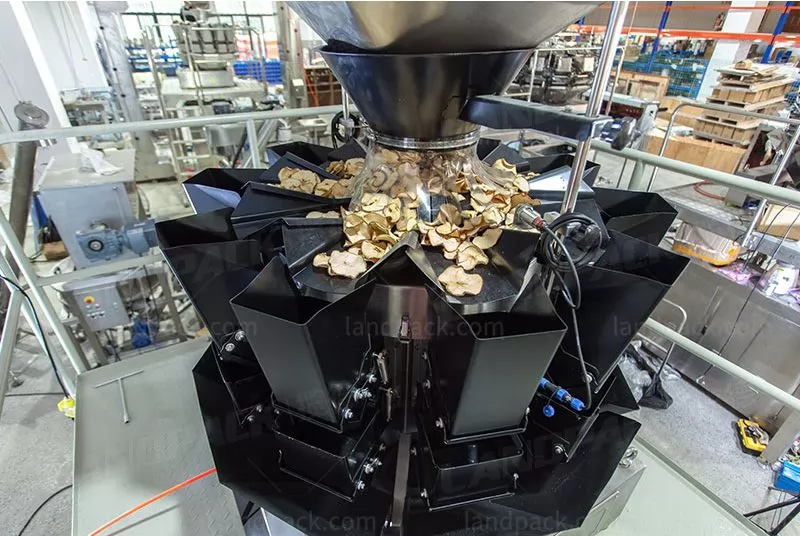

2.10 Head High Precision Weigher with Teflon Coating

3. Horizontal feeding bag conveyor

4. Ribbon coding

5. Opening zipper and bag fully

6. Automatic filling→Nitrogen

7. Sealing-Output

TypeLDSP-210A
Bag Type3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc.
Bag SizeW: 100-210 mm
Filling Range20-1000g
Packing Speed20-50 bags/min (speed is determined by the product filling quantity)
Average precision≤ ±1%
Total Power2.5KW
Weight900 KG
Main standard parts1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperaturecontroller 8. Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
