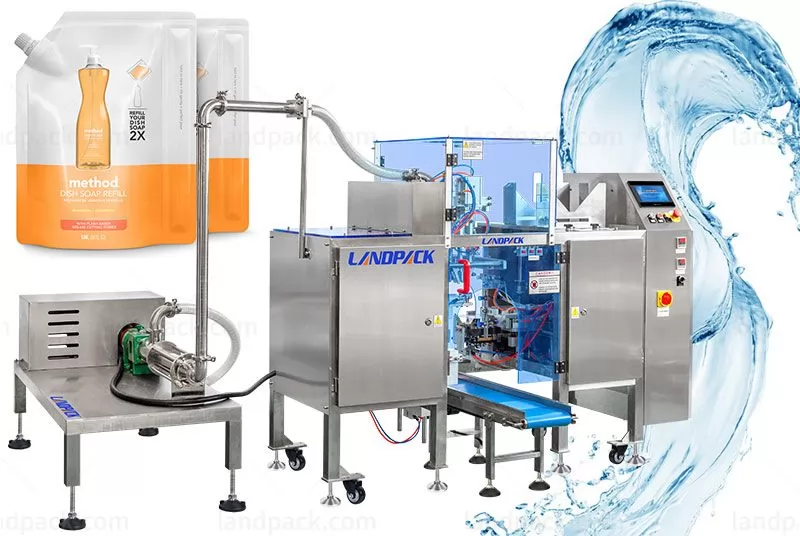

Application:
This stand up pouch packaging machine is widely used in doypack packaging for various liquids and pastes products such as soy sauce, vinegar, fruit juice, ketchup, beverage, tomato sauce, chili sauce, bean paste, washing liquid, etc which in good fluidity.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Easy Operation: The machine is user-friendly, with an advanced PLC system and a touchscreen interface.
2. Automatic Error Checking: It detects pouch-related errors, preventing waste and ensuring reliable packaging.
3. Safety Features: Stops automatically in case of abnormal air pressure or heater disconnection.
4. Adjustable Bag Width: Easily customize bag dimensions to fit different products.
5. Glass Safety Door: Enhances safety by stopping operation when the door is opened.
6. Low Material Loss: Minimizes wastage, maintains high-quality sealing and improves product specifications.
7. Versatile Feeding Options: Supports solid, liquid, thick liquid, and powder materials.
8. Wide Range of Bag Materials: Handles various preformed bags made from film or paper.
| Type | LDB-300 | LDB-430 | LDB-600 |
| Doypack Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | ||
| Doypack Type | 3-side sealing bag, stand-up bag, gusset bag, zipper bag, box bag | ||
| Bag Size | 100-300mm*80-300mm(L*W) | 100-430mm*80-300(L*W) | 380-600mm*250-500mm(L*W) |
| Packing Speed | 0-15 bags/min | 0-10 bags/min | |
| Sealing Type | Straight grain, pitch is 1 mm (Optional reticulate) | ||
| Sealing Width | 10 mm (5-20 mm) can be customized | ||
| Voltage | 220V, Single phase, 50/60 HZ, 1.2 KW | ||
| Air Pressure | 0.65 Mpa | ||
| Air Consumption | 0.3 m³/min | ||
| Size | 1770*600*1230 mm | 1677*1140*1450 mm | |
| Weight | 300 kg | 350 kg | 450 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
