Application:
It is suitable for all kinds of food packaging, such as coffee beans, frozen food, biscuits, cereals, nuts, powdered materials, candy, popcorn, dried fruits, pet food, potato chips, chocolate, dry food, etc.
Sutable Pouch: Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Compact design & Integrated single workstation filling machine.
2. Compatible for Bigger Pouch Bag Filling Max Up to 5kg/bag.
3. Adopts 2 heads 7.5 Ltr (Hopper) Linear weigher.
4. Election SMC brand Vacuum suckers to ensure bag feeding, opening successfully.
5. PLC (Mit Japan) program control, stably and sustainability use.
Work Flow:
1. Automatic Feeding Material

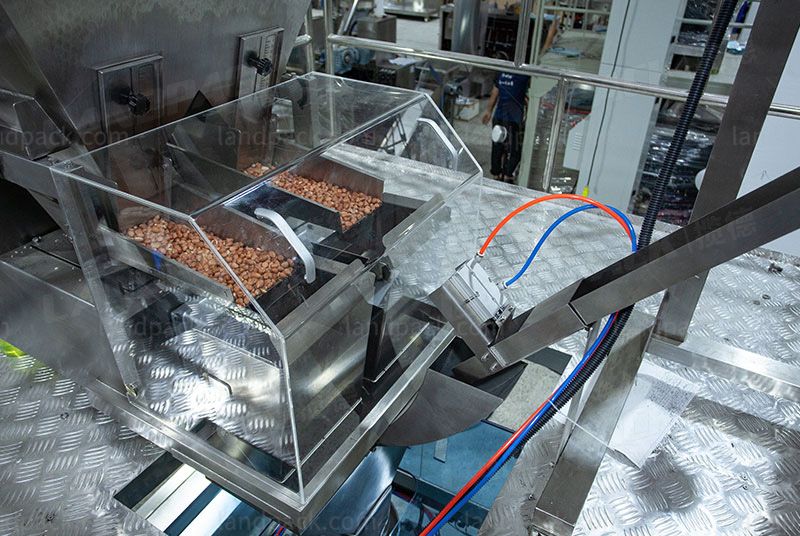

2. Two Heads Electronic Linear Scale
3. Feeding Moisture Proof Packs
4. Ribbon Date Code Printer

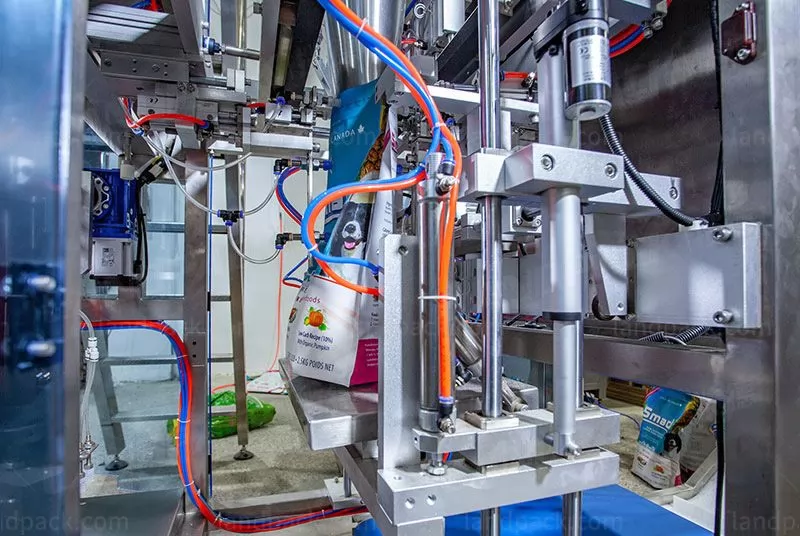

5. Vacuum Suckers giving & Opening Bag

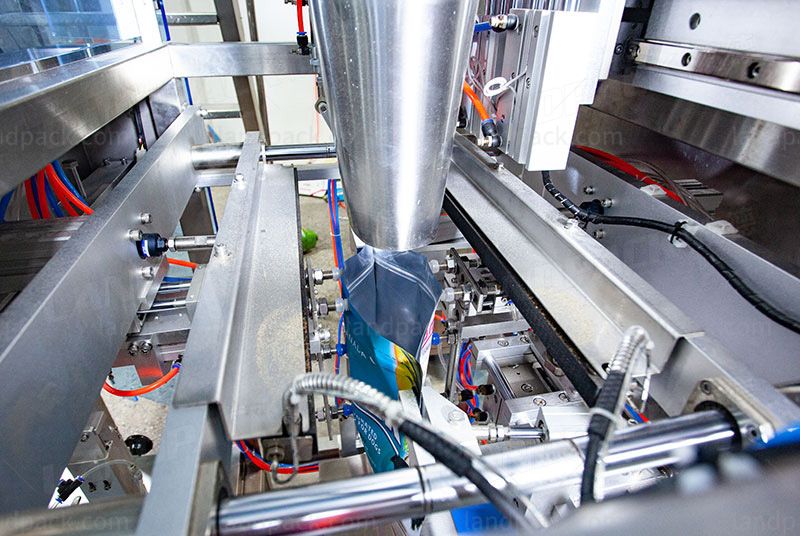

6. Automatic weighing filling material into pouches
7. Automatic heat sealing pouches-finished products
| Type | Automatic Mini Doypack Premade Zipper Pouch Granular Packing Sealing Machine | ||
| LDB-200 | LDB-300 | LDB-430 | |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0~60bags/min | 0~15bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5--20mm) can be customized | ||
| Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
