Application:

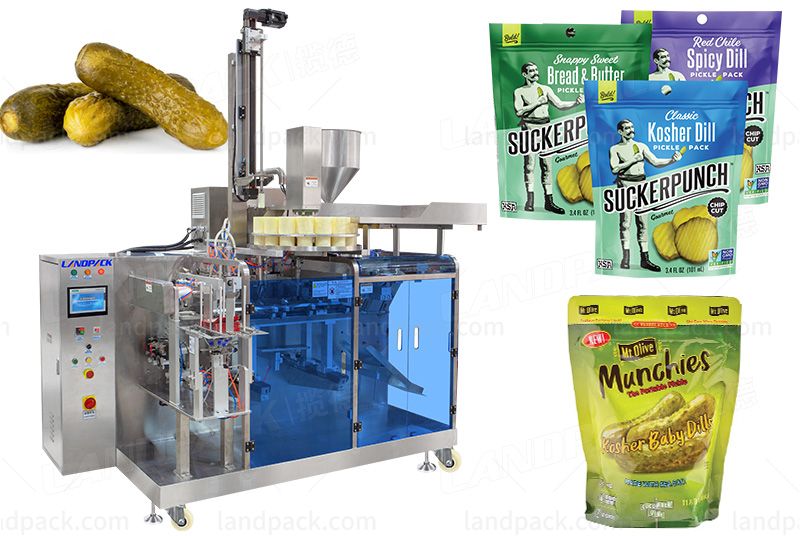

Automatic Stand Up Pouch Filling And Sealing Machine (Single Station) it is suitable for packing pickles products into stand-up pouch doypack pouches premade pouches such as pickles, pickled cucumber, carrot, kimchi, kelp, chili, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Flexible Machine suits for different bag sizes.
2. Stable and high speed running.
3. Simultaneously filling cucumber and sauce liquid, achieving mixed filling, saving labor, and improving production efficiency.
Workflow:

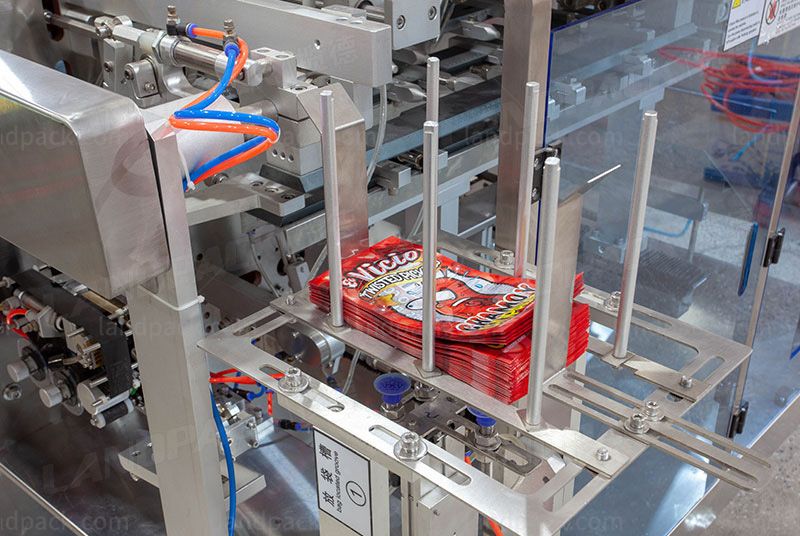

1. Bagging
2. Opening
3. Cucumber Cutting
4. Seasoning Sauce Filling
5. Sealing
6. Finished Product Output
Model | LDSP-210B+L |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
size | W: 100-210 mm |
Filling range | 20-1000g |
Packing speed | 20-50 bags/min（speed is determined by the product filling quantity） |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Weight | 900 KG |
Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
