Application:
This machine is ideal for filling a wide range of powder products, including wheat bran, tea powder, medical powders, chemical powders, flour, milk powder, coffee powder, glucose, and nutritional powders. It ensures accurate, efficient packaging for various industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Full SS304 Machine Frame: Ensures safety and hygiene, ideal for food-grade applications.
2. Servo-Driven Film Pulling System: Provides stable and smooth film handling for reliable operation.

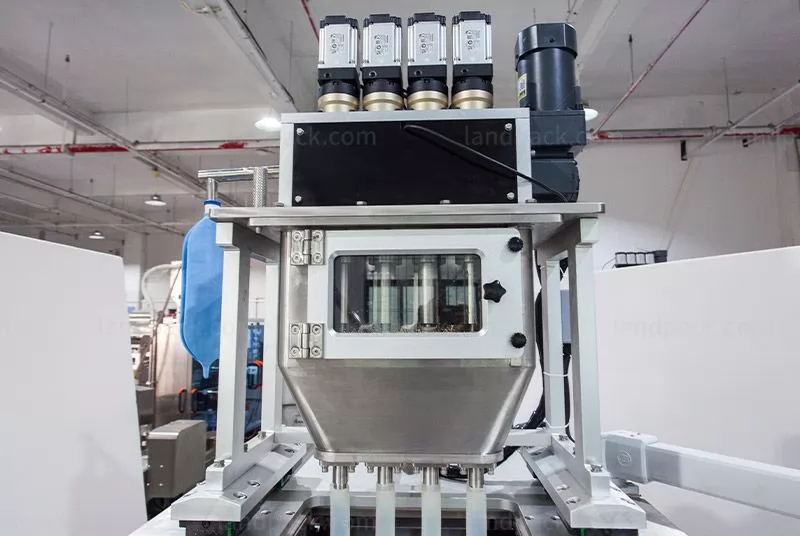

3. Individual Servo for Each Auger Screw: Ensures high-precision measurements and filling accuracy.
4. Bag Forming, Sealing, and Cutting: Uses film rolls to form bags with stable operation, producing consistent packaging.
5. Customizable Punching for Breathe and Hanging Holes: Includes easy-tear options, meeting diverse packaging needs.
6. Clear Coding and Quality Sealing: Delivers precise coding, attractive sealing, and smooth cuts for a professional appearance.
Work Flow:
1. Film roll working
2. Coding dates
3. Punching breathe holes
4. Auger screw measuring
5. Forming stick bags
6. Servo driven film pulling
7. Punching hanging hole
8. Punching easy tear
9. Cutting and printing the finished sample showing
Model | LD-280BK | >LD-560BK |
| Track Number | 4-6 Tracks | 4-12 Tracks |
| Filling Method | 1. Volumetric cup, 2. Weight | |
| Capacity | Max.35 cycles/min | |
| Sachet Size | L: 50-180mm; W:17-30mm | |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Backsealing/ Stick bag | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa, 0.8m*min, 2.8kw | 0.8 mpa, 0.8m*min, 4.1kw |
