Application:

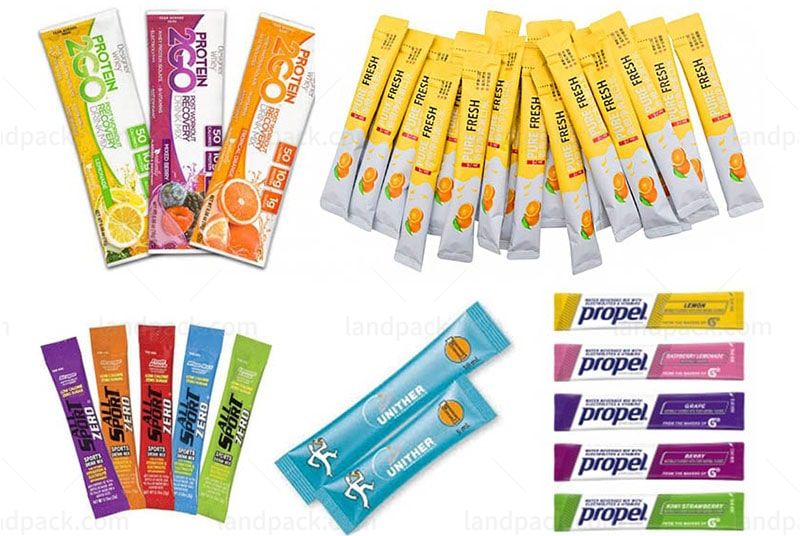

Widely applied for food,Medicine,chemical liquid products such as Mouthwash, Ketchup, flavoring, Sauce ,Pasty, Shampoo, salad dressing, cream, body wash liquid and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

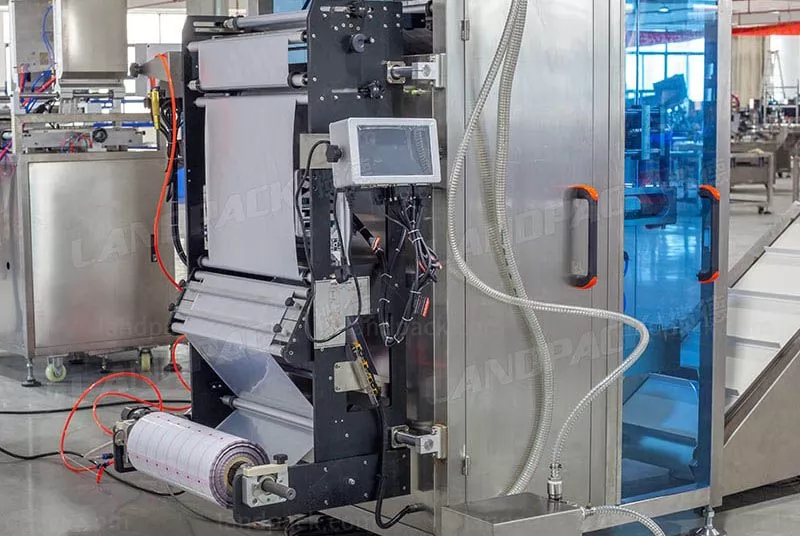

External film releasing mechanism: simpler and easier installation of packing film.
Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
| Model | LD-280BKL | LD-560BKL |
| Track Number | 4~6 Track | 8~12 Track |

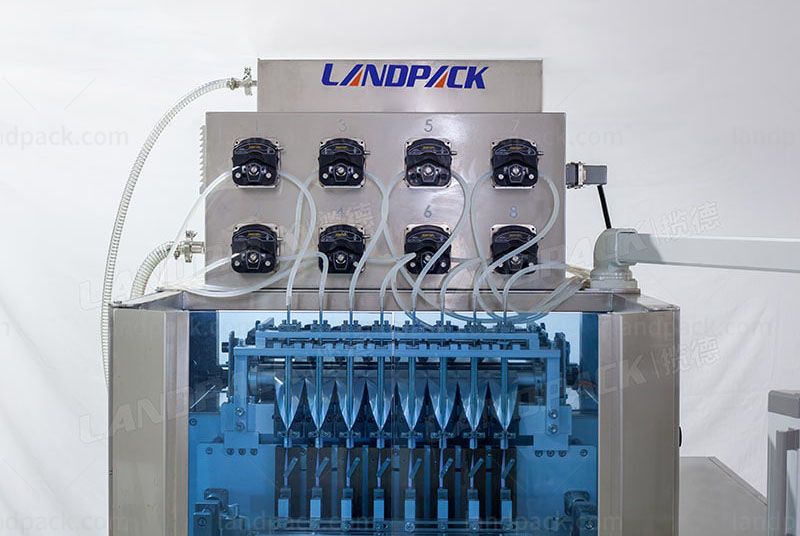

| Filling Method | 1.Piston pump; 2.Peristaltic Pump; 3.Volumetric cup | |
| Capacity | Max.35 cycle/min | |
| Sachet Size | L:50--180mm; W:17-30mm | L:50--180mm; W:17--30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Backsealing/ Stick bag | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw |
After receiving your inquiry,We will send you the quotation as soon as possible.
