Application:

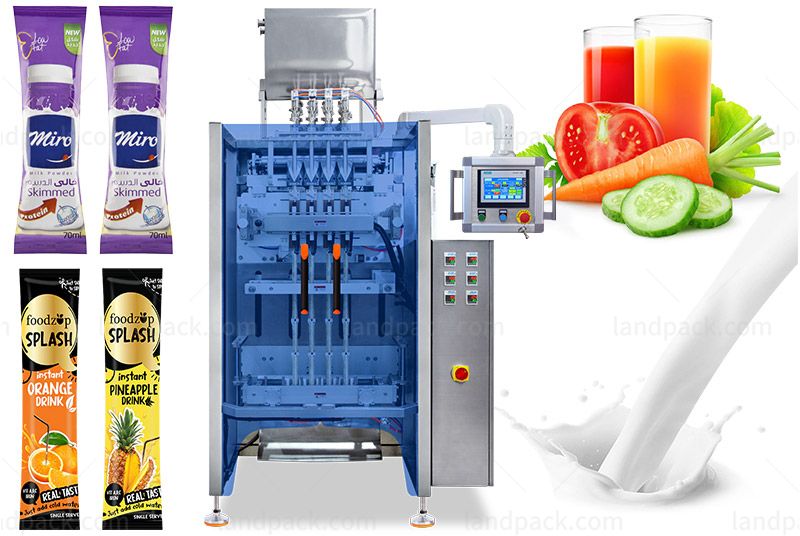

The multi-line back sealing granule packing machine is designed for packaging a wide variety of liquid and semi-liquid products, including milk, juice, mouthwash, ketchup, sauces, flavorings, pastes, shampoo, salad dressing, creams, and body wash. It ensures efficient and reliable packaging for diverse liquid products in the food, personal care, and pharmaceutical industries.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. PLC and HMI Operation: User-friendly man-machine interface for efficient control and monitoring.

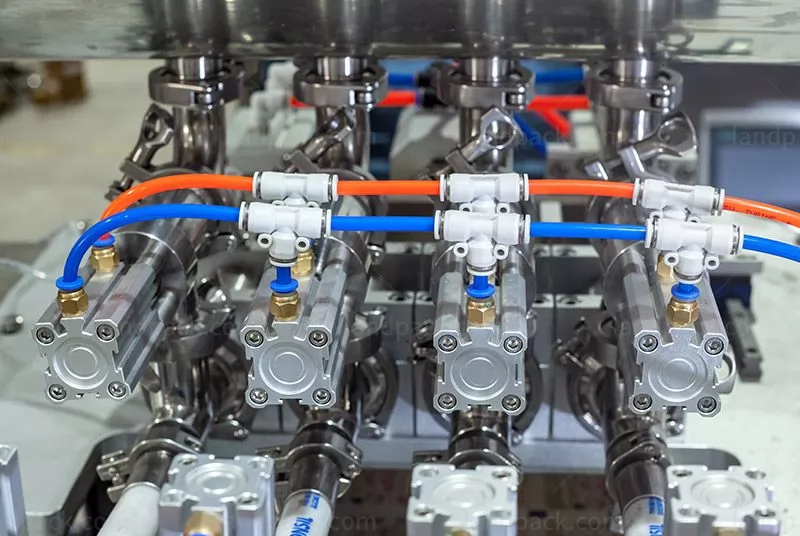

2. High-Precision Piston Pump: Air cylinder-controlled metering pump ensures accurate filling.
3. Multi-Lane Filling: 4-lane filling device supports sachets with a maximum length of 180mm.
4. Accurate Counting: The photoelectric sensor provides fast and precise counting.
5. UV Sterilization: Sterilizes the film before entering the bag former for enhanced hygiene.
6. 4-Head Date Printer: Prints expiry, production, and batch numbers efficiently.
7. Customizable Flat Cutting: Tailored flat cutting options for end customer requirements.
8. Built-in CIP Cleaning System: Simplifies cleaning and maintenance.
Workflow:

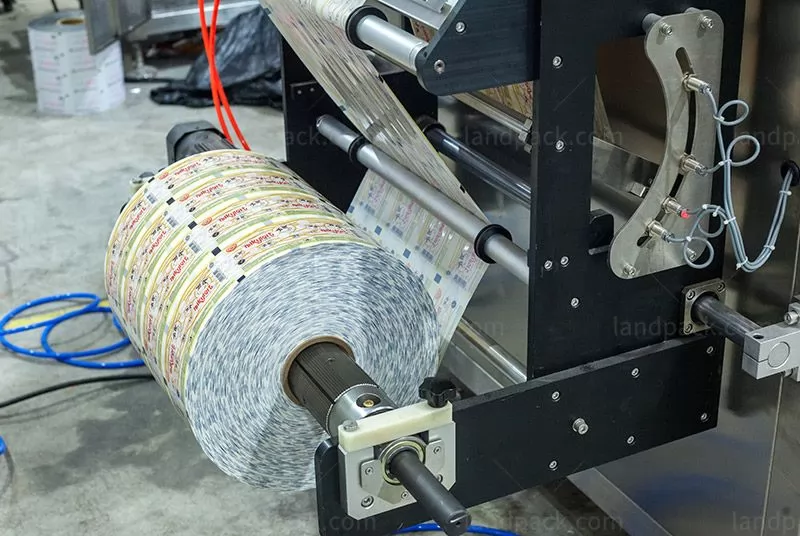

1. Air shaft loading roll film width 560mm
2. UV sterilization
3. Piston pump metering servo motor control fast Connect for Clamp Style
4. 4 Lanes filling Nozzle with Anti-drip Design
5. Cylinder control cutting film
6. Ribbon date printer
7. Multi rollers system runs film smoothly and stably

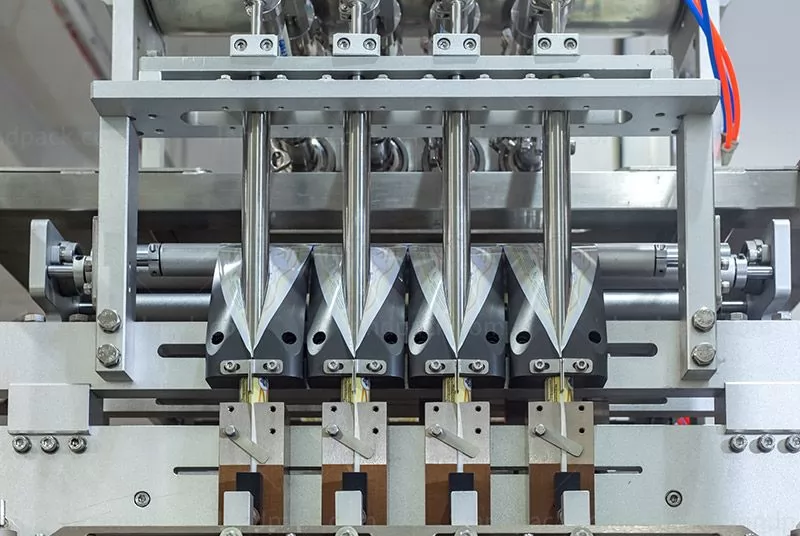

8. Bag former for making the pillow sachet
9. Horizontal Sealing with teflon coating
10. Flat Cutting Sytem for better shape
11. Finished Conveyor
| Model | LD-280BKL | LD-560BKL |
| Track Number | 4-6 Track | 8-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump; 3. Volumetric cup | |
| Capacity | Max.35 cycles/min | |
| Sachet Size | L: 50-180mm; W: 17-30mm | L: 50-180mm; W: 17-30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Back sealing/ Stick bag | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa, 0.8m³/min; 2.8kw | 0.8 mpa, 0.8m³/min; 4.1kw |
After receiving your inquiry,We will send you the quotation as soon as possible.
