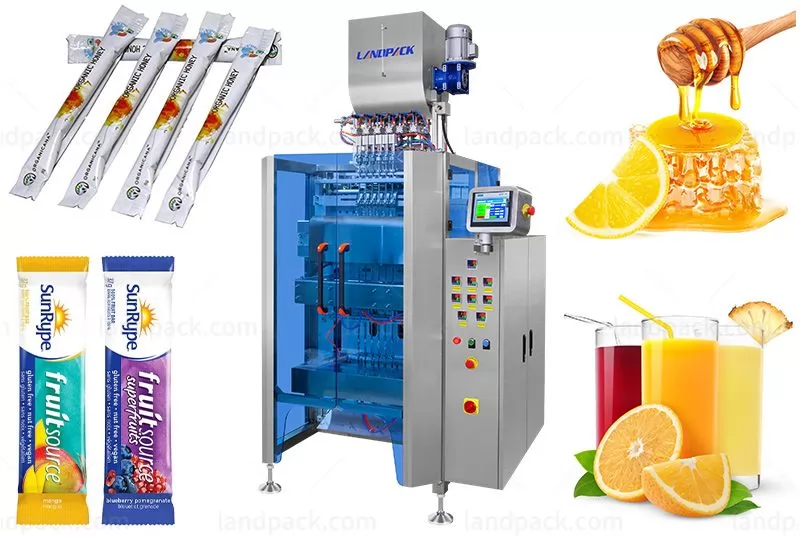

High Precision Multilane Liquid Stick Filling Packing Machine

Application:
High-precision multilane liquid stick filling packing machine suitable for Many Kinds of Liquid Products, such as mouthwash, ketchup, flavoring, sauce, pasty, shampoo, salad dressing, cream, body wash liquid, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:

1. Multi lanes machines can produce multi lanes bags at the same time.

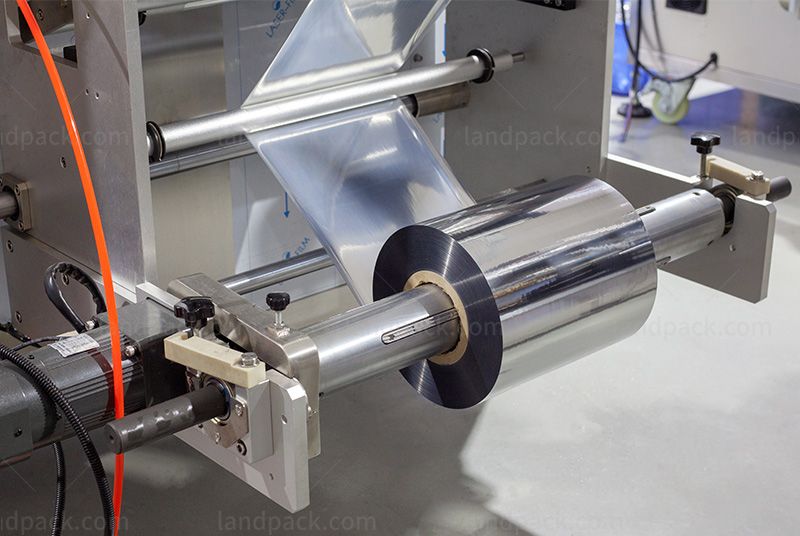

2. Machine main function: automatic split film at the right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

5. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at the precise position.

6. PLC controller, high function and control the whole machine’s work steps.

7. One machine produces different products at the same time, save cost.

8. With easy to-tear cutting knife and blowing device, the sealing is more beautiful.

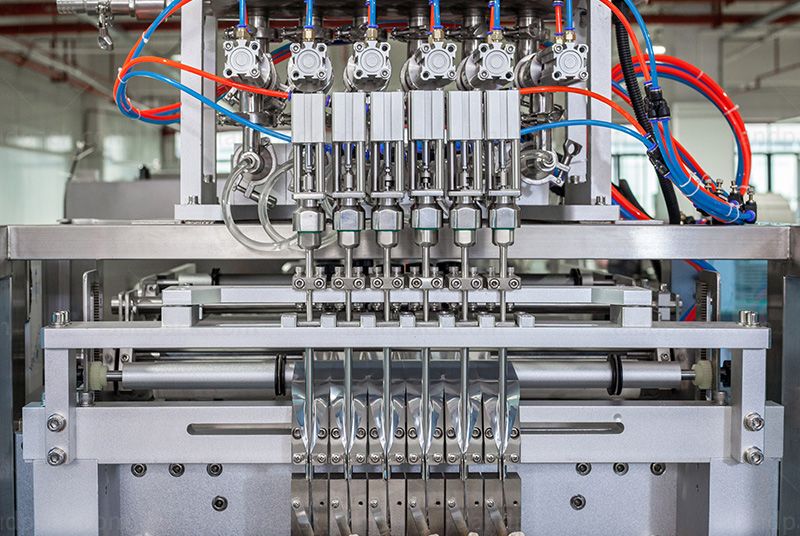

9. Piston filling, high filling accuracy, good leak-stopping effect, and clean sealing.
