Application:

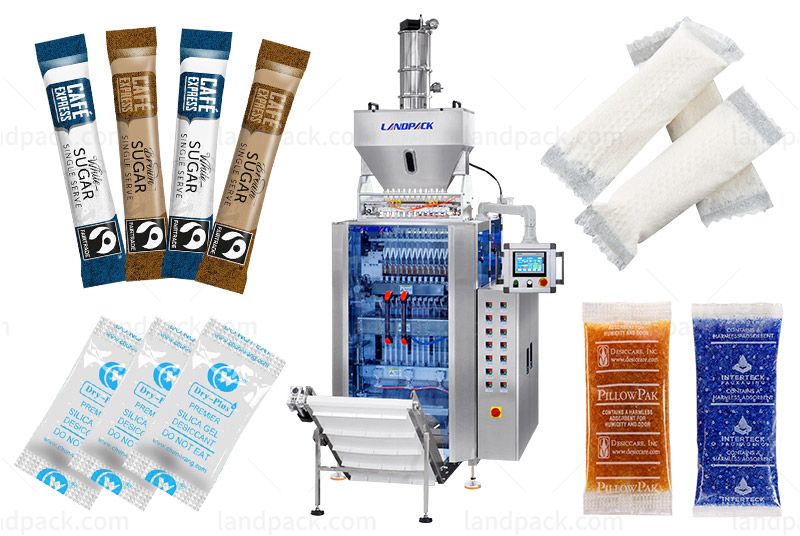

This multi-lane machine expertly forms bags, measures, fills, seals, and creates easy-tear notches, ideal for packaging in the food, cosmetics, and pharmaceutical industries. Perfect for silica desiccant, sugar, salt, pepper, washing powder, and various granules, ensuring efficient and precise packaging.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. High-Quality Construction: Made entirely of stainless steel 304, the machine is durable, easy to clean, and resistant to wear.
2. Precision Swinging Cup Filling: Ensures accurate filling with adjustable cup volume, suitable for various product quantities.
3. Servo-Controlled Film Pulling and Sealing: Guarantees precise film movement and clean cutting for a professional sealing effect.
4. Intelligent Counting System: One-button quantity setting on the touch screen seamlessly integrates with back-end processes, enhancing overall efficiency.
Workflow:

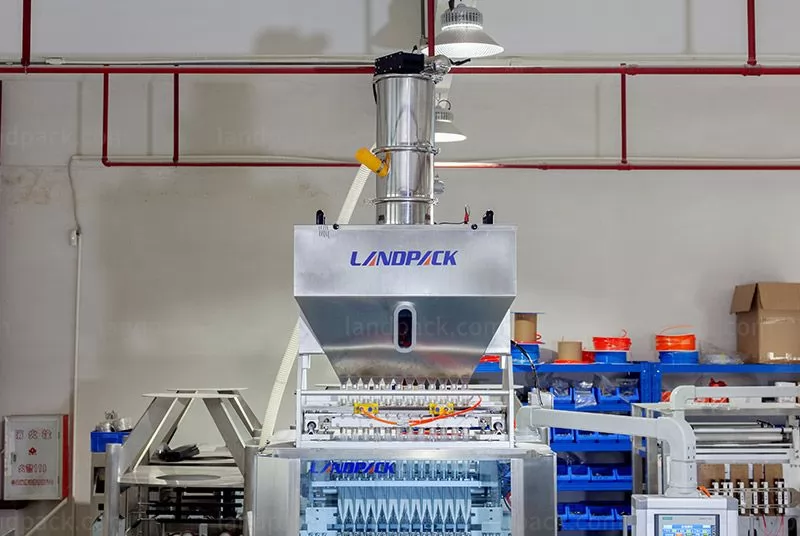

1. Storage tank for holding granule
2. Swinging cup for weighing and filling

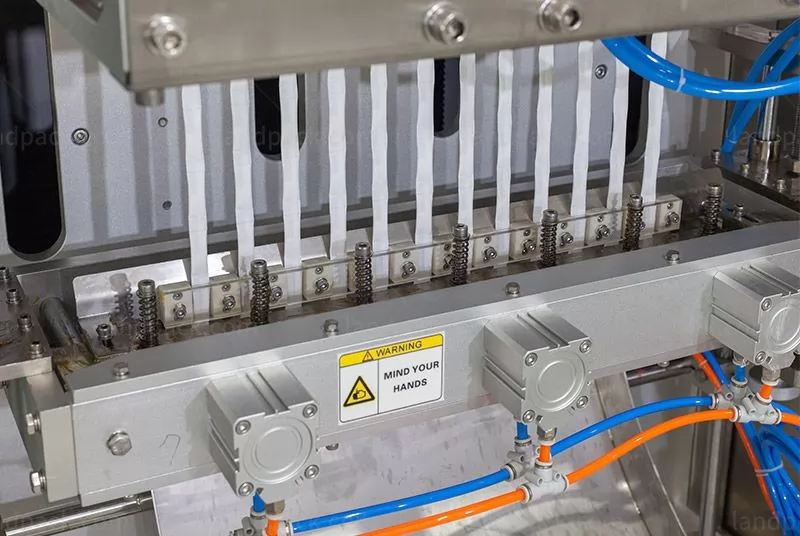

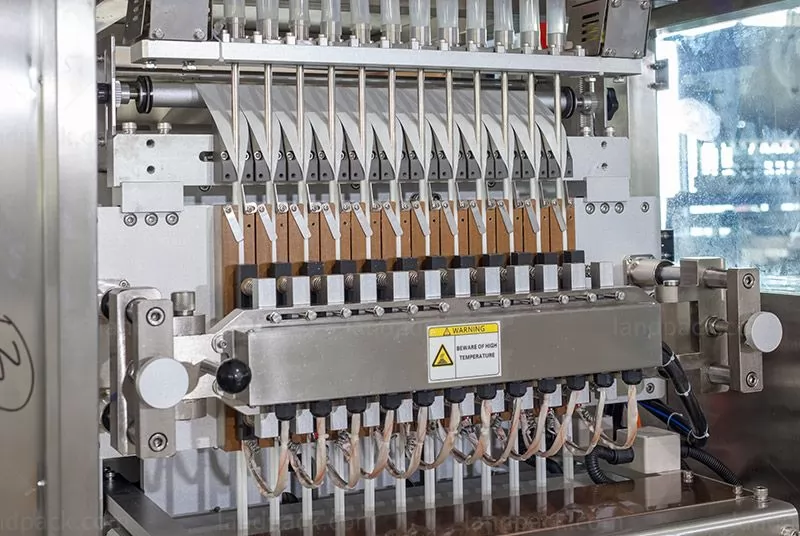

3. Servo control film pulling and sealing
4. Simple setting counting quantity on touch screen
5. Type easy tear cut , nice and functional design
| Model | LD280BP | LD560BP | LD720BP |
| Lane number | 4-6 Lanes | 8-12 Lanes | 8-12 Lanes |
| Filling method | 1. Vlumetric cup, 2. Weigher | ||
| Capacity | Max.35 cycles/min | ||
| Sachet size | L: 50-180mm; W: 17-30mm | ||
| Film weight&thickness | Max.280mm, 0.007-0.10mm | Max.560mm, 0.07-0.10mm | Max.720mm, 0.07-0.10mm |
| Sealing type | Back sealing/stick bag | ||
| Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Round cutting | ||
| Air&power | 0.8Mpa, 0.8m3/min; 3.5kw | 0.8Mpa, 0.8m3/min; 5.5kw | |
| Dimension&weight | 1385*918*2005mm, 350kg | 1685*1300*2005mm, 550kg | |
After receiving your inquiry,We will send you the quotation as soon as possible.
