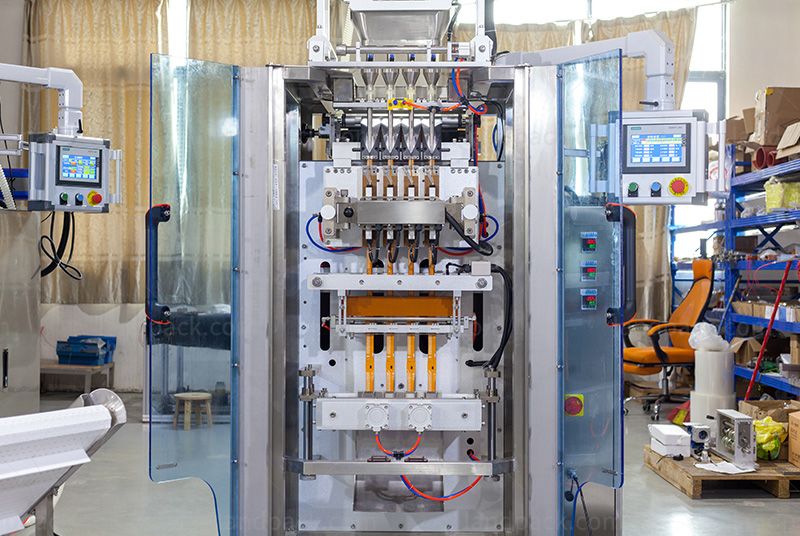

Multi Lane Medical Powder Nutrition Powder Coffee Stick Pack Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

High accuracy powder multi track packing machine, it is suitable for many kinds of powder products, such as tea powder, medical powder, chemical powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    stick powder packing machine

1. Sealing the bags well without any waste film, because of multiple rolls to pull the film for running smoothly, the cutter is made of high hard stainless steel, and it seals the bag with clear texture, with no film stick on the sealing device.

2. The fillet bag has an easy-to-tear mark place, so the customers open the bag more easily and more convenient.

3. Low maintenance cost: The machine is controlled by the timing belt and independent temperature control table for each heating pipe, which easy to find and solve the problem.

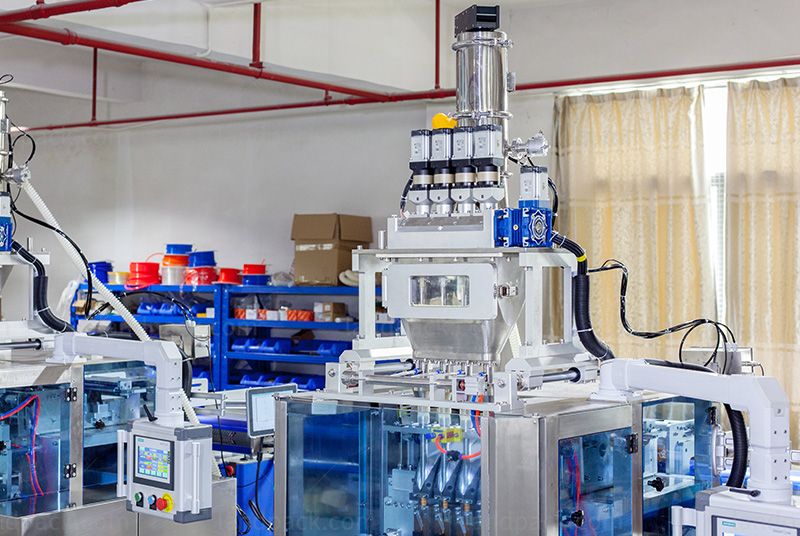

4. Powder vacuum feeding machine to transport the powder from the storage hopper to the measurement device automatically.

5. The machine would pull the film, print the code by laser, form the bag, measure and fill the powder into the bag, seal, and output the finished products automatically. No need for workers to operate such a function, while the machine is working.

ModelLD-280BFLD-560BF
Lane number4-6 Line8-12 Line
Filling Method1. Volumetric cup;   2. Weigher
CapacityMax.35 cycles/ min
Sachet SizeL: 50-180mm; W: 17-30mmL: 50-180mm; W: 17-30mm
Film width & ThicknessMax.280mm, 0.07-0.10mmMax.560mm, 0.07-0.10mm
Sealing typeBack sealing/Stick bagBack sealing/Stick bag
Cutting type1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular
Air & Powder0.8Mpa, 0.8m3/min, 3.5kw 0.8Mpa, 0.8m3/min, 5.5kw
Dimension & weight1385*918*2005mm, 350kg1685*1300*2005mm, 550kg

After receiving your inquiry,We will send you the quotation as soon as possible.
