Application:
Suitable for Long Strip liquid side sealing packaging, such as ice lollies, juice, water, drink, milk, waterm, shampoo, ketchup, jelly, sauce,etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Famous brand PLC control system,large touch screen,convenient to operate;
Advanced design,high precision and fast speed;
No film alarm,saving materials and no wasting film;

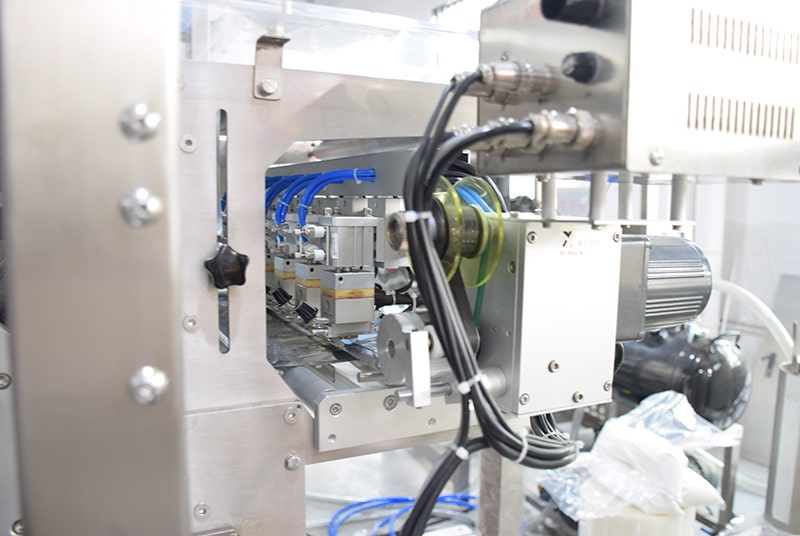

Photoelectric tracking system for precise bag length and position of film

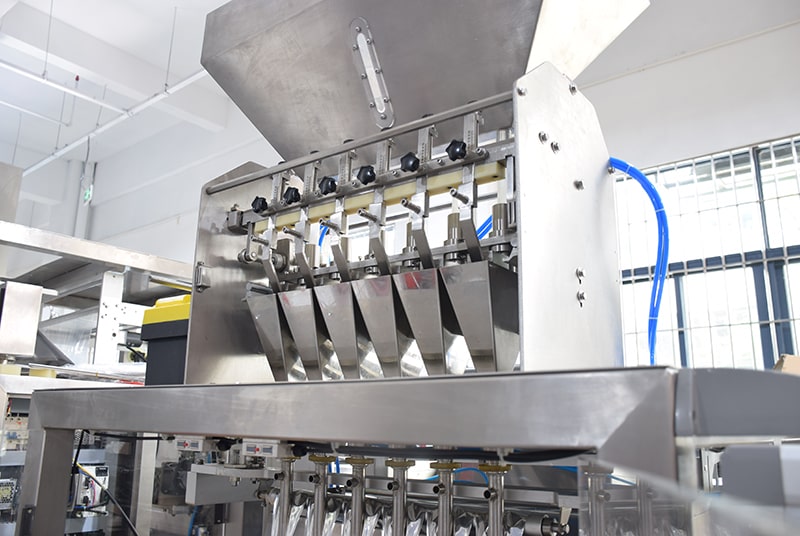

Can equip with liquid conveyor to conveyor the liquid from bottom to the top pump on the machine. Can make one line one favor/color drink,if needs.
Machine case is made of 304 stainless steel,which is more good for food.
| Model | LD-480YL |
| Lane number | 4--6lanes |
| Packed item | Liquid |
| Capacity | 10--40bags/lane/min |
| Measuring method | Measuring pump |
| Bags size | Length:120--400 mm Width:35--60 mm |
| Film width | Max.480mm |
| Film thickness | 0.05--0.10mm |
| Sealing type | 4 side sealing |
| Cutting type | Flat cutting |
| Printer type | Ribbon stamp printer or Hot stamping date coder (please noted before order) |
| Film material | Laminated film,like PET/PE,OPP/PE,NY/PE.etc. |
| Air consumption | 0.8Mpa 0.8m3/min |
| Power source | 1N+PE/50HZ/AC220V/4.5KW (please noted before order) |
| Dimension | L1555 x W1686x H2800mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
