Application:

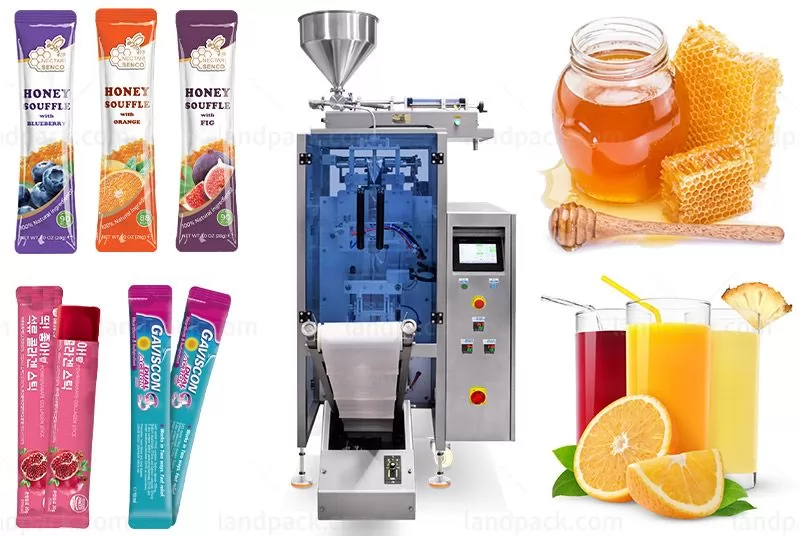

Discover Landpack's liquid stick pack packaging machine, ideal for energy liquids, beverages, juices, medicines, and more. Efficient and precise packaging for liquids like olive oil, ketchup, sauces, shampoo, and creams.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

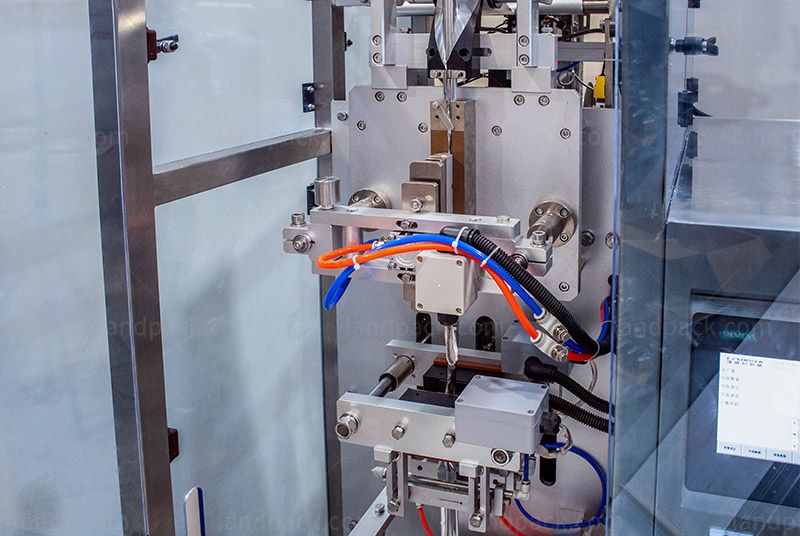

1. Smooth Sealing: Reciprocating structure ensures tighter, smoother seals.
2. Unique Bag Shapes: Irregular bag mold creates more attractive packaging.

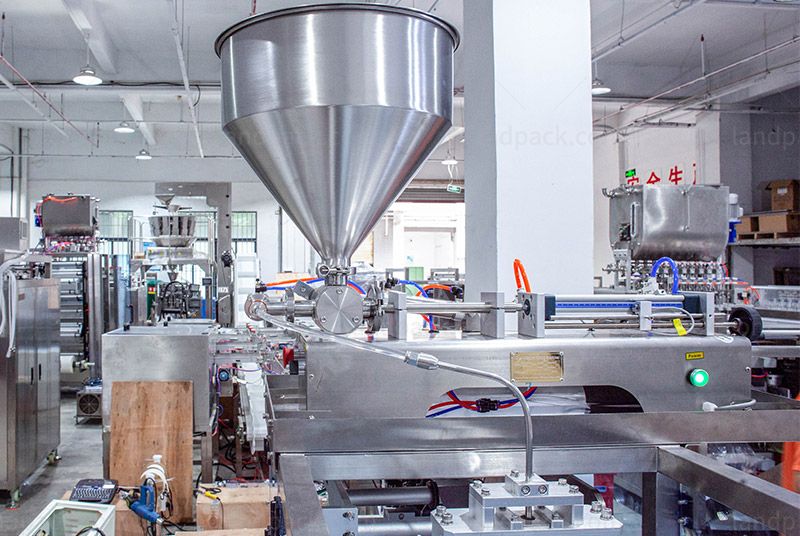

3. Precise Measurement: The piston pump is ideal for thick, non-stick liquids.
Workflow:
1. A piston pump to measure the weight
2. Filming
3. Coding
4. Bag forming
5. Filling
6. Sealing
7. Finished Product Conveyor
Name | Landpack Single Lane Stick Pack Machine | |
Model | LDBK-140L | |
| Dosing Method | A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product) | |
| Hopper type | A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank | |
Packing speed | 20-45 bags/min (1200-2700bags/hour) | |
Bag size range | L: 40-150mm; W: 15-100mm | |
Bag Seal type | Stick /pillow | |
| Cut type | A: Teeth cut; B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm) | |
Film thickness | 0.05-0.1mm | |
Film material | Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper | |
Drive method | Electricity + Pneumatic | |
Control style | PLC control system+English/Chinese screen (Or customized panel) | |
Power | 1.8KW | |
Power supply | AC220V 1phase 50Hz/ AC380V 3phases 50Hz | |
| Air consumption | 0.4cbm/min 0.8Mpa | |
Dimension | 750*710*1780 mm | |
HS CODE for export | 84223030 | |
After receiving your inquiry,We will send you the quotation as soon as possible.
