Application:
It is suitable for packaging fine particles with good uniformity, such as sugar, salt, snus, oatmeal, salt, seeds, rice, sesame, glucose, coffee powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

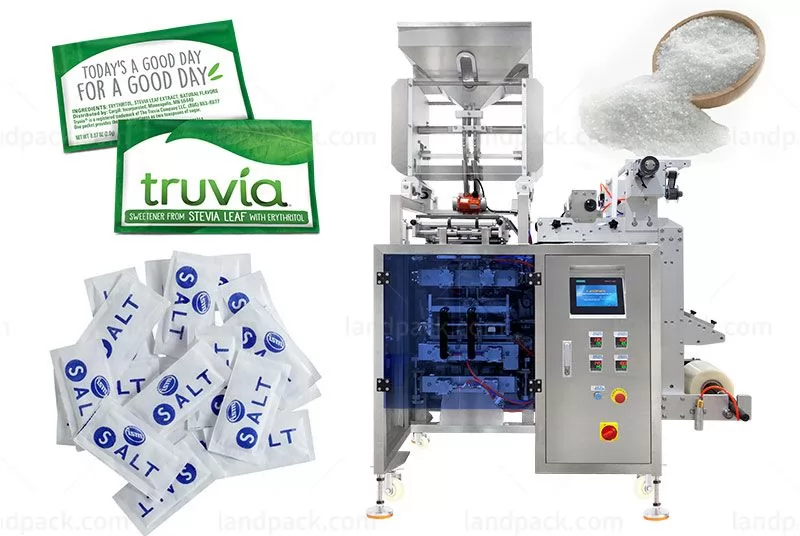

1. This is a 2-lane sugar sachet filling machine designed for efficient and accurate weighing and filling operations.
2. Equipped with a Siemens PLC and touch screen with servo control, ensuring stable operation with a speed of 40-60 sachets per minute.
3. Each machine is optimized for one sachet size to maximize output, with multiple model options available based on different sachet sizes and production needs.
Workflow:
1. Automatic Film Pulling
2. Automatic Date Printing
3. Automatic cup filling
4. Automatic sealing and cutting
| Model | LDFS-480G |
Production capacity | Max. 210 bags/min |
Diameter of film roll | maximum 300mm |
Bag width | the widest 35-60 mm |
outer bag size | the longest 120mm widest 60mm product packaging |
Air pressure | 0.5-0.7Mpa |
Machine noise | less than 80db(A)decibel |
Heating power | 2.8 Kw |
Total weight of the machine | 300KG |
Machine size | total length 950mm* total width 1470mm* total height 1750mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
