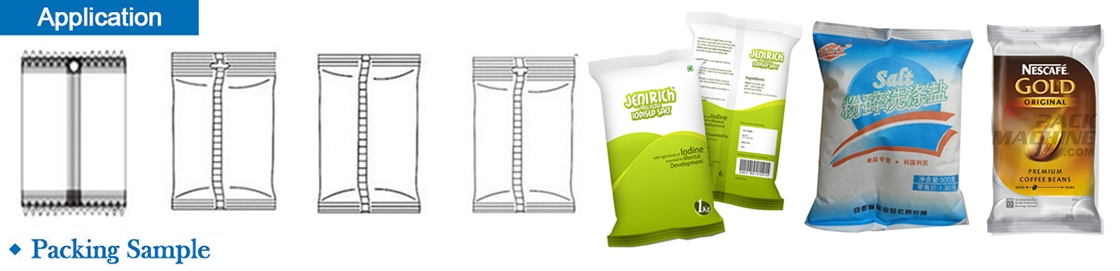

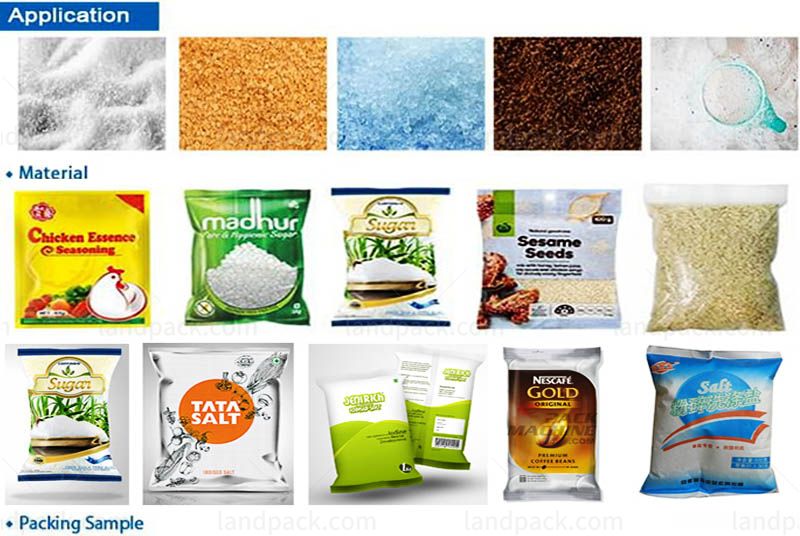

Application:
Suitable For Packaging Big Pouch Of Fine Particles Such As Sugar And Salt.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Microcomputer control system adopts double vibration infeeding, importing instrumentation, technology and easy operation.
Due to the sealed balance body with full sta inless steel, it has dustproof and anticorrosive function.

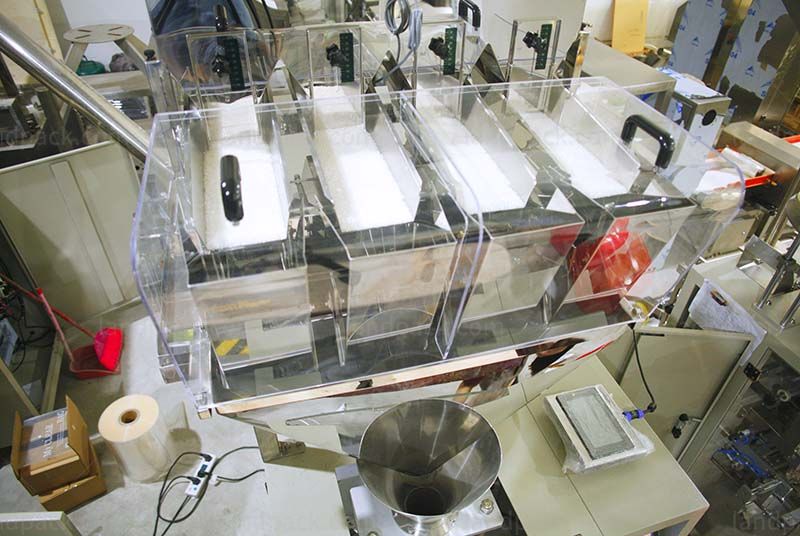

The measure hopper can be disassembled quickly. cleaned and repaired conveniently.
Combine with all kinds of repacking form follow requirements of clients, to ex pand the scop of weighing.
High compatibility. it is easy to combine with other packaging machine.
High precision structure for simple and easy operation and repair.
PLC touch screen, step motor control, easy and accurate to set the bag length.
lt's owns simple circuitry and outstanding function.
The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
| Type | LD-420 | LD-520 | LD-720 |
| Film Width | Max.420mm | Max.520mm | Max.720mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Film Thickness | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
| Measuring Range | 150-1500ml | 2000ml | 4000ml |
| Packaging Rate | 10-60bag/min | 10-60bag/min | 10-55bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm |
| Machine Quality | About 650kg | About 680kg | About 750kg |
| Optional Device | 1.Date coding printer, 2.Air-filling device, 3.Punching device, 4.Tear notch device | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
