Application:
- The Automatic Baby Talcum Powder Bottle Weighing Filling Capping Machine Line is a high-precision solution designed for accurate and efficient powder filling in industries such as cosmetics, pharmaceuticals, food, and health supplements. It is ideal for talcum powder, protein powder, milk powder, body powder, seasoning powder, glucose, cocoa powder, coffee powder, rice powder, spice powder, and solid drinks.
- Featuring an advanced weighing system, the machine ensures precise dosing, reducing material loss and maintaining consistency in every filled container. It supports various bottles and jars made from different materials, offering flexibility for diverse packaging needs.
- With automated capping and sealing, this machine guarantees a sealed, hygienic, and tamper-proof packaging process. The intelligent PLC control system with a user-friendly interface allows for easy operation, adjustment, and monitoring. Its dust-proof design and high-speed filling capability make it a reliable choice for manufacturers seeking to enhance production efficiency and product quality.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. GMP-Compliant Stainless Steel Construction: The powder filling line is made of high-quality stainless steel, ensuring hygiene and durability.
2. Smart PLC Control with Touch Screen: User-friendly interface allows for precise adjustments and easy operation.
3. Anti-Leak & Anti-Dust Filling System: Single-head powder filling machine equipped with advanced leak-proof and dust-prevention technology.
4. Automatic Cap Feeding System: Efficient cap feeder designed for single cap size with a seamless flow tracker.

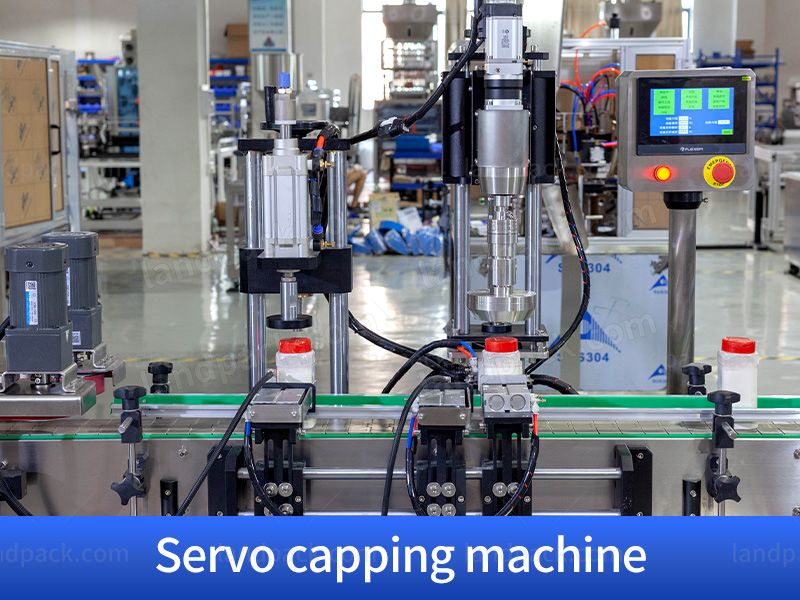

5. Servo-Driven Capping Machine: Ensures tight and secure capping with high precision and consistency.
6. Optional Foil Sealing Machine: Provides an additional sealing option for enhanced product protection and shelf life.
7. Adjustable Filling Capacity: Designed for 1-5kg powder filling applications, suitable for various production needs.
8. Efficient Production Speed: Capable of handling 5-10 bottles per minute, optimizing workflow efficiency.

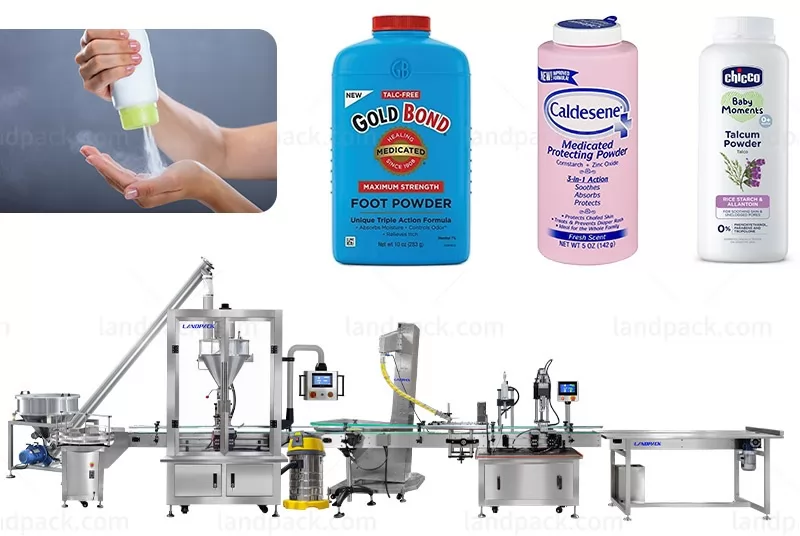

Workflow:

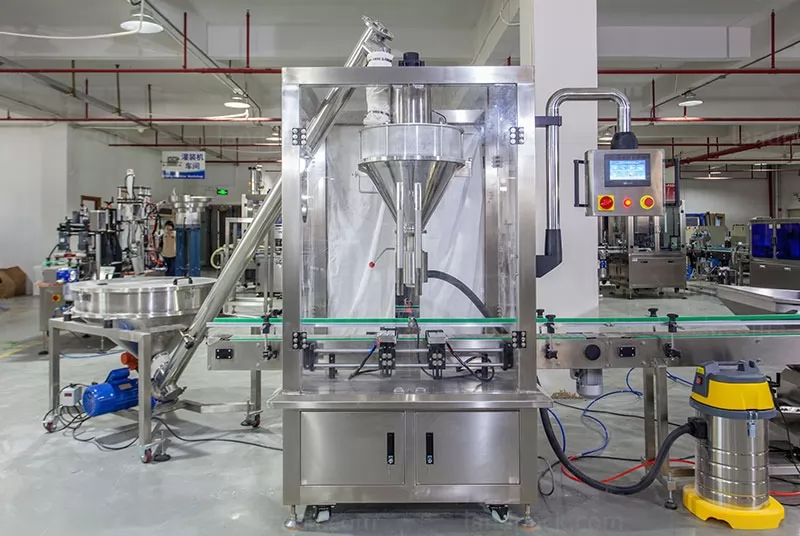

1. 230L storage Hopper with Auger Conveyor Feeding the powder
2. Servo Motor for Measuring the Different Powder Capacity 1-5kg can be customized

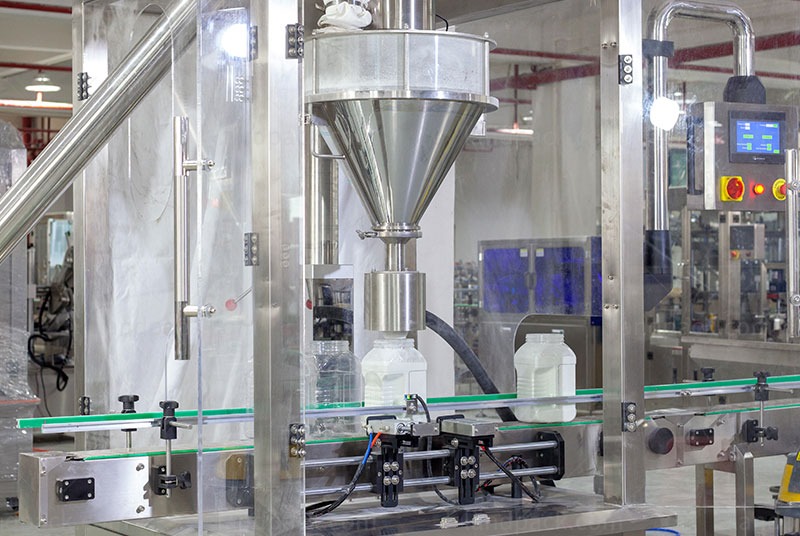

3. Powder Filling Machine With Anti Leak Anti-Dusting Device
4. Cap Feeder Automatically

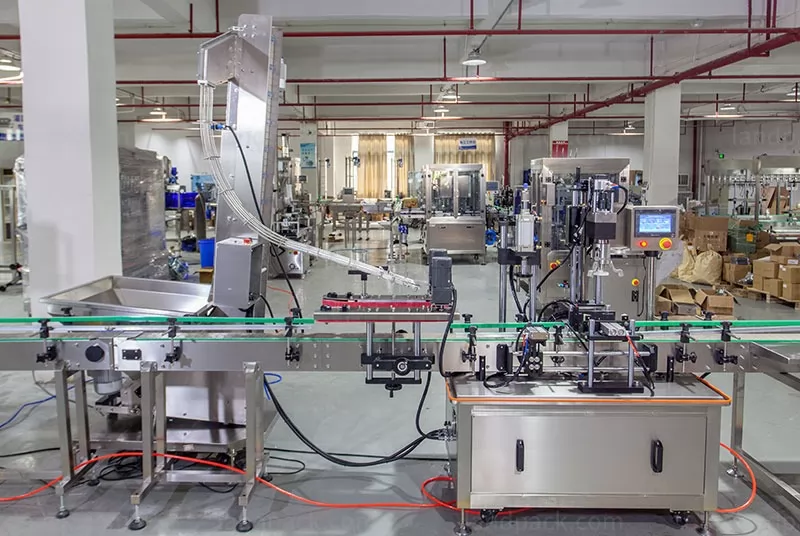

5. Servo Capping Machine with Pressing Device
6. Collection Table For finished Bottles

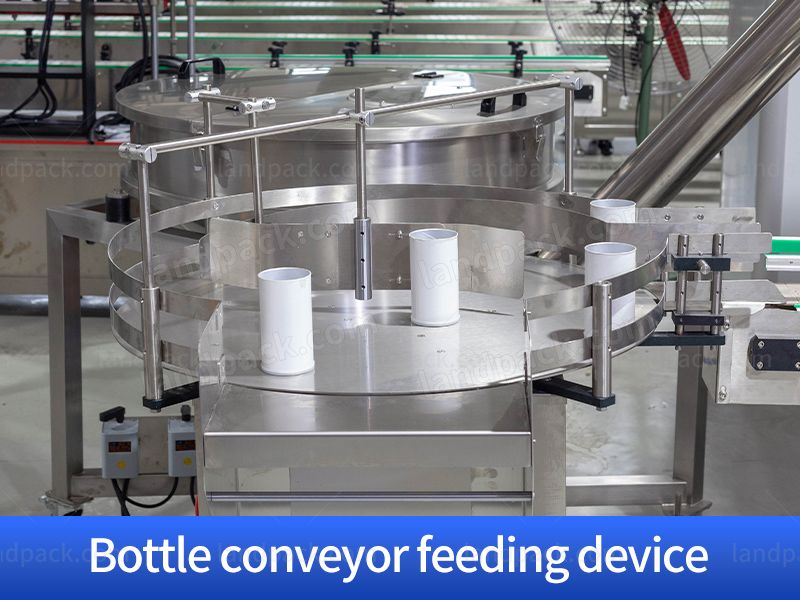

| Bottle conveyor feeding device | ||||
 | Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | |||
| Turntable Diameter | 800mm (Could be customized) | |||
| Suitable Bottle Diameter | 20-100mm | |||
| Suitable Bottle Height | 30-320mm | |||
| Working Speed | 40- 60 bottles/min (Could be customized) | |||
| Package Size | 1230*1010*1260mm (Could be customized) | |||
| Gross Weight | 141kg | |||

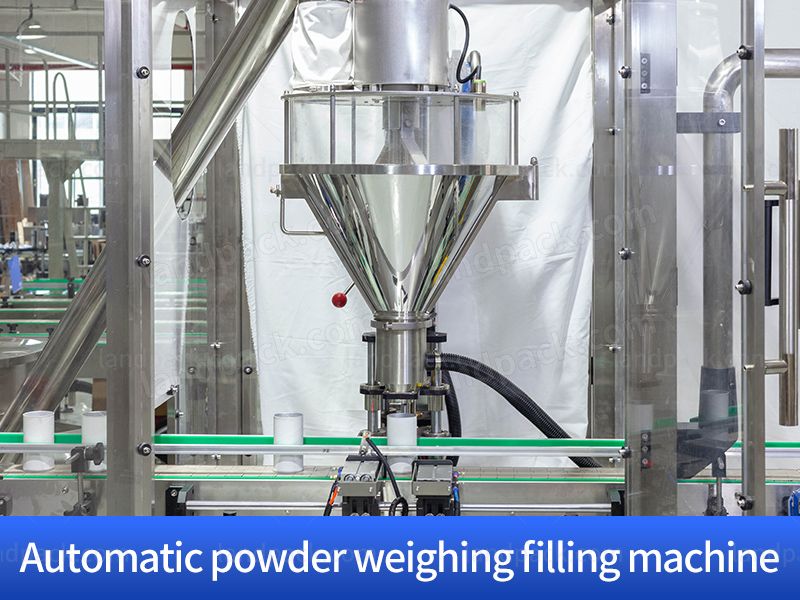

| Automatic powder weighing filling machine | ||||
 | Model | LFP-01（Single Head Powder Filling） | LFP-01（Single Head Powder Filling） | LFPD-50-30（Double Head Powder Filling） |
| Filling Weight | 10-5000g(Replace screw specifications) | 10-5000g(Replace screw specifications) | 100-2000g | |
| Bottle diameter | Φ30-Φ140mm(Could be customized) | Φ30-Φ140mm(Could be customized) | Φ60-Φ135mm | |
| Bottle Height | 50mm-200mm(Could be customized) | 50mm-200mm(Could be customized) | 601-260mm | |
| Capacity | 10-20Bottles/min | 20-40Bottles/min | 10-25bottles/min | |
| Measure accuracy | ≤500g,≤±1%；≥500g,≤±0.5% | ≤500g,≤±1%；≥500g,≤±0.5% | 100-1000g,≤±2g；≥1000g,≤±5g | |
| Power | 2.5KW | 5KW | 4.5KW | |
| Hopper Capacity | 50L | 50L | 50L，30L | |
| Power | 220V,50HZ | 220V,50HZ | 220V,50HZ | |
| Voltage | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | |
| Weight | 350kg | 550kg | 500kg | |
| Capping Machine | ||||
 | Model | LDBZ-2C(Double heads servo capping) | LDBZ-C(Single head servo capping) | LDBZ-3C(Three heads servo capping) |
| Capacity | 40 Bottles/min | 30Bottles/min | 50Bottles/min | |
| Bottle diameter | Φ25mm-Φ100mm（Could be customized） | Φ25mm-Φ100mm（Could be customized） | Φ25mm-Φ100mm（Could be customized） | |
| Bottle sealing height | 40mm-200mm（Could be customized） | 40mm-200mm（Could be customized） | 40mm-200mm（Could be customized） | |
| Power | 2.5KW | 2KW | 3KW | |
| Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ | |
| Air pressure | 0.5-0.7Mpa | 0.4-0.6Mpa | 0.7-0.9Mpa | |
| Weight | 350kg | 300kg | 400kg | |

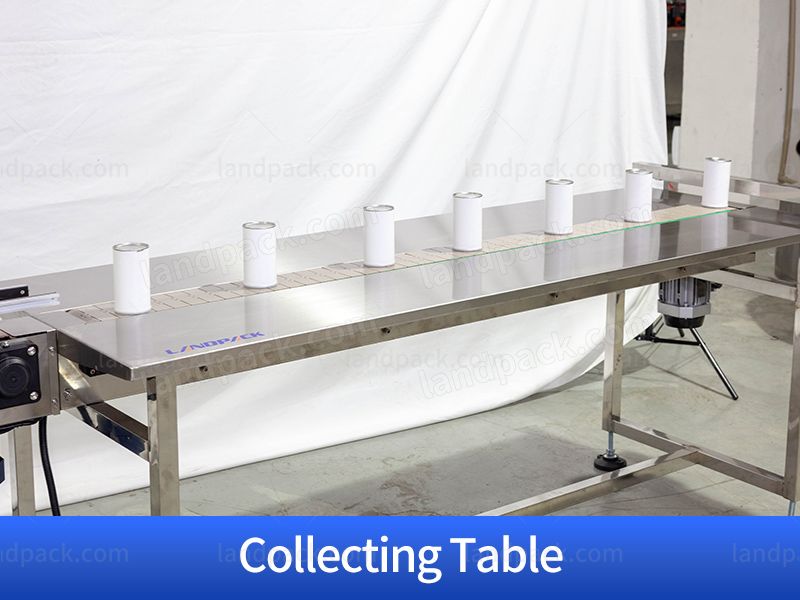

| Collecting Table | ||||
 | Capacity | 30-50Bottle | ||
| Material | Stainless Steel 304 | |||
| Dimension | 300*2000*100mm | |||
| Weight | 200KG | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
