Application:
This series auger filling machine suit for powder and small granular products filling into containers, such as cans or bottles, widely used in the talcum powder,spice,coffee powder ,wheat flour , starch powder , agriculture pesticide, dyestuff and so on.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examber:

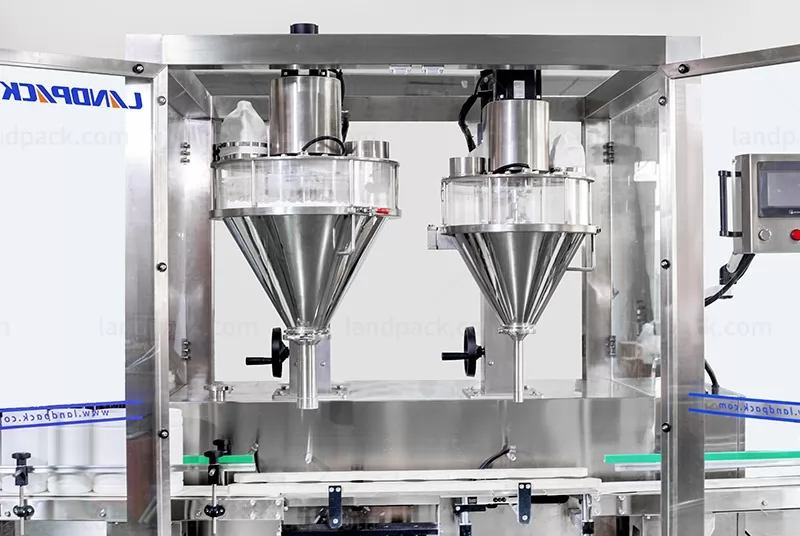

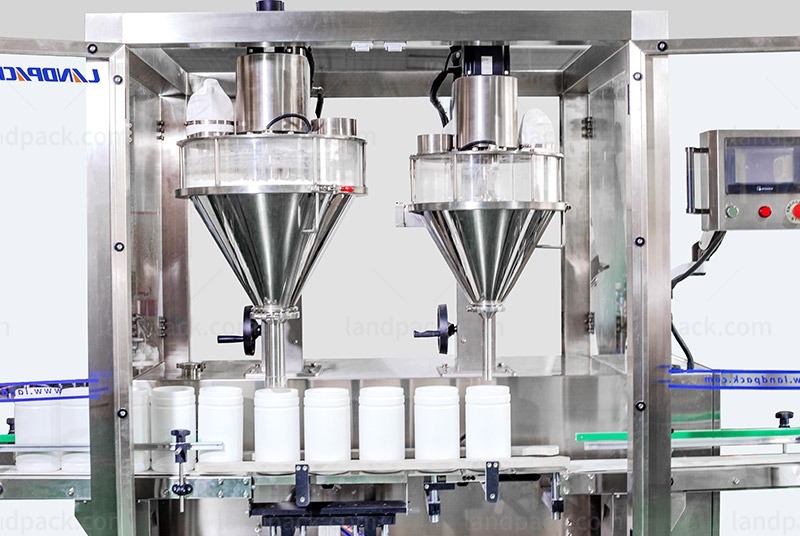

♦ 25/50L side opening hopper, easy to clean.
♦ Servo motor drives the auger, ensuring high accuracy.
♦ Have one stir on the hopper, and assure the powder fills in the auger.
♦ Reasonable mechanical structure, easy to change size parts and clean up.
♦ Through changing accessories, the machine is suitable for various powder products.

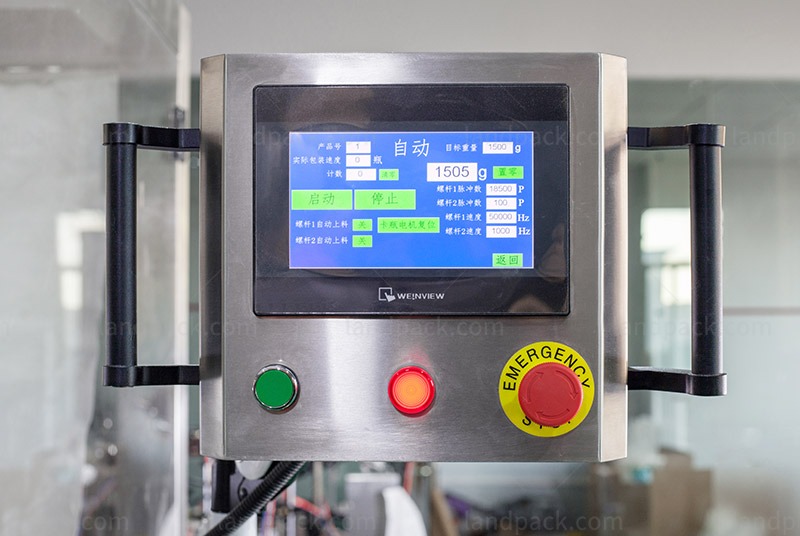

♦ We use famous brand Siemens PLC, Schneider electric, more steady

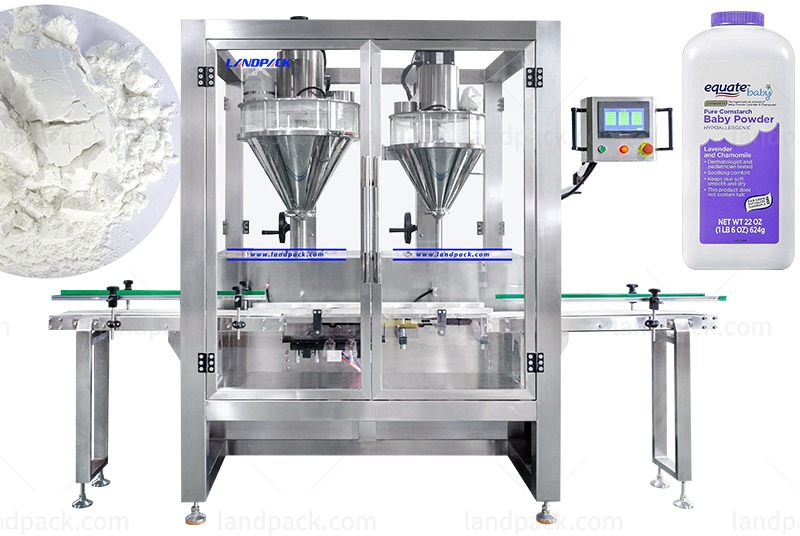

| Multifunction Automatic Powder Filling Machine 99.9% Filling Precision (LF-PJ-02) | ||
| Model | LF-PJ-02 | LFP-02 |
| Filling Weight | 10-5000g(customizable) | 10-5000g(customizable) |
| Bottle diameter | Φ30-Φ140mm(customizable) | Φ30-Φ140mm(customizable) |
| Bottle height | 50mm-200mm(customizable) | 50mm-200mm(customizable) |
| Yield | 10-20 Bottle/min | 20-40 Bottle/min |
| Measurement accuracy | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) |
| Power | 2.5KW | 5KW |
| Silo capacity | 50L | 50L |
| Power Supply | 220V、50Hz | 220V、50Hz |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Weight | 350kg | 550kg |
