Application :

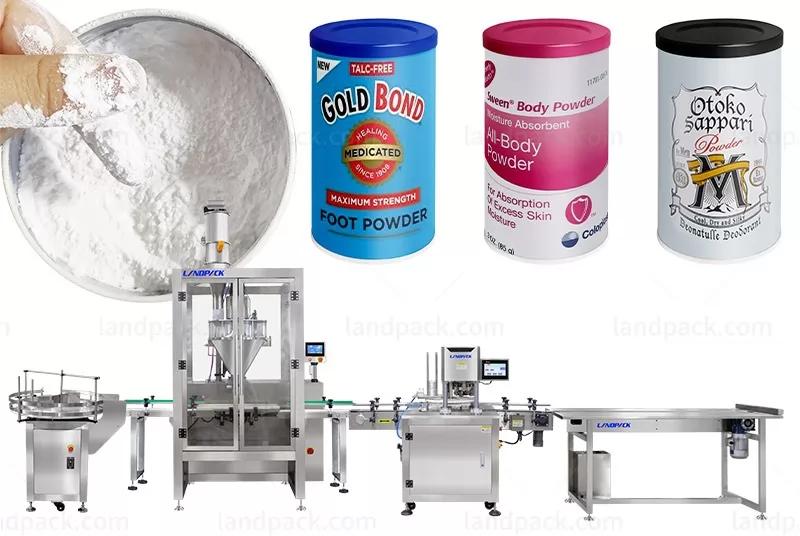

The Can Tin Bottle Powder Filling Line is a highly efficient and versatile system designed for the quantitative weighing and filling of a wide range of powdered products, spice powder, including talcum powder, chemical powder, coffee powder, coconut powder, soup powder, milk powder, cocoa powder, chili powder, and more.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1.The production line operates smoothly with minimal noise, is easy to maintain, and fully complies with GMP standards, making it suitable for pharmaceuticals, food, cosmetics, and other industries.
2.Equipped with an advanced imported PLC system and a 7-inch touchscreen interface, enabling parameterized control for user-friendly operation.

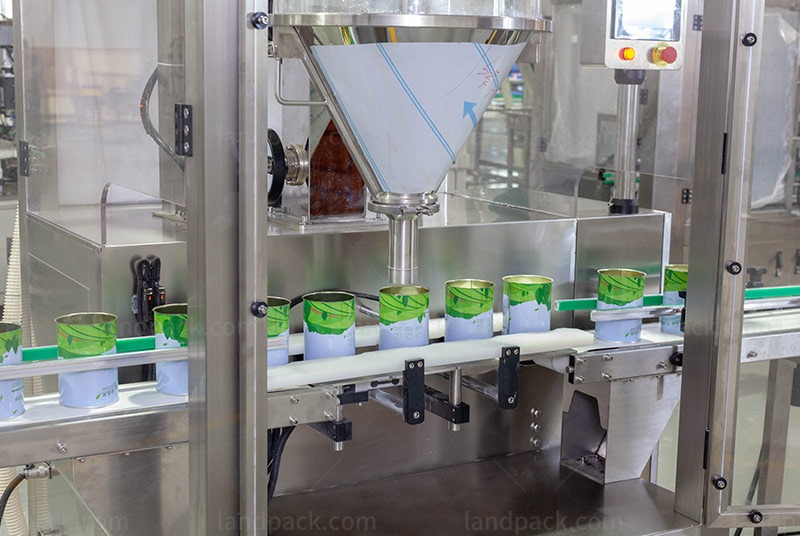

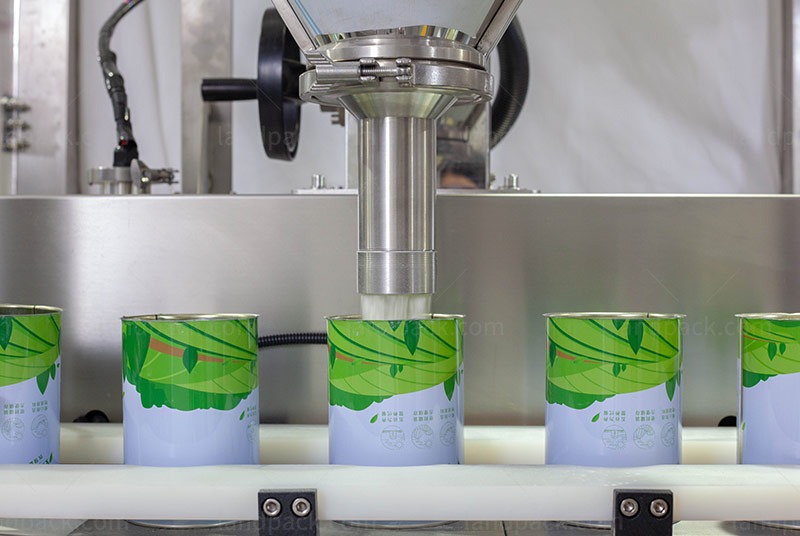

3.Features a single-head powder filling system with an anti-leak and dust-proof mechanism to ensure a clean and efficient process.
4.Designed to handle a filling range of 1-5kg, meeting various production needs.
5.Achieves a filling speed of 10-20 bottles per minute, optimizing production efficiency.
6.Ensures high precision and consistency in powder filling, reducing material waste and enhancing product quality.
| Automatic powder weighing filling machine | |||
| Model | LFP-01（Single Head Powder Filling） | LFP-01（Single Head Powder Filling） | LFPD-50-30（Double Head Powder Filling） |
| Filling Weight | 10-5000g(Replace screw specifications) | 10-5000g(Replace screw specifications) | 100-2000g |
| Bottle diameter | Φ30-Φ140mm(Could be customized) | Φ30-Φ140mm(Could be customized) | Φ60-Φ135mm |
| Bottle Height | 50mm-200mm(Could be customized) | 50mm-200mm(Could be customized) | 601-260mm |
| Capacity | 10-20Bottles/min | 20-40Bottles/min | 10-25bottles/min |
| Measure accuracy | ≤500g,≤±1%；≥500g,≤±0.5% | ≤500g,≤±1%；≥500g,≤±0.5% | 100-1000g,≤±2g；≥1000g,≤±5g |
| Power | 2.5KW | 5KW | 4.5KW |
| Hopper Capacity | 50L | 50L | 50L，30L |
| Power | 220V,50HZ | 220V,50HZ | 220V,50HZ |
| Voltage | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Weight | 350kg | 550kg | 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
