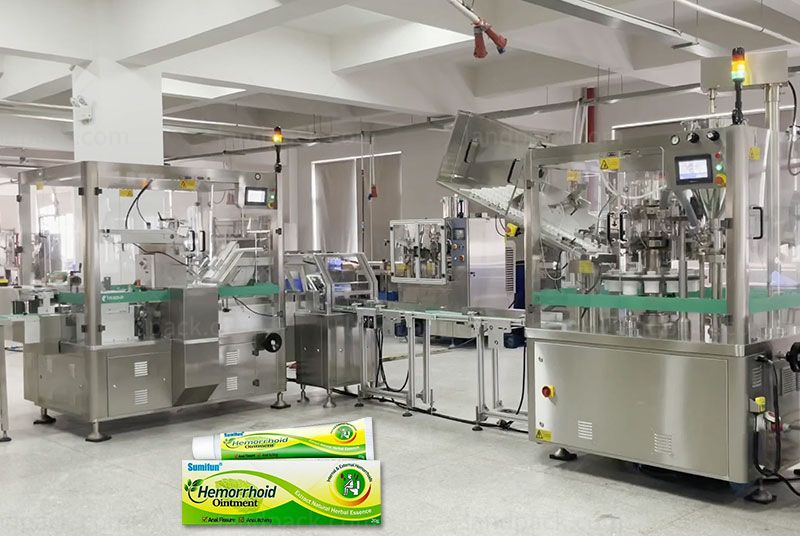

Fully Automatic Liquid Plastic Soft Tube Filling Sealing Cartoning Machine Production Line

Application:

Suitable for filling medicine, daily chemical, food, chemical, cosmetics and other industries, such as toothpaste, cosmetic cream, lotion, ointment, adhesive, AB glue, skin cream, hair dye, and other liquid or paste-like materials filling and sealing.

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:

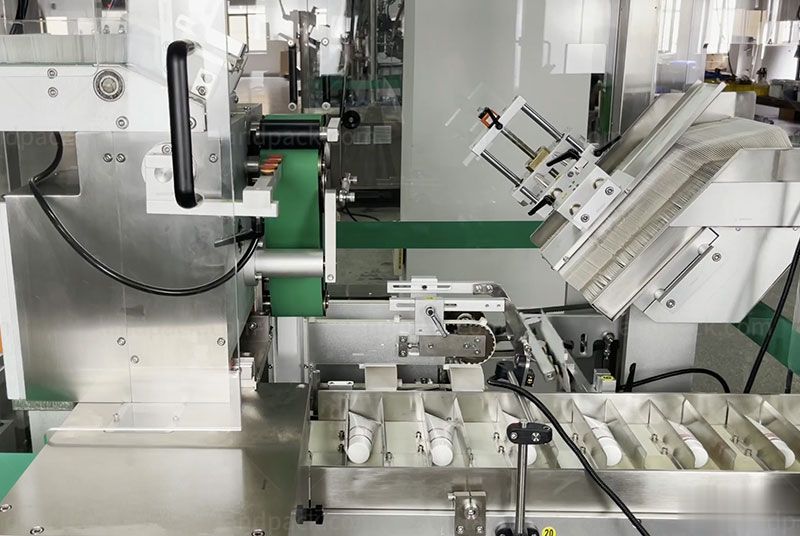

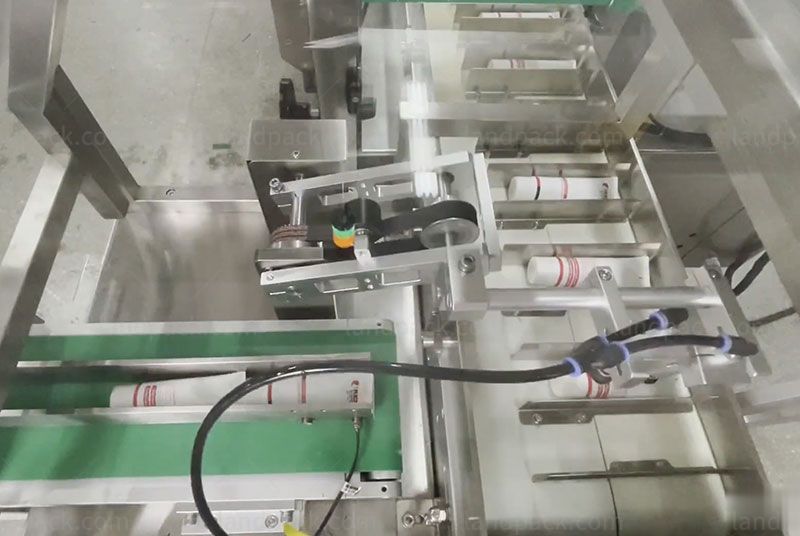

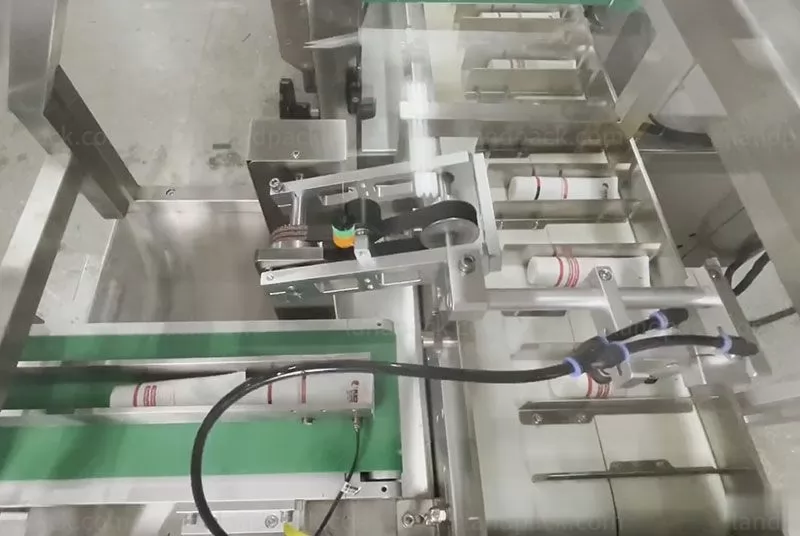

1.It adopts PLC, human-machine interface operation panel, and it can automatically execute tube supply, make photoelectric register, fill and seal boxes, output finished products, fold instruction Paper, open boxes, feed objects into boxes, print batch numbers (including manufacture date), and seal boxes edge.

2.The driving system is closed under the working table, safe and non-pollution.

3.Material contact parts used SUS316L material, easy to clean and meet GMP requirements.

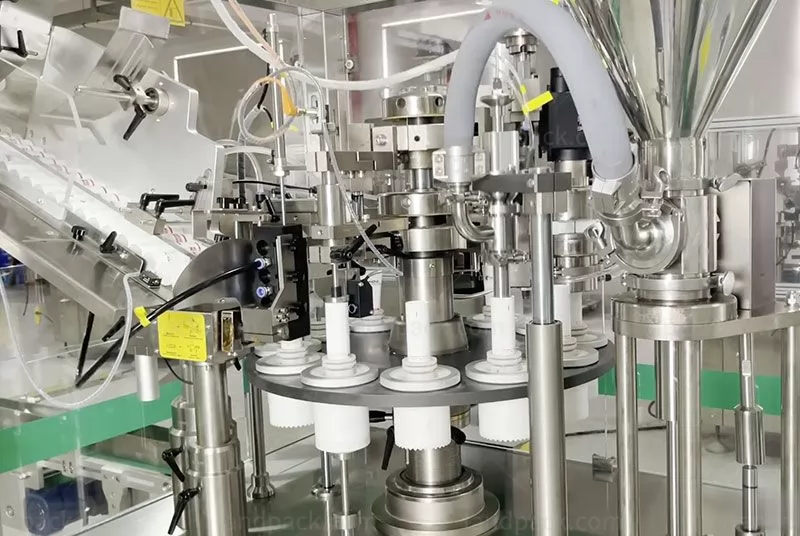

4.Filling sealing parts are installed on the working table, half-closed and transparent, and easy to maintain.

5.Cam driving, high accuracy, high speed.

6.Tube orientation is controlled by photocell for accurate positioning of tubes.

7.Automatic printing date

8.No tube no filling function.

9.Automatic counting and E-stop.

10.Heating and mixing function, protection cover.
