Application:
Suitable for filling medicine, daily chemical, food, chemical, cosmetics and other industries, such as toothpaste, cosmetic cream, lotion, ointment, honey, adhesive, AB glue, skin cream, hair dye, and other liquid or paste-like materials filling and sealing.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1.Mitsubishi or Siemens PLC control system with easy to use touch screen control panel with GMP design and standard.
2.No bottle no leaflet, no bottle no carton features and the carton without a leaflet will be rejected automatically.
3.It has automatic tube positioning and identification function. It automatically identifies the front and back sides by the color mark.
4.The cartooning machine also includes batch number printing.
5.Easy to adjust from one carton size to another without extra parts.
6.Cold glue closure can be incorporated by purchasing a separate glue dispenser.
7.Custom design is available.

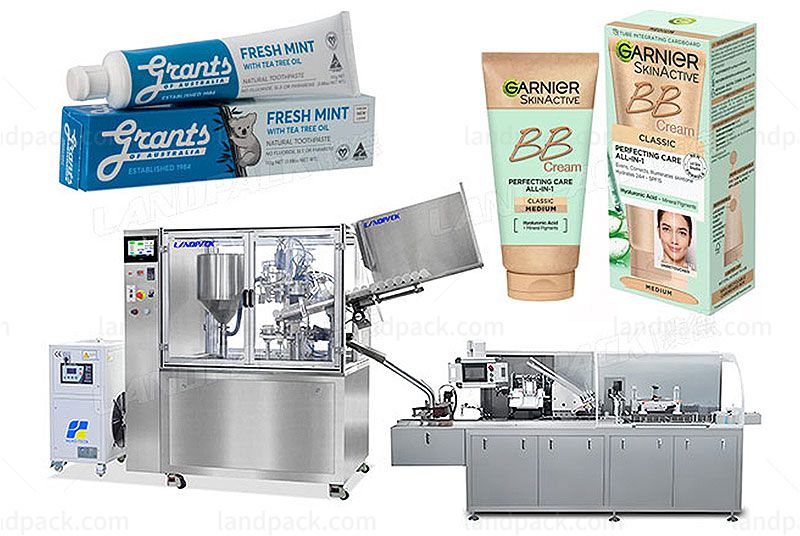

| Fully Sutomatic Tube Filling And Sealing Machine Parameters | |
| Model | LFF-GFW-00 |
| Yield | 20-40 bottles/min |
| Pipe Diameter | Φ10mm-Φ50mm (Customizable) |
| Tube Height | 20mm-250mm (Customizable) |
| Control system | PLC |
| Power supply | 220V, 50Hz |
| Airconsumption | 0.3 m³/min |
| Dimension | 2180mm*930mm*1870mm(L*W*H) |
| Equipment Material | 304 |
| Weight | 700KG |
| Fully Automatic Cartoning Machine Parameters | |
| Max.size of carton | L200*W150*H70mm |
| Min.size of carton | L50*W25*H14mm |
| Max.size of leaflet | L260*W180mm |
| Min.size of leaflet | L100*90mm |
| Running speed | 50-120 cartons per minute |
| Air consumption | 20m³/h(pressure 0.6-0.8Mpa) |
| Voltage | AC208-415V 3phase 50/60Hz |
| Power | 1.5KW |
| Dimensions | L3700*W1350*H1700 mm |
| Weight | 1800KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
