Application:
Suitable for weighing and packing fresh sliced vegetables and fruit, such as lemons, lettuce, apples, onions, leafy, watercress, asparagus, corn, Chinese cabbage, peppers, cucumbers, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

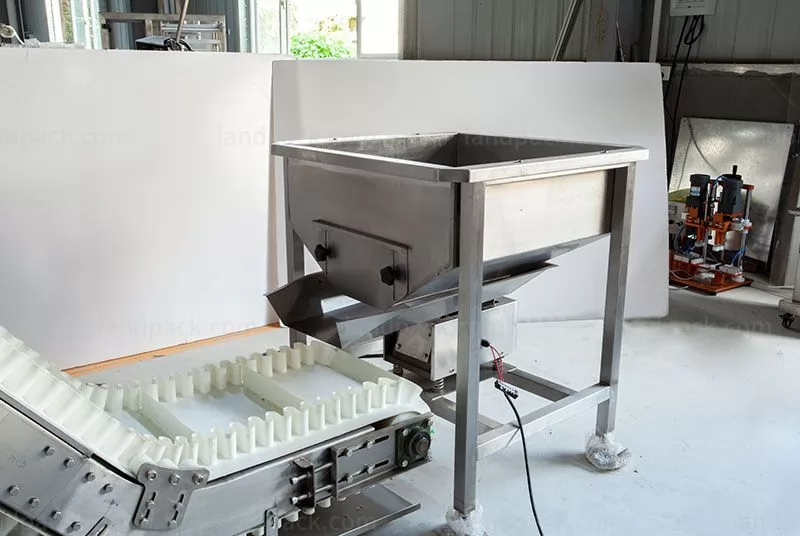

1. Big Bucket Elevator: Made from food-grade material, designed for easy cleaning.

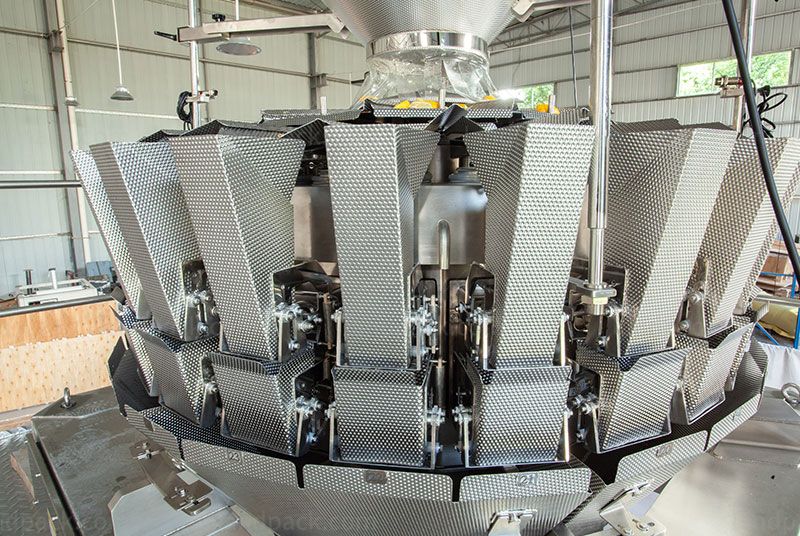

2. Custom 24-Heads Weigher: Features dimple plate material with a V-shape design, tailored for fresh lemon slices, ensuring high accuracy.
3. Upgraded Main Packing Machine: Equipped with servo control for horizontal sealing, increasing system speed to 60-80 bags per minute.

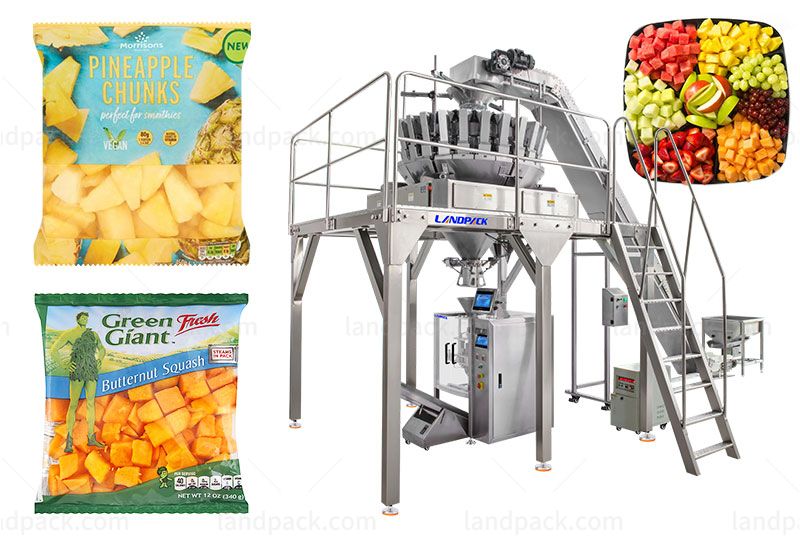

Workflow:
1. Big bucket elevator for feeding
2. 24 heads weigher for automatic weighing

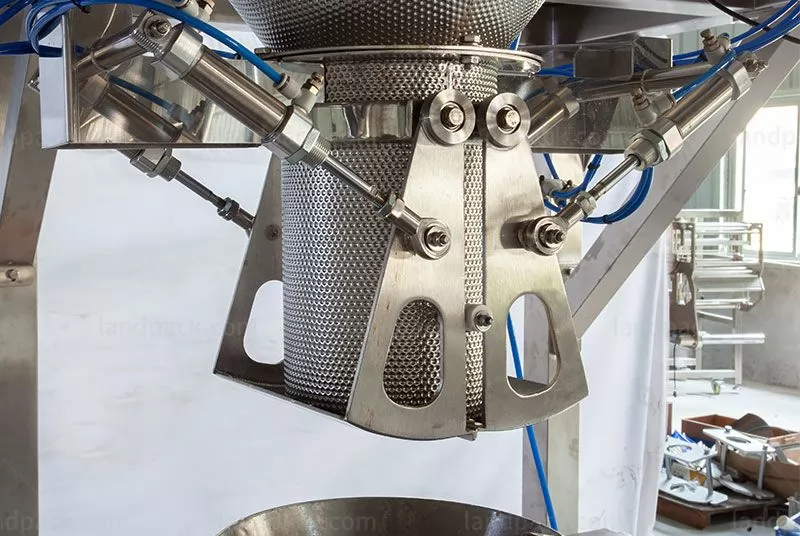

3. Double door filling hopper
4. LD-420 main packing machine automatically makes bags and packing
5. Finish conveyor for conveying finished product
| Model | LD-420A |
| Dosing Method | 24 head weigher |
| Packing speed | 60-80 bags/min |
| Bag size range | L: 80-300mm; W: 60-200mm |
| Bag Seal type | Stick/pillow |
| Cut type | A: Teeth cut; B: Straight cut, C: Round cut, D: lrregular cut (Stick width within 40mm) |
| Film thickness | 0.05 -0.1mm |
| Film material | Laminated film such as paper/PE, aluminum/PE, PAPE, PETPE, filter paper |
| Drive method | Electricity + Pneumatic |
| Control style | PLC control system+English / Chinese screen (Or customized panel) |
| Power | 1.8 KW |
| Power supply | AC220V, 1phase, 50Hz/AC380V, 3phases, 50Hz |
| Air consumption | 0.4cbm/min, 0.8Mpa |
| Dimension | 1250*1220*1780 mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
