Application:

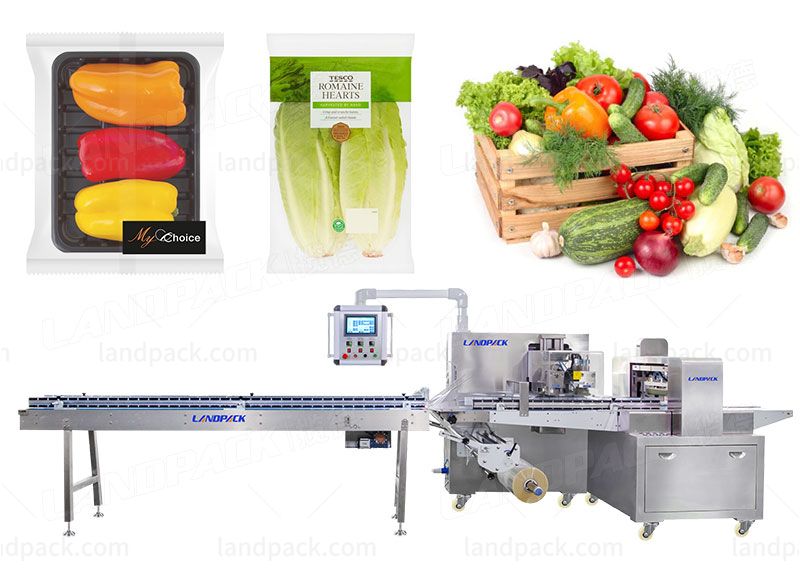

Suitable for packaging various vegetable, such as lettuce, lettuce, leafy, watercress, asparagus, corn, Chinese cabbage, peppers, cucumbers, onions, etc. Packaging speed is faster than ordinary pillow flowpack packing machine.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
1. Removable touch screen.

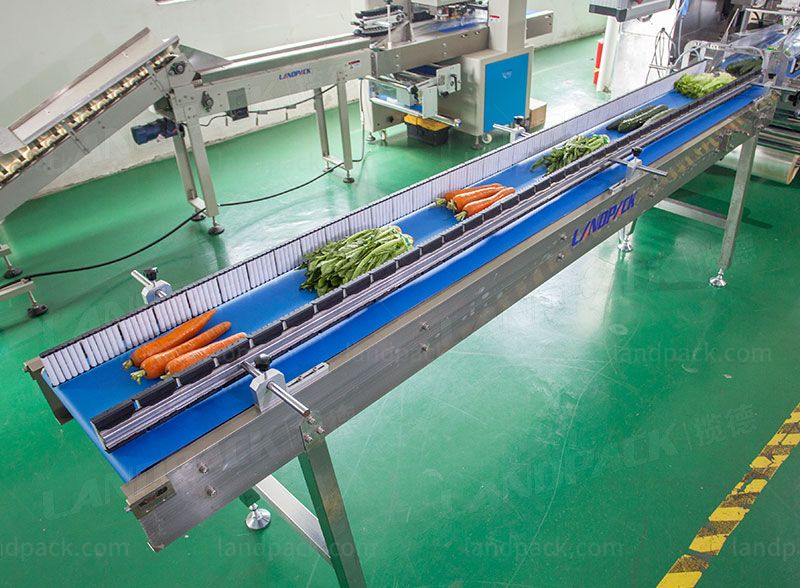

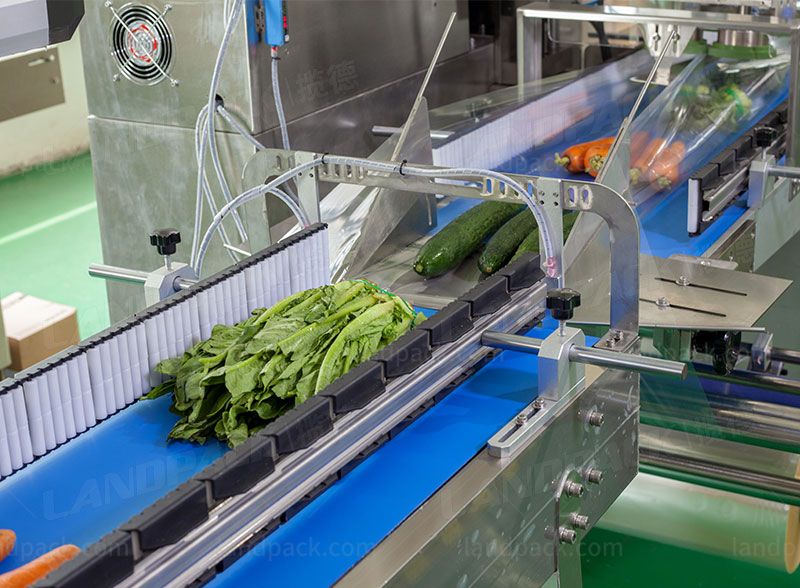

2. Belt feeding.
3. Optical fiber detection.
4. Indeterminate length cutting.

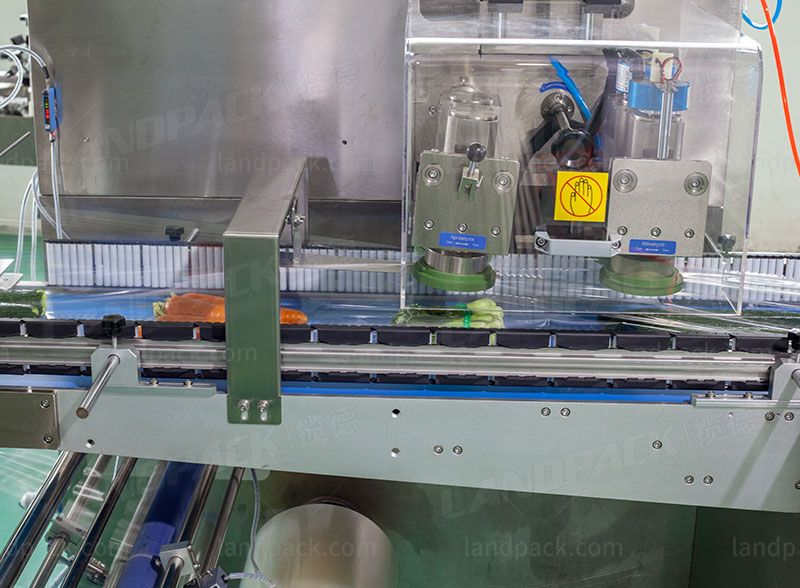

5. Reciprocating tool holder.
6. Film pulling wheel and cutter are coated with Teflon.
Workflow:
1. Smart HIMD
2. Feed The Raw material Manual
3. Pulling the Film and Bag Forming
4. Reciprocating Cutting
5. Sealling the Bag
| Type | LP-450W | LP-600W | LP-700w |
| Film width | Max.450mm | Max.600mm | Max.700mm |
| Bag length | 120-450mm | 120-450mm | 120-450mm |
| Bag width | 50-160mm | 50-200mm | 50-350mm |
| Product height | 10-80mm | 10-80mm | 10-80mm |
| Film roll diameter | Max.320mm | Max.320mm | Max.320mm |
| Packaging rate | 20-80 bag/min | 20-80 bag/min | 20-80 bag/min |
| Power | 220V 50/60Hz,3.2kw | 220V 50/60Hz 3.6kw | 220V 50/60Hz 4.2kw |
| Machine size | (L)4380*(W)870*(H)1500mm | (L)3990*(W)970*(H)1500mm | total length 4030mm* total width 980mm* total height 1500mm |
| Machine quality | 960kg | 1160kg | 14500KG |
| Remarks | Reciprocation end sealing system, with angle folding device | ||
| Film material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/ CPP/ Aluminum Coating Film/ Aluminum Film | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
