Application:
Perfect for accurately weighing and packing fresh sliced vegetables and fruits, including lemons, lettuce, apples, onions, leafy greens, watercress, asparagus, corn, Chinese cabbage, peppers, and cucumbers. Ensures freshness and quality in every pack, ideal for produce packaging.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

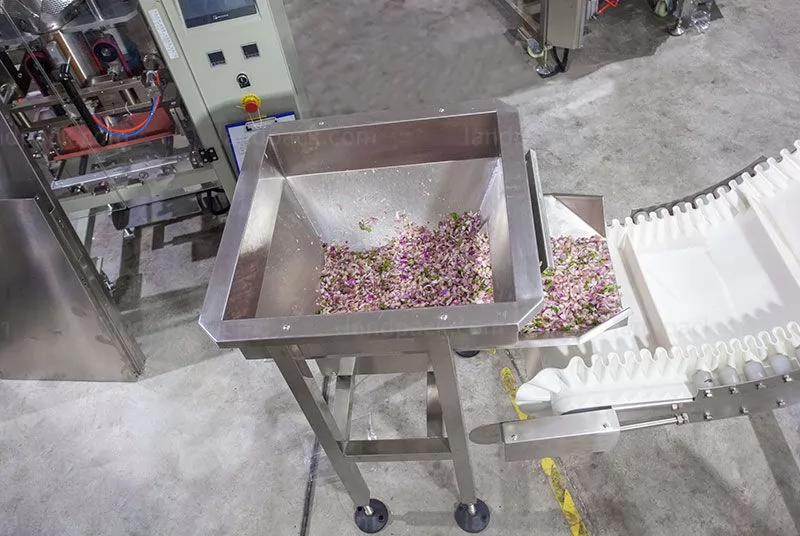

1. Large Bucket Elevator: Made from food-grade material, designed for easy cleaning to maintain hygiene standards.

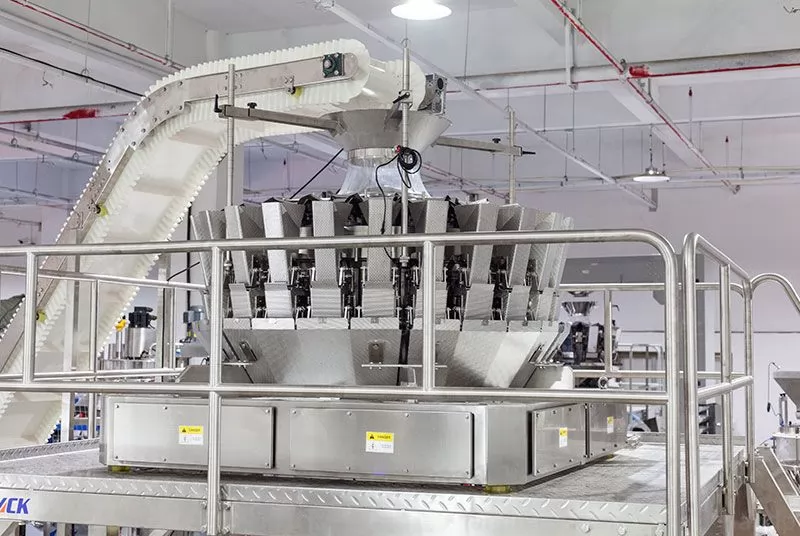

2. 24-Heads Weigher: Constructed with dimple plate and V-shape design to enhance weighing precision and ensure high accuracy.

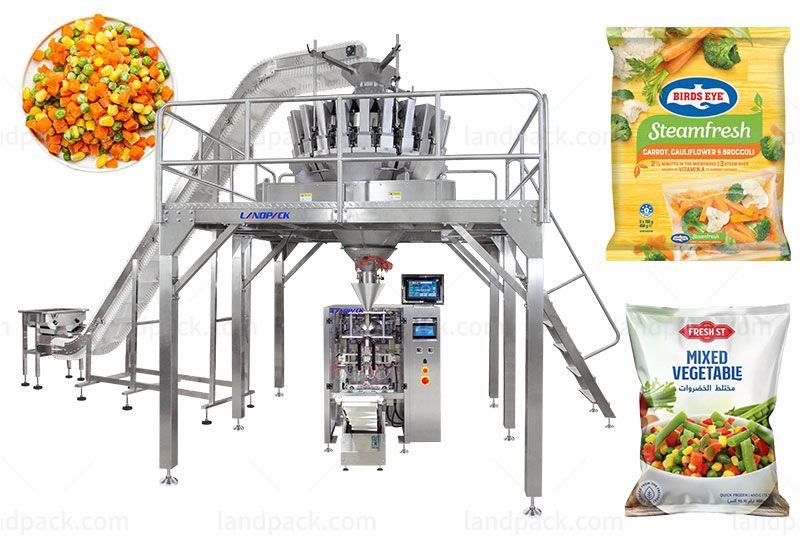

Workflow:
1. Big bucket elevator for feeding
2. 24 heads weigher for automatic weighing

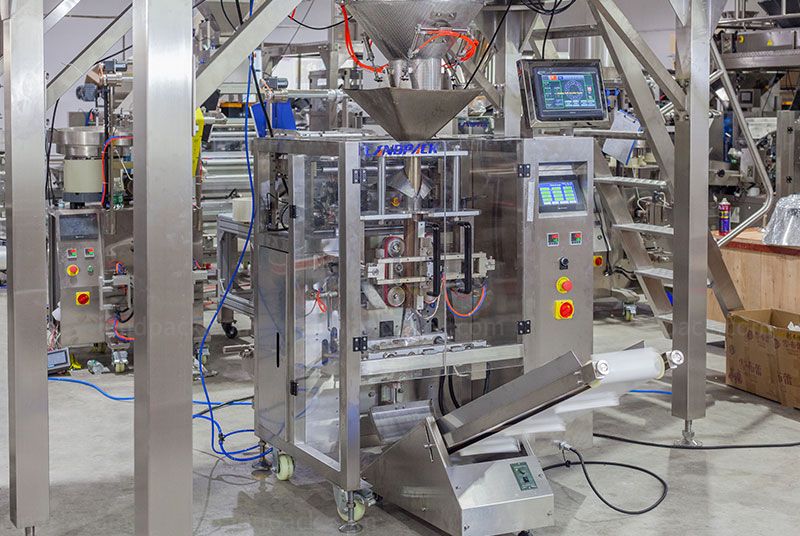

3. LD-420 main packing machine
4. Automatic making bags and packing
5. Finish conveyor for conveying finished product
| Model | LD-420A |
| Dosing Method | 24 head weigher |
| Packing speed | 60-80 bags/min |
| Bag size range | L: 80-300mm; W: 60-200mm |
| Bag Seal type | Stick/pillow |
| Cut type | A: Teeth cut; B: Straight cut, C: Round cut, D: lrregular cut (Stick width within 40mm) |
| Film thickness | 0.05 -0.1mm |
| Film material | Laminated film such as paper/PE, aluminum/PE, PAPE, PETPE, filter paper |
| Drive method | Electricity + Pneumatic |
| Control style | PLC control system+English / Chinese screen (Or customized panel) |
| Power | 1.8 KW |
| Power supply | AC220V, 1phase, 50Hz/AC380V, 3phases, 50Hz |
| Air consumption | 0.4cbm/min, 0.8Mpa |
| Dimension | 1250*1220*1780 mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
