Application:
It is suitable for packaging small aquatic animals such as baby shrimp, ornamental fish, spectacular fish, aquarium fish, live fish, mini fish, turtles, jellyfish, and clownfish, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Examples
1. Fish Packing with Water: Efficiently packs fish in water, ensuring freshness and product quality.
2. Gear Pump Filling System: High-accuracy water filling using a gear pump for precise measurement and control.
3. Air Inflation Device: Incorporates air inflation to optimize packaging integrity and product presentation.
Work Flow:

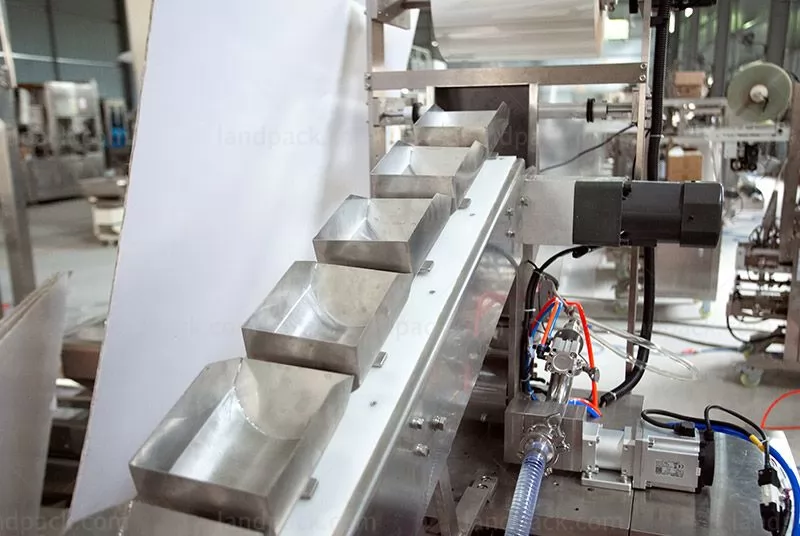

1. Using Chain bucket for feeding the fish

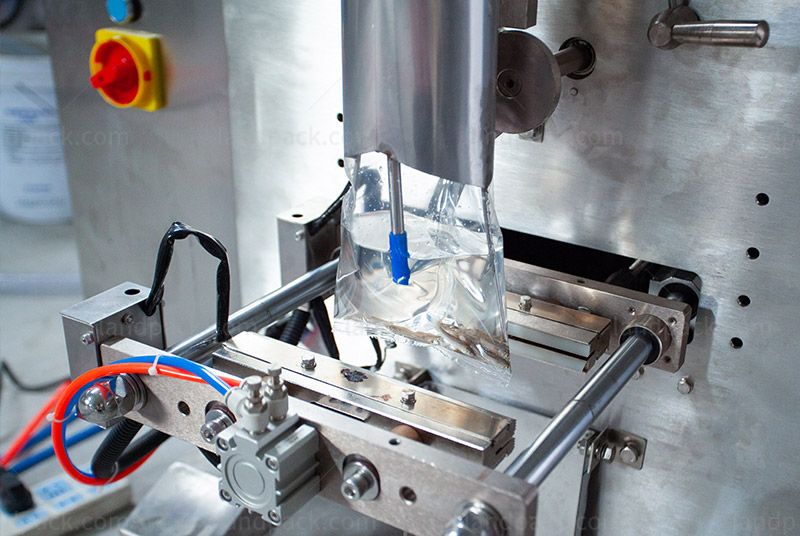

2. Feeding and Measuring the liquid by Gear pump

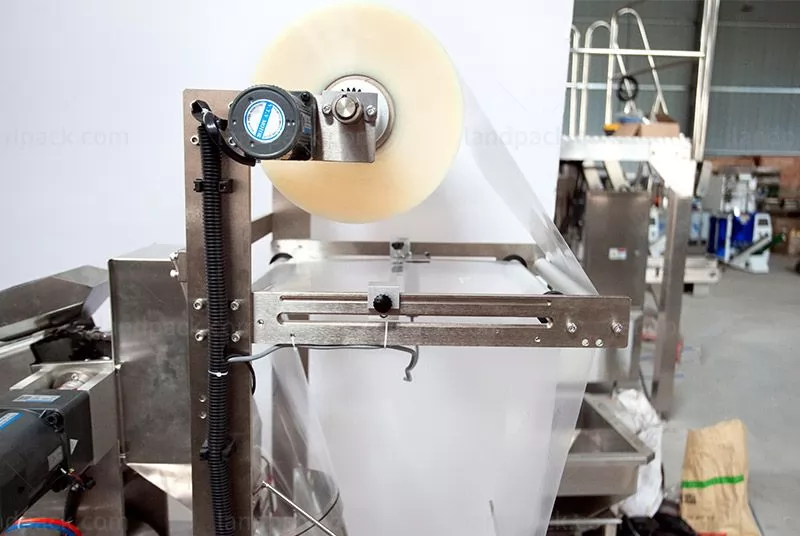

3. Film Wrapping And Bag forming
4. Fill air into bag
5. Heat sealing
6. Outlet

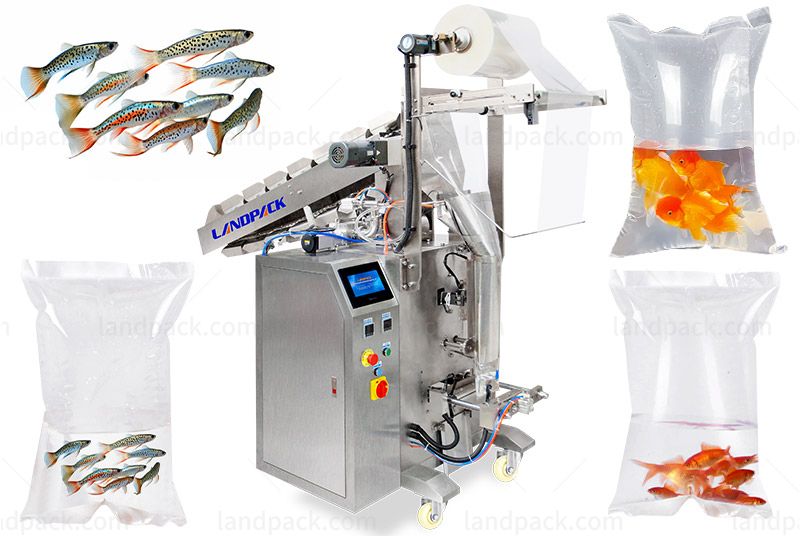

| Model | LD-380B |
| Production capacity | 5-50 bags/min |
| Diameter of film roll | Max. 320mm |
| Packaging film width | 180-380mm |
| Outer bag size | Longest 280mm widest 180mm product packaging |
| Air pressure | 0.5-0.7Mpa |
| Machine noise | less than 80db(A)decibel |
| Heating power | 2.5Kw |
| Total weight of the machine | 450KG |
| Machine size | 1100*800*2150mm |
After receiving your inquiry,We will send you the quotation as soon as possible.
